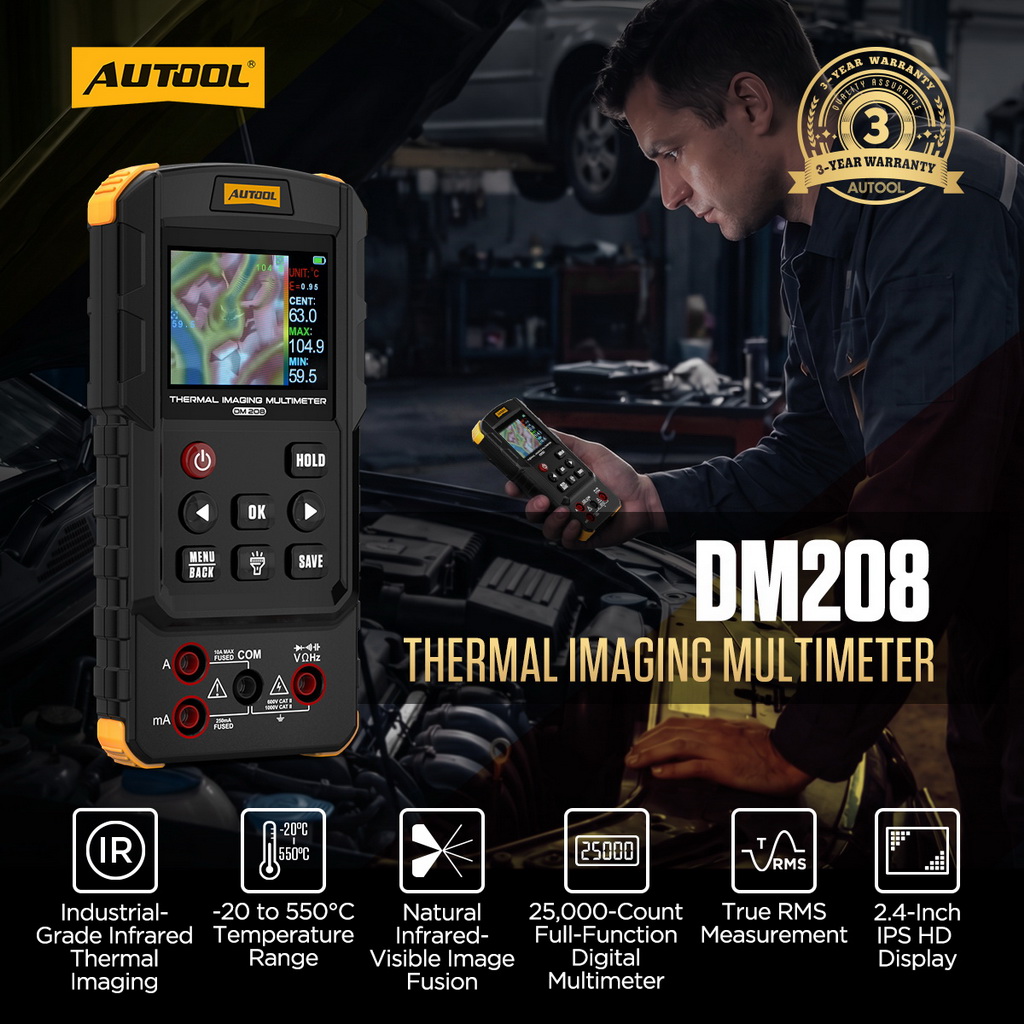

Still struggling to troubleshoot electrical hazards and equipment failures? The AUTOOL DM208 is a multifunctional testing device that combines high-resolution infrared thermal imaging with a high-precision digital multimeter. In multimeter mode, it supports AC/DC voltage and current, resistance, capacitance, frequency, diode, and continuity testing. Equipped with a high-precision 25,000-count display, it can simultaneously show measurement values and waveform curves, meeting the highest demands of electrical testing. The thermal imaging function uses a fusion of infrared and visible light for display, supporting a temperature measurement range of -20 to 550 °C. It can automatically track the highest and lowest temperature points. Whether it’s household sockets, automotive circuit boards, fuse boxes, distribution cabinet wiring, or water pipes, underfloor heating pipes, and leak points, it can quickly pinpoint abnormal hot spots and accurately troubleshoot problems such as poor contact, short circuits, overheating, and component failures.
Main Features and Characteristics

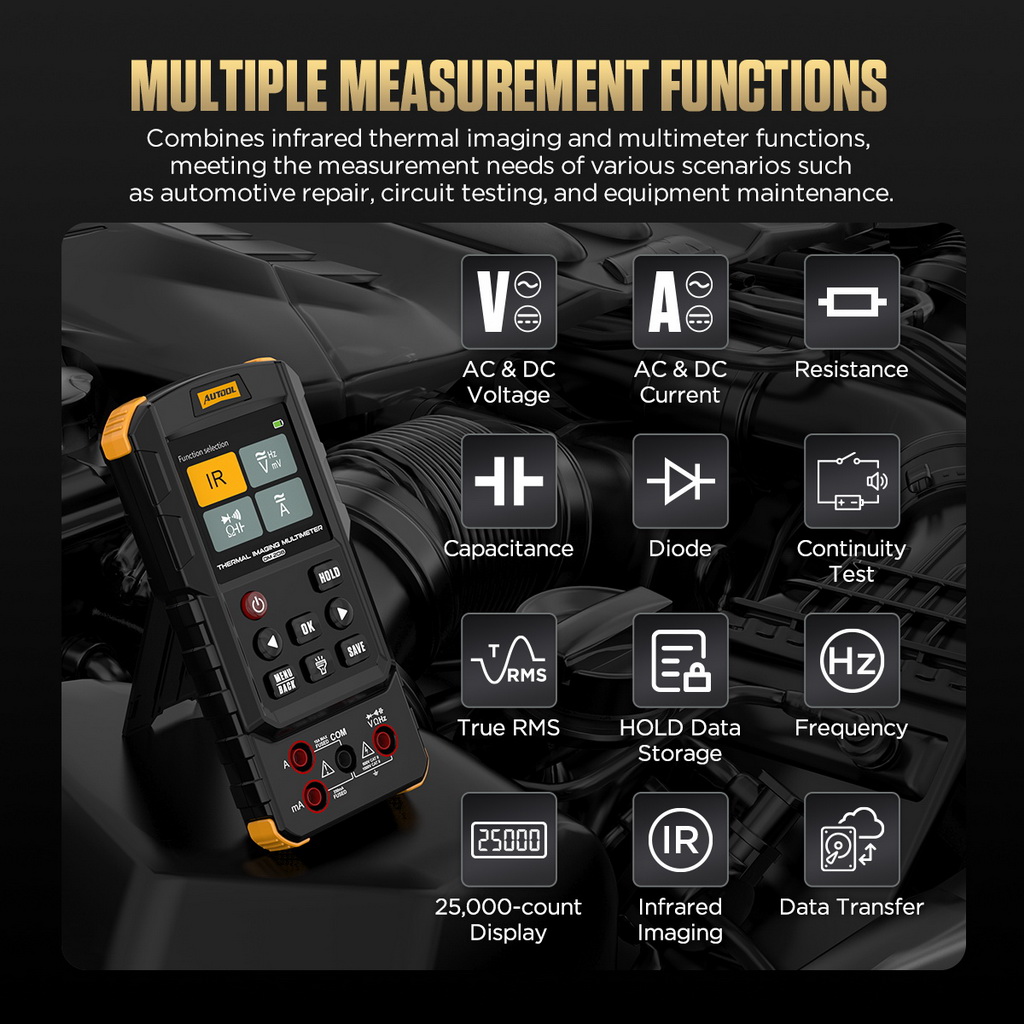

Multiple Measurement Functions
The AUTOOL DM208 combines infrared thermal imaging and multimeter functions in one device. It supports AC/DC voltage and current, resistance, capacitance, diode, continuity, and frequency (Hz) measurements. Featuring TRMS, data hold, and a high-precision 25,000-count 4½-digit display, it also supports data transfer and firmware upgrades.

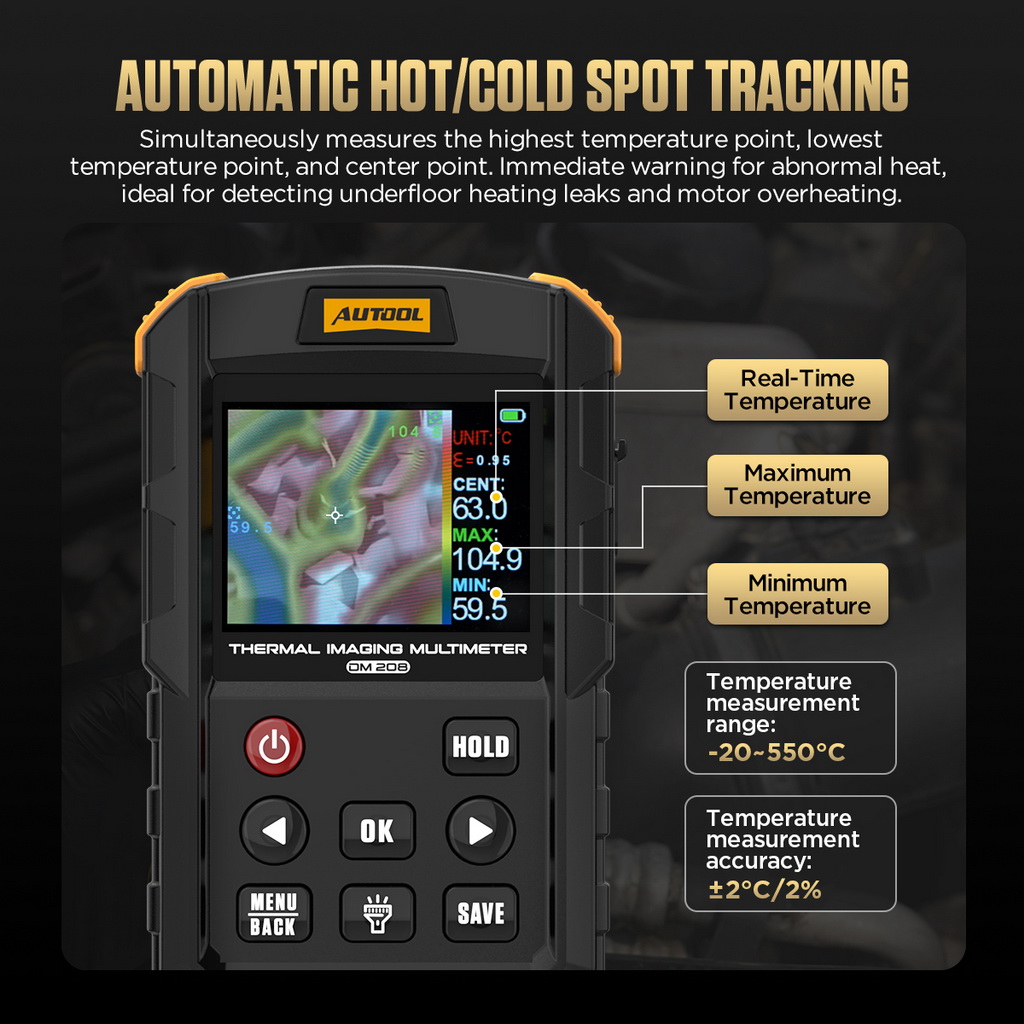

Intelligent Thermal Detection with Automatic Hot/Cold Spot Tracking
The AUTOOL DM208 supports automatic tracking of the highest and lowest temperature points, allowing intuitive comparison of temperature differences across various locations. It can quickly pinpoint abnormal hot spots in areas such as automotive circuit boards and fuse boxes, enabling efficient fault troubleshooting.

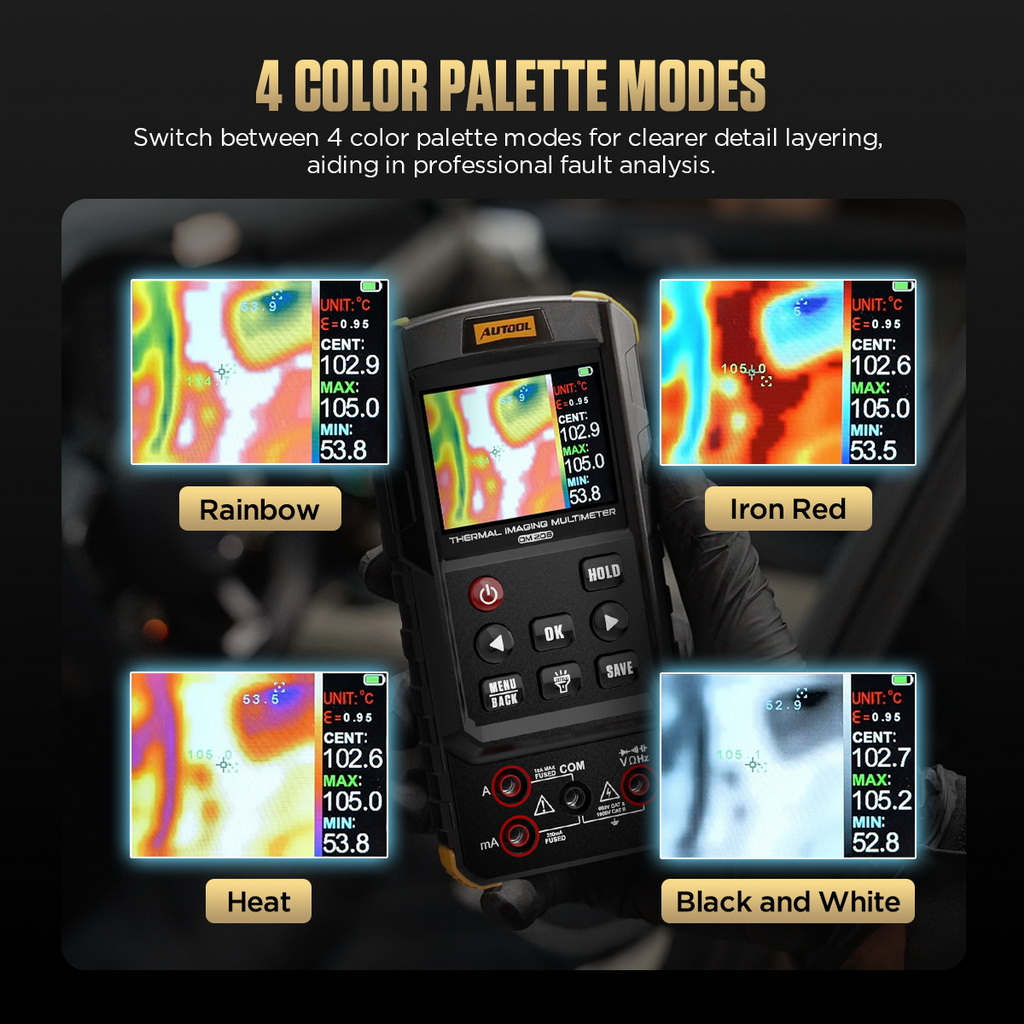

Infrared-Visible Fusion Display with Four Color Palette Modes
The AUTOOL DM208 supports a temperature measurement range of -20 to 550 °C and offers four color palette display modes, meeting the needs of multi-scenario testing and analysis.

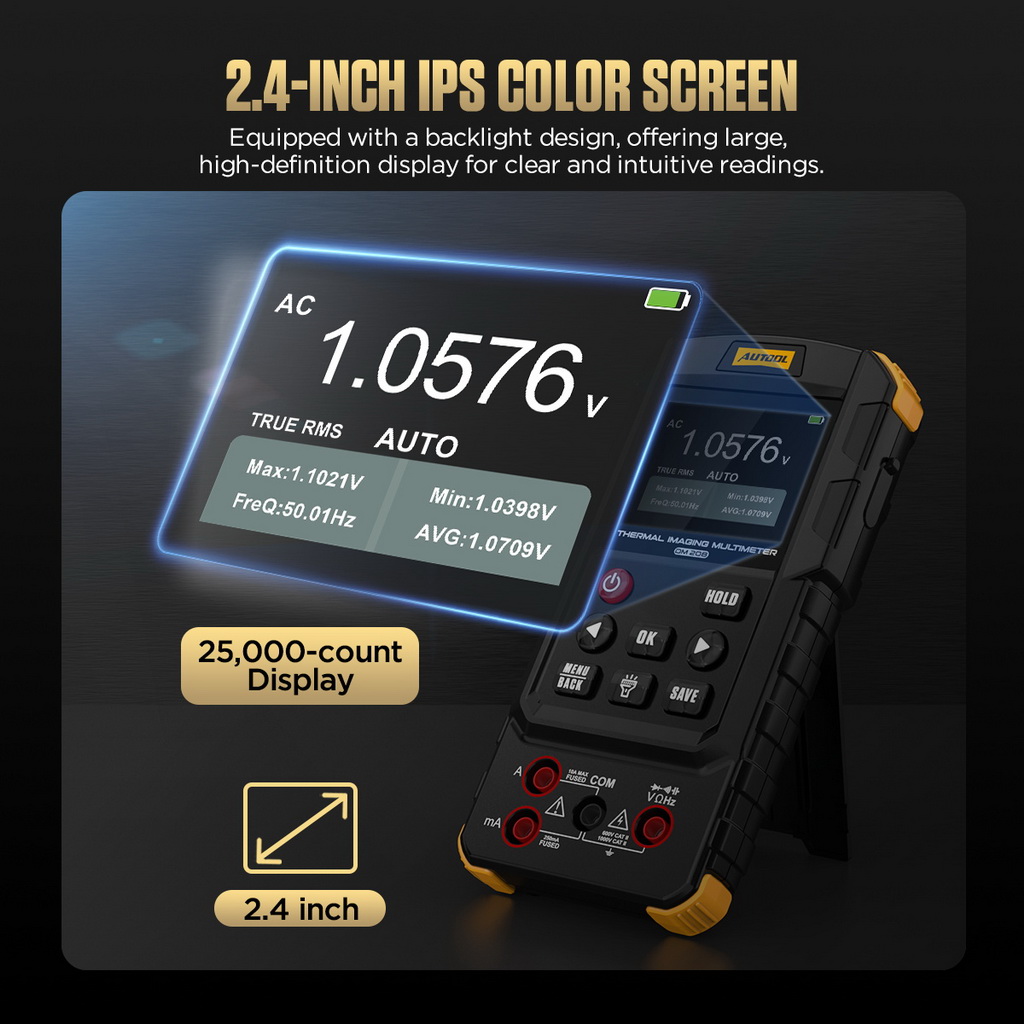

2.4-inch IPS Color Screen
The AUTOOL DM208 features a 2.4-inch backlit display with a 320×240 high resolution. It supports a 25,000-count high-precision display and can simultaneously show measurement values and waveform curves.

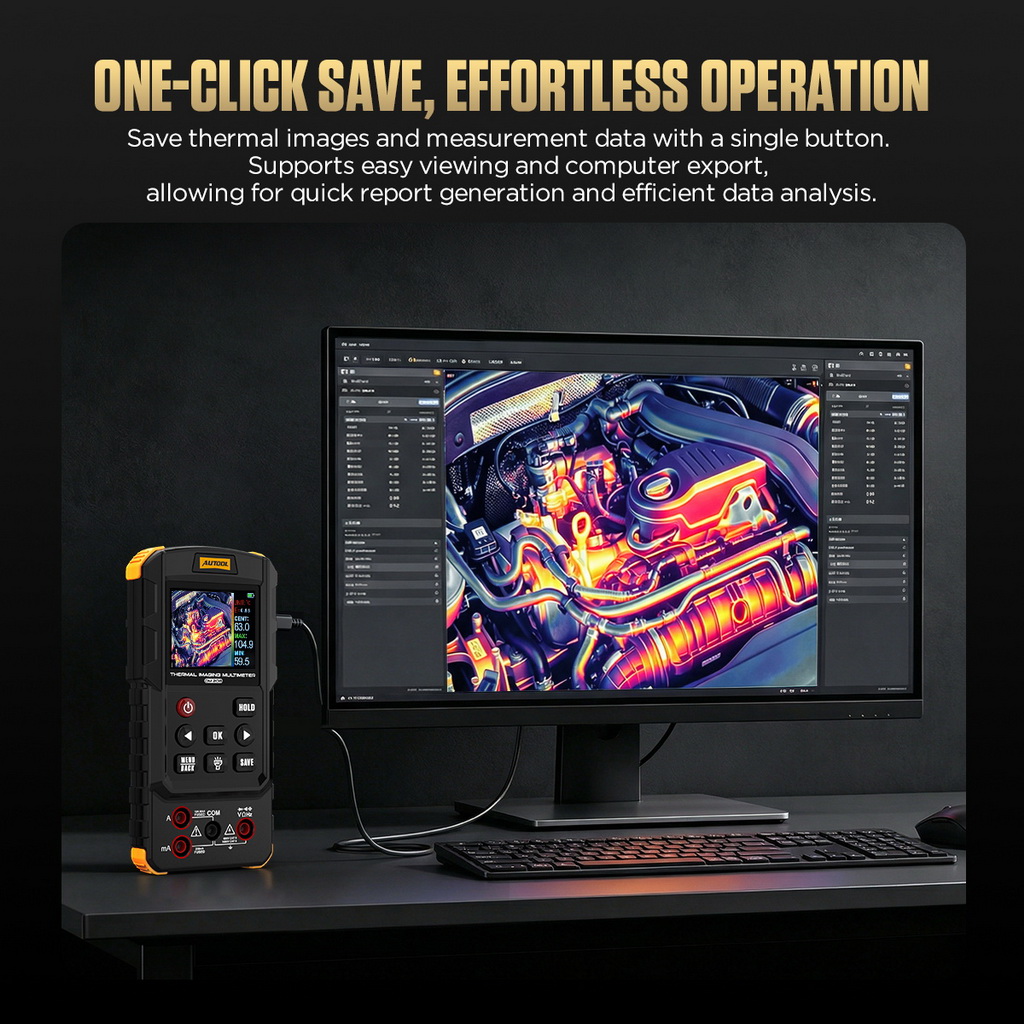

One-Click Image & Data Save
The AUTOOL DM208 allows one-click screenshot saving of thermal images and measurement data, enabling on-device review at any time. It can also be connected to a computer for browsing and analysis, making recording and review more convenient.

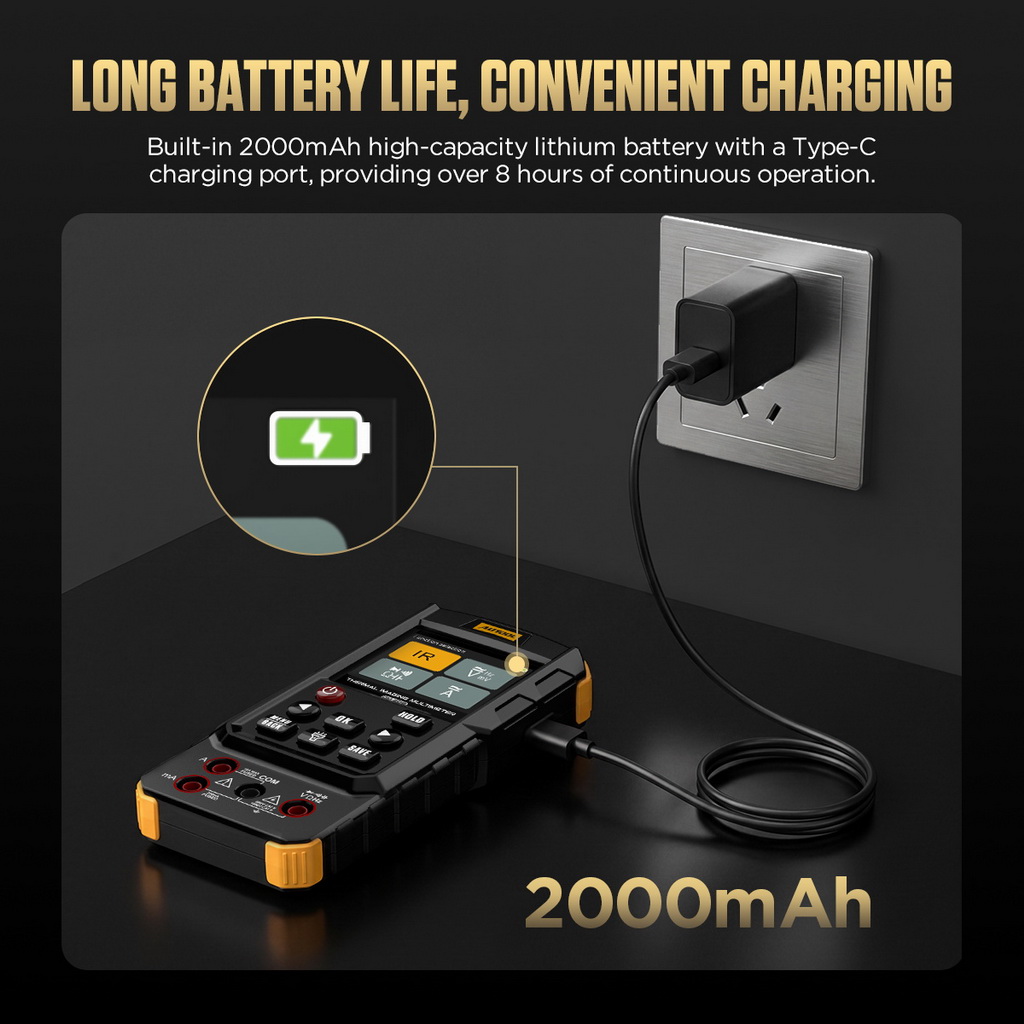

Long Battery Life, Convenient Charging
The AUTOOL DM208 is equipped with a built-in 2000 mAh lithium battery to support long-duration use. It features a Type-C port for fast charging, allowing the battery to be quickly replenished in a short time.
Firmware Upgrade, Efficient and Worry-Free
The AUTOOL DM208 supports one-click firmware upgrades via Type-C connection to a computer, continuously optimizing performance and functionality to keep the device in optimal condition.
The AUTOOL DM208 is an intelligent industrial-grade True RMS digital multimeter with built-in infrared thermal imaging function. It supports real-time thermal scanning and image capture for archiving, quickly identifying potential hazards such as hidden heat sources in circuits, aging wiring harnesses, and abnormal module overheating. It is a professional, all-in-one tool for automotive technicians and electricians.
