Working Principle
AUTOOL SVB408 Car Diagnostic Camera utilizes optical and electronic imaging technologies. The front of the device is equipped with a miniature camera and an LED light source, which illuminates the target area and captures images. The camera transmits the image signal via fiber optics, cables, or wirelessly to a display device. After decoding, the signal is shown in real-time on the screen. Some models support functions such as image magnification, image inversion, and video/photo recording. The flexible probe is bendable, making it suitable for accessing complex, narrow structures. The automotive borescope is widely used for engine wear detection, pipeline blockage inspection, and hidden wiring observation, making it an essential tool for efficient and non-destructive testing.
AUTOOL SVB408 Car Diagnostic Camera Features

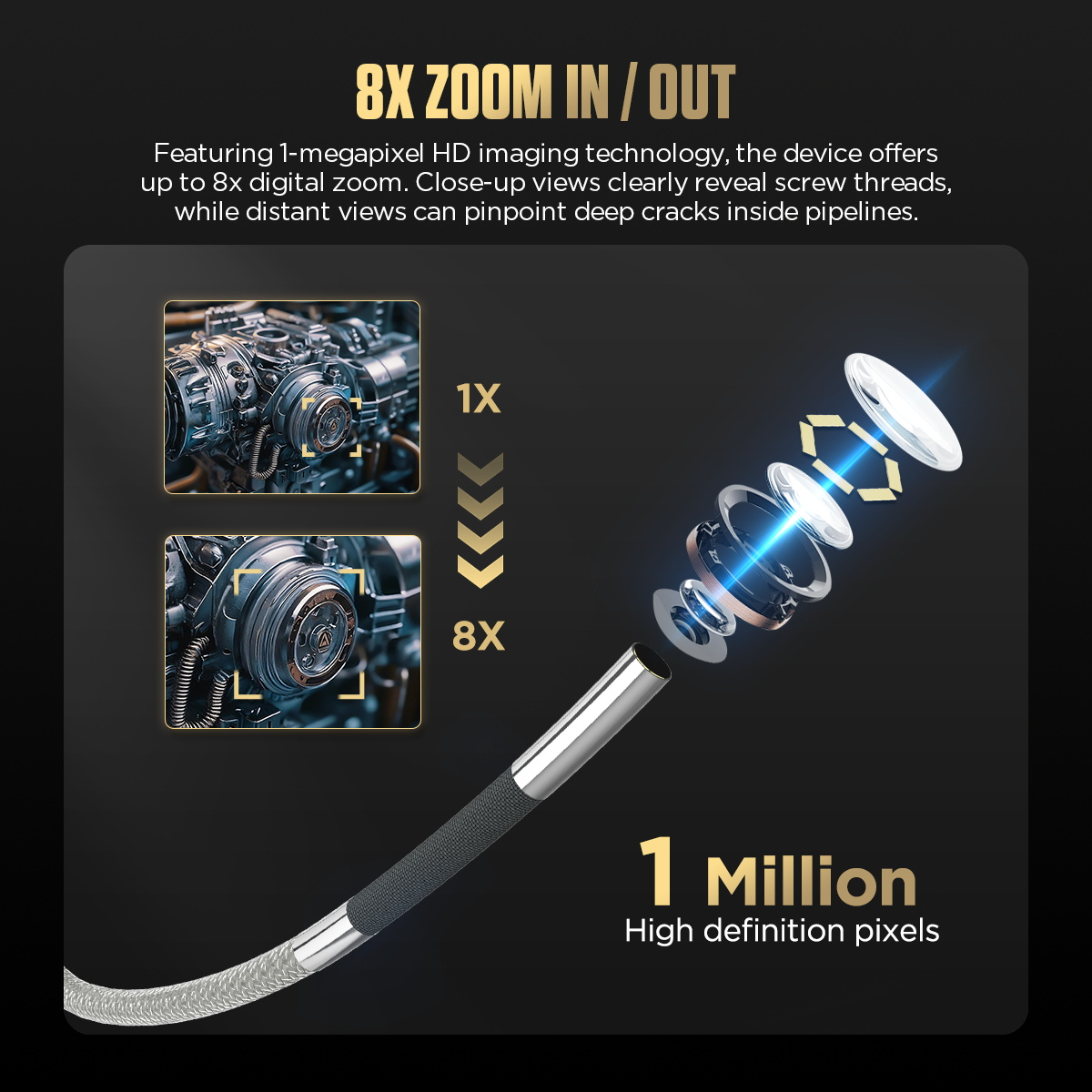

8× Digital Zoom : 1MP HD imaging delivers crystal-clear details, from close-up screw threads to deep pipeline cracks.

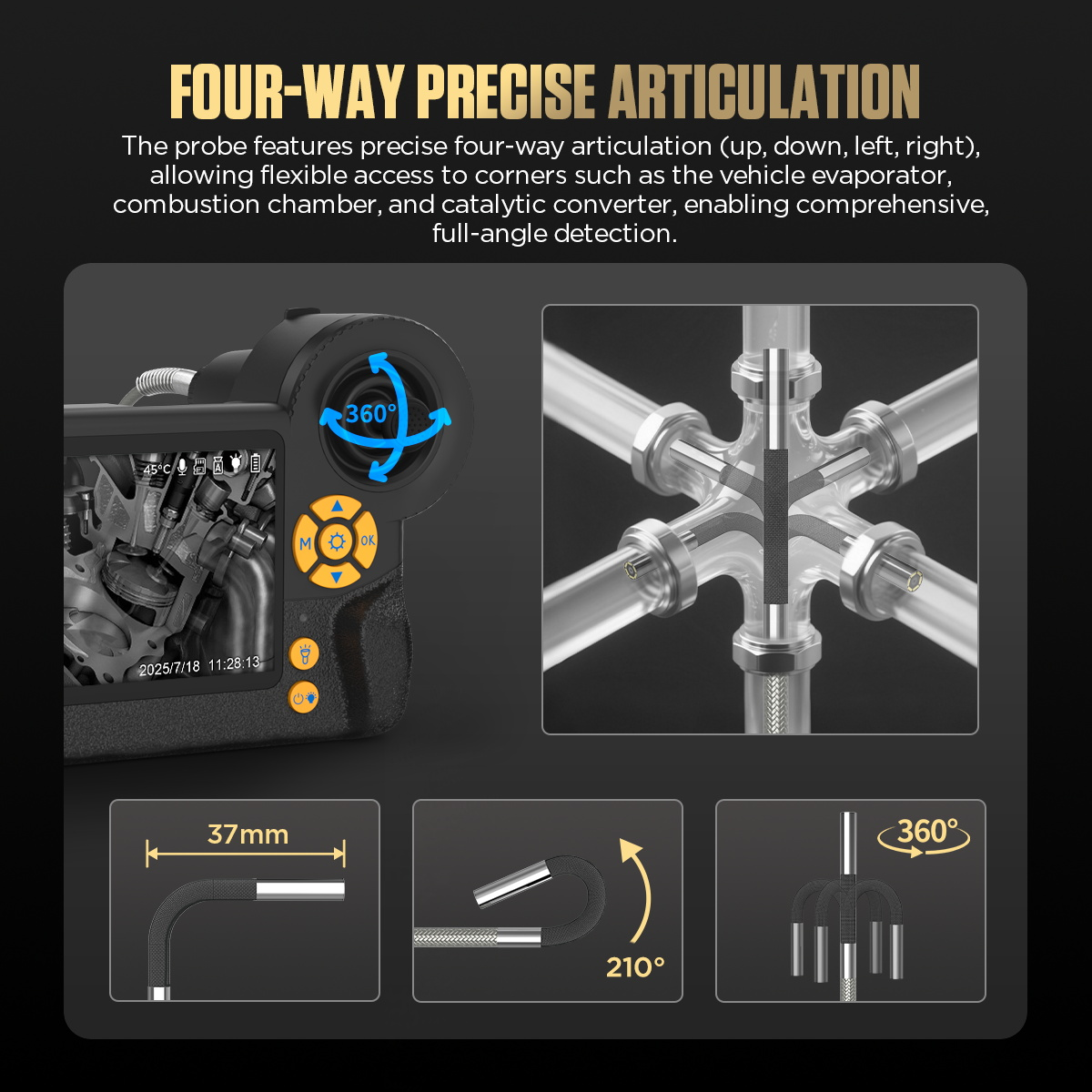

360° Four-Way Rotation: Supports full articulation with 210° bending, enabling comprehensive inspections and covering every corner.
3.9mm Lens Diameter: Ultra-small lens design easily enters engine gaps, pipes, and other narrow spaces for flexible and convenient operation.

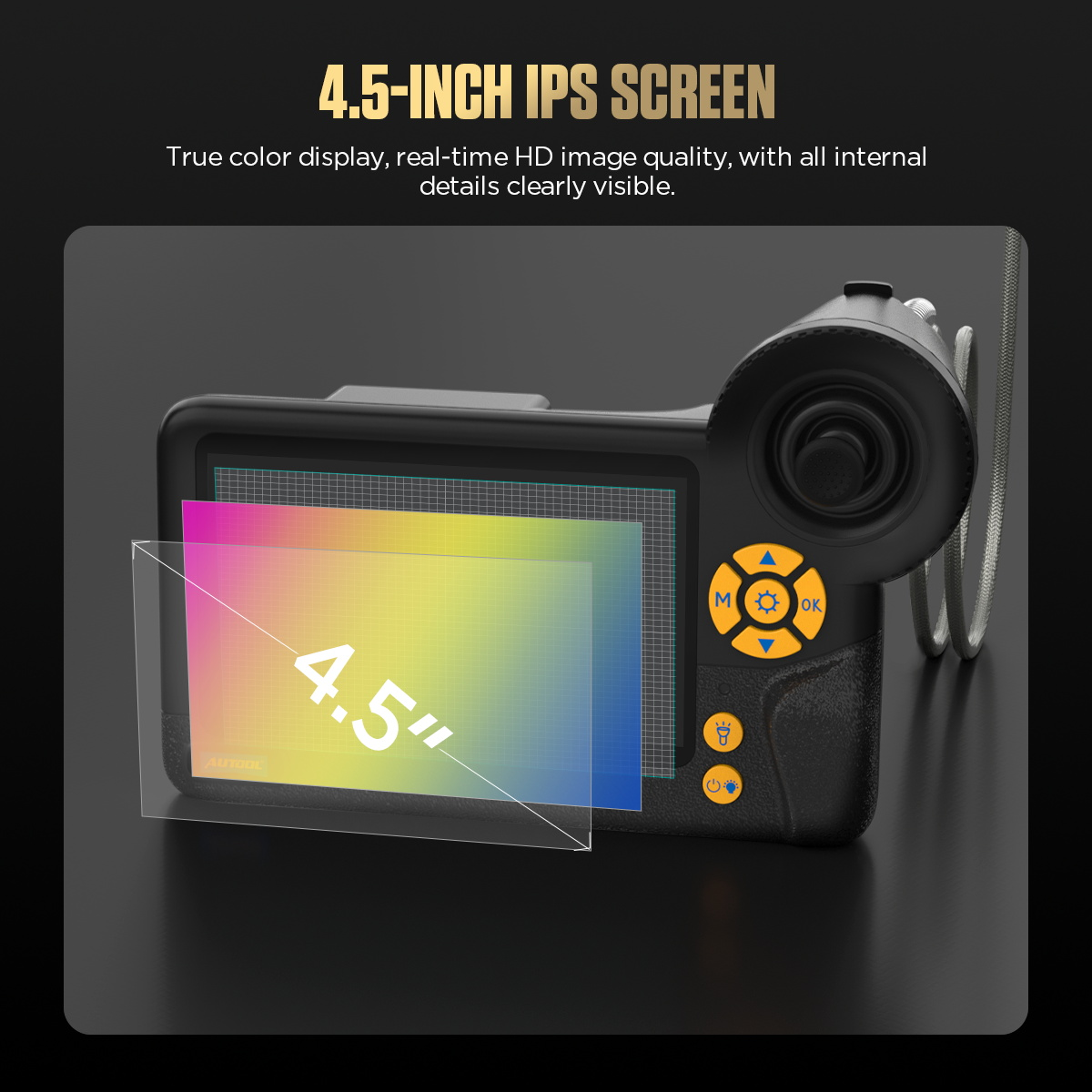

4.5-Inch IPS HD Screen: Equipped with a 1-megapixel camera and up to 8x digital zoom, it delivers crisp images and every detail.
25–100mm Depth of Field: Combined with a 70° field of view, it accurately captures both close-range and mid-range inspection details.
IP67 Waterproof Rating: Built with a wear-resistant metal probe hose, waterproof and durable for use in humid or harsh environments.
1-Meter Flexible Hose: With a minimum turning radius of 37mm, it easily accesses curved pipes and complex spaces.

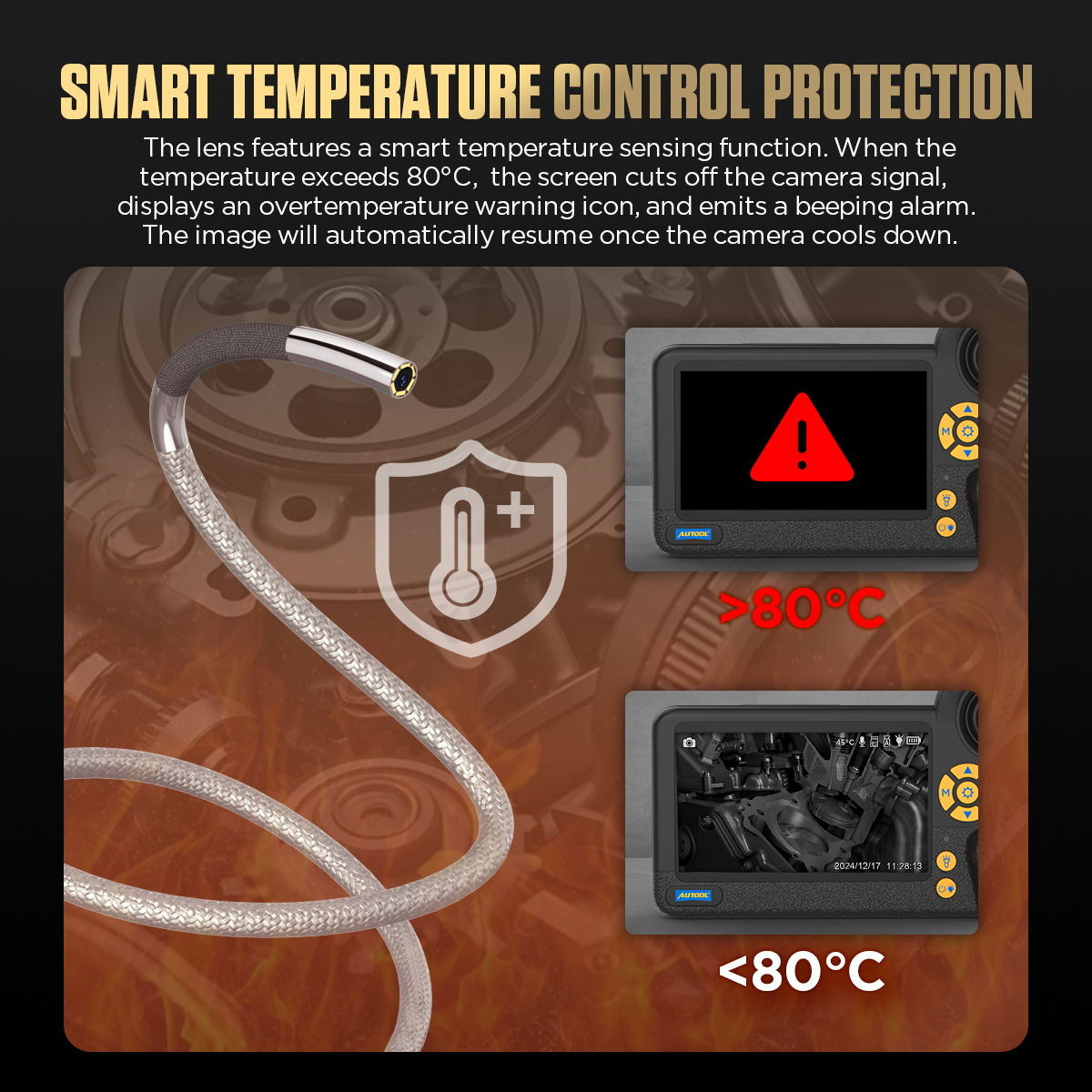

Overheat Protection: Real-time temperature monitoring with 80°C over-temperature alarm ensures safe use and extends device lifespan.

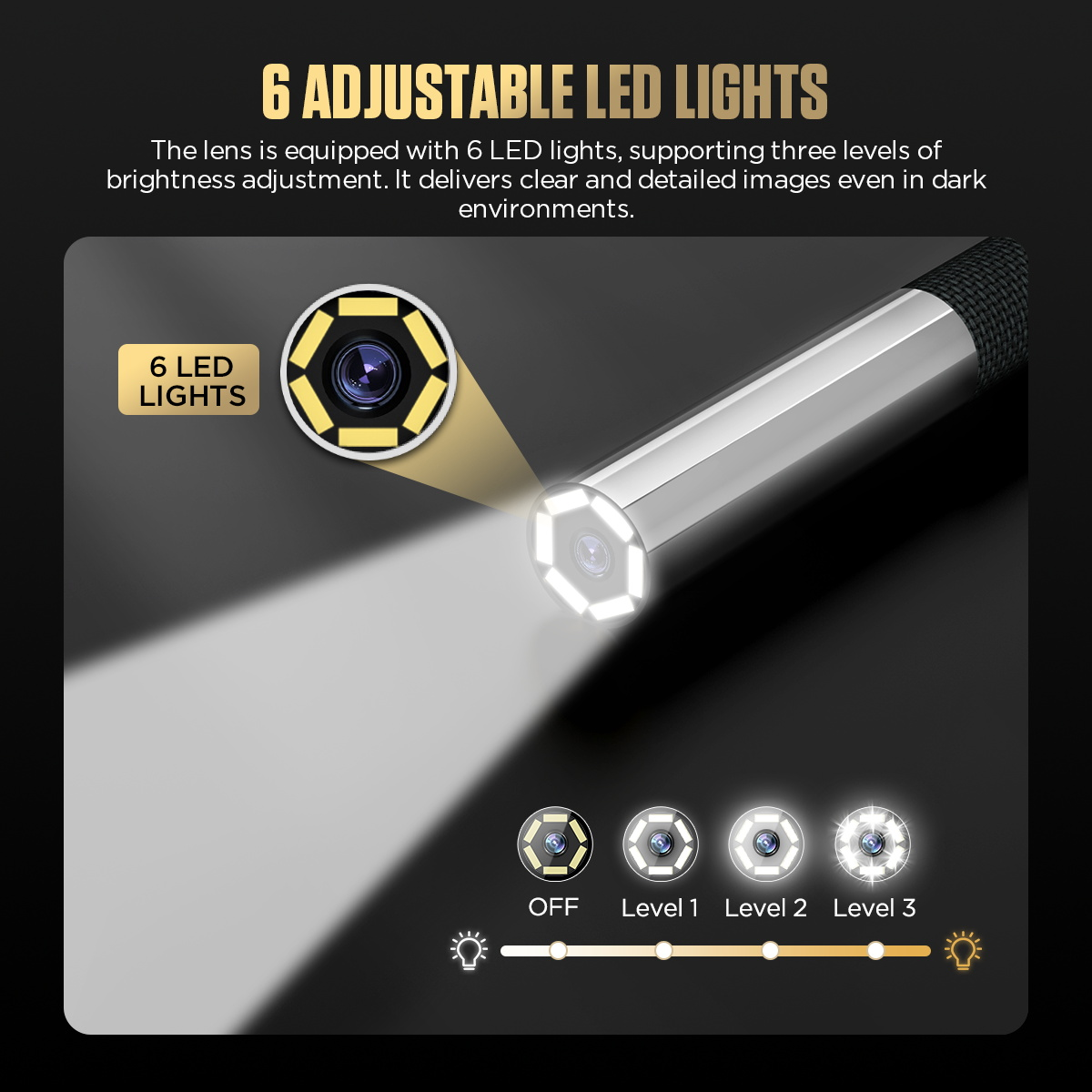

6 High-Brightness Ceramic LEDs: Three adjustable brightness levels provide stable and uniform illumination in dark or confined spaces.

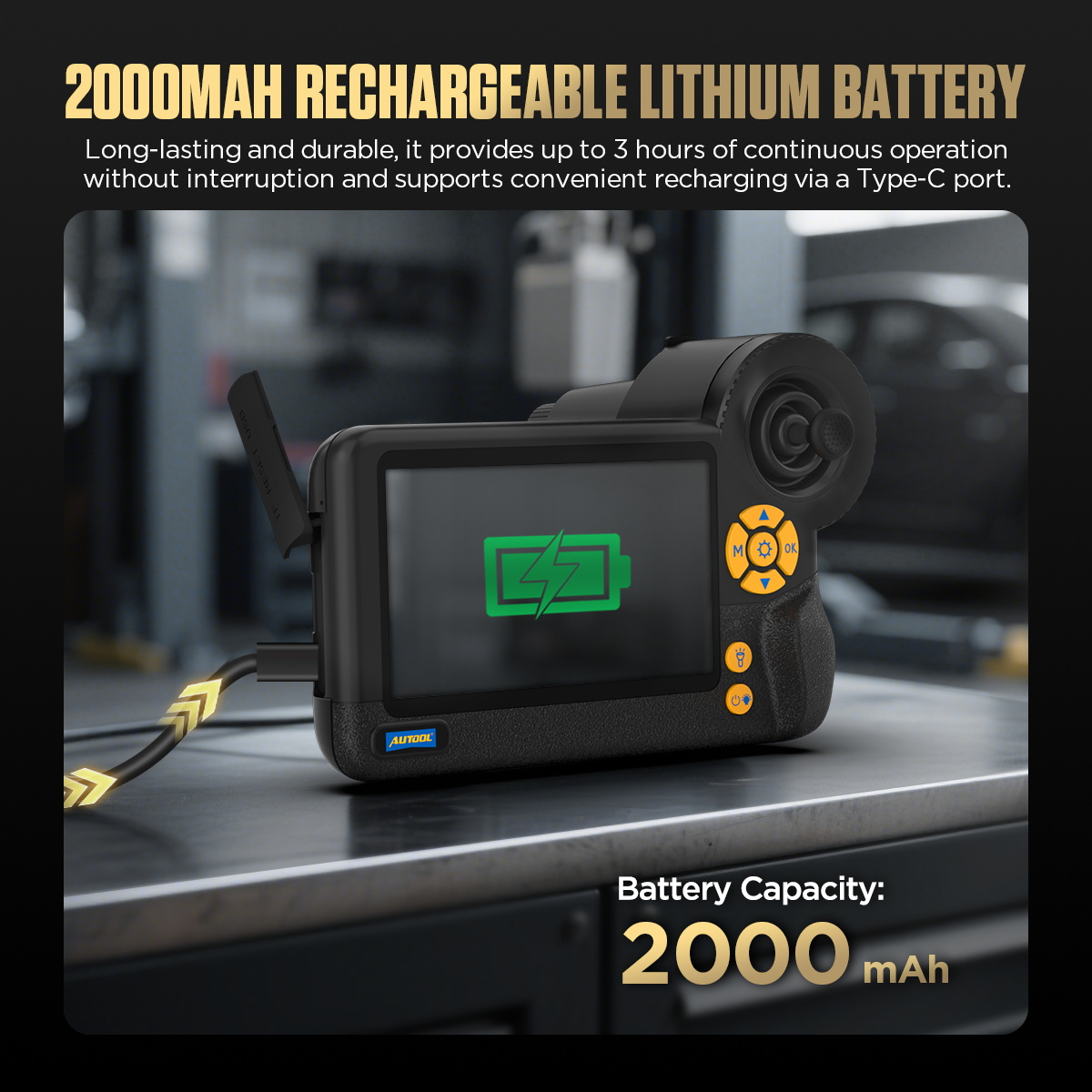

2000mAh High-Capacity Battery: Supports up to 180 minutes of continuous use, reducing frequent charging and ensuring long inspection sessions.
Built-in 32GB High-Speed Memory Card: Stores over 80,000 images or 40 five-minute videos, meeting extensive data storage needs.
Supports 8 Languages: English, Simplified Chinese, Japanese, Korean, Russian, French, German, Portuguese.
3-Year Warranty: Covers non-human damage with free parts replacement within 3 years.

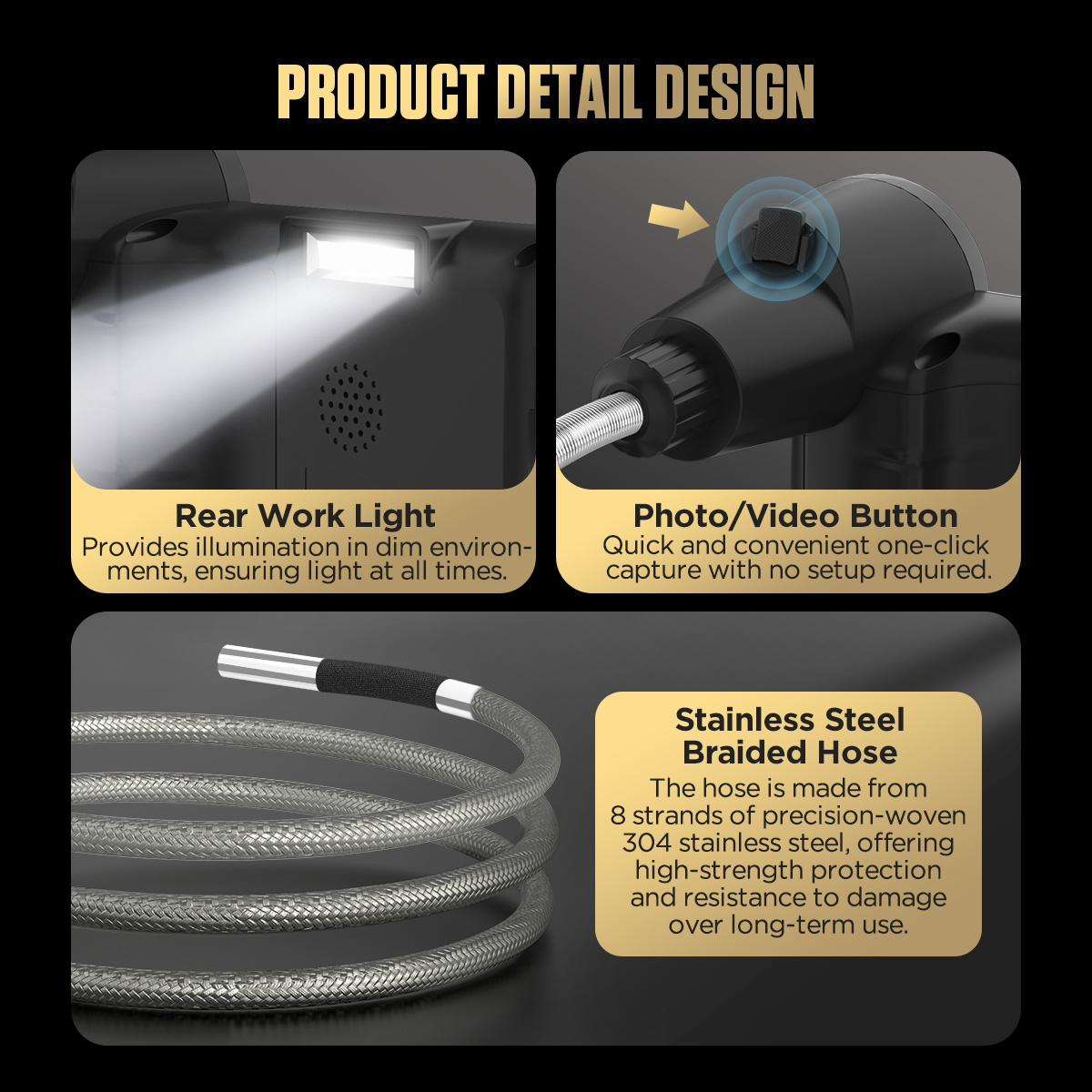

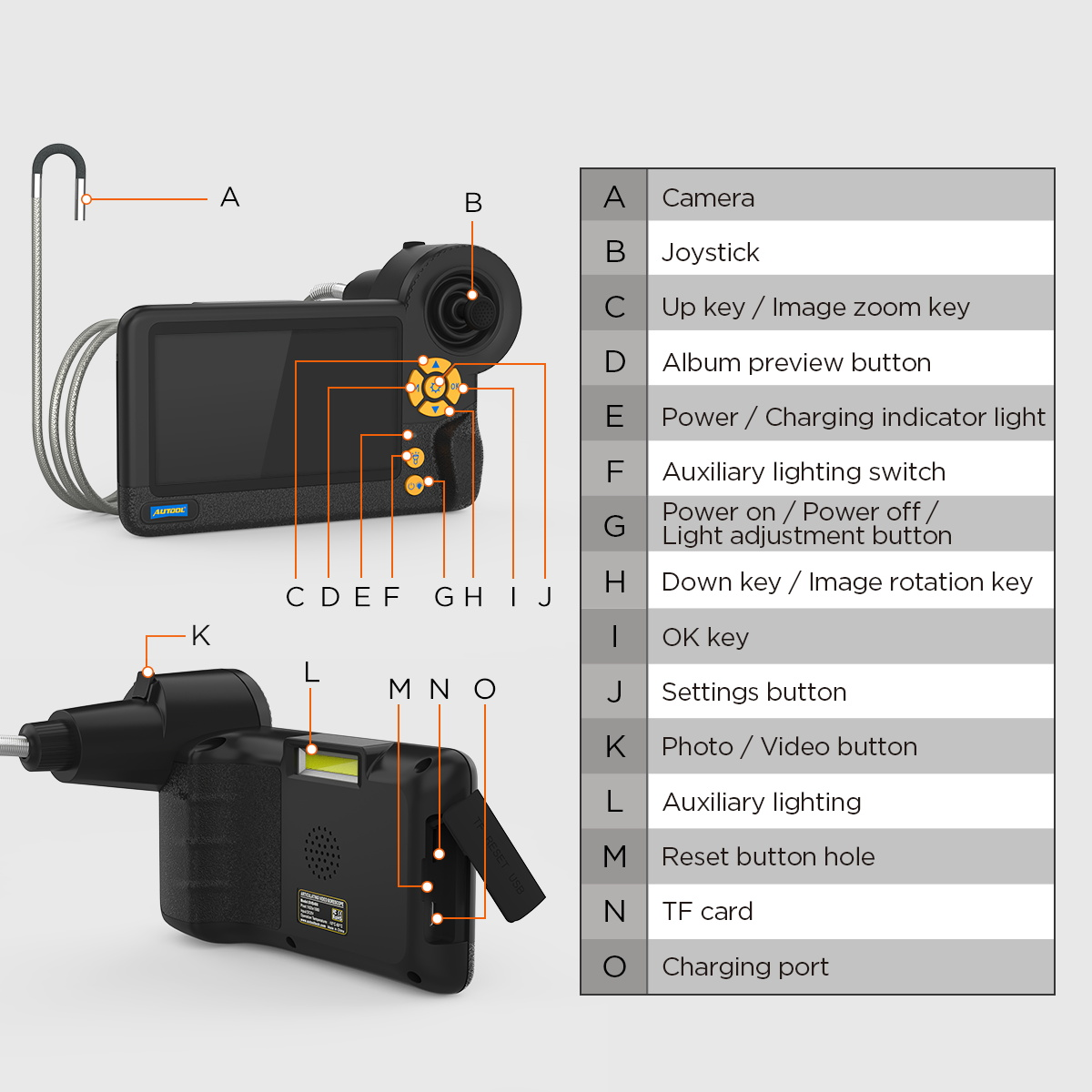

AUTOOL SVB408 Endoscope Camera Product Detail Design:
Rear work light: Provides illumination in dim environments, ensuring light at all times.
Flexible Hose Material: Durable, wear-resistant metal hose.
Photo/Video Button: No setup required, one-click capture.
Operating Instructions
1. Press and hold the power button and open the camera protective cover.
2. Adjust the ideal lighting and insert the probe into the engine.
3. Use the joystick to adjust the camera direction.
4. Multifunctional Use: Zooming and image inversion can be performed using the buttons on the LED screen.
5. The camera handle has a photo button for taking pictures or recording videos.
