When diagnosing engine issues by measuring intake manifold pressure, traditional needle-type gauges often fluctuate excessively, making accurate readings difficult. Checking for fuel pipeline leaks by watching the dial can also lead to errors. While the OBD system can read fault codes, it cannot distinguish between sensor drift and actual differential pressure deviations, which can easily result in misdiagnosis.

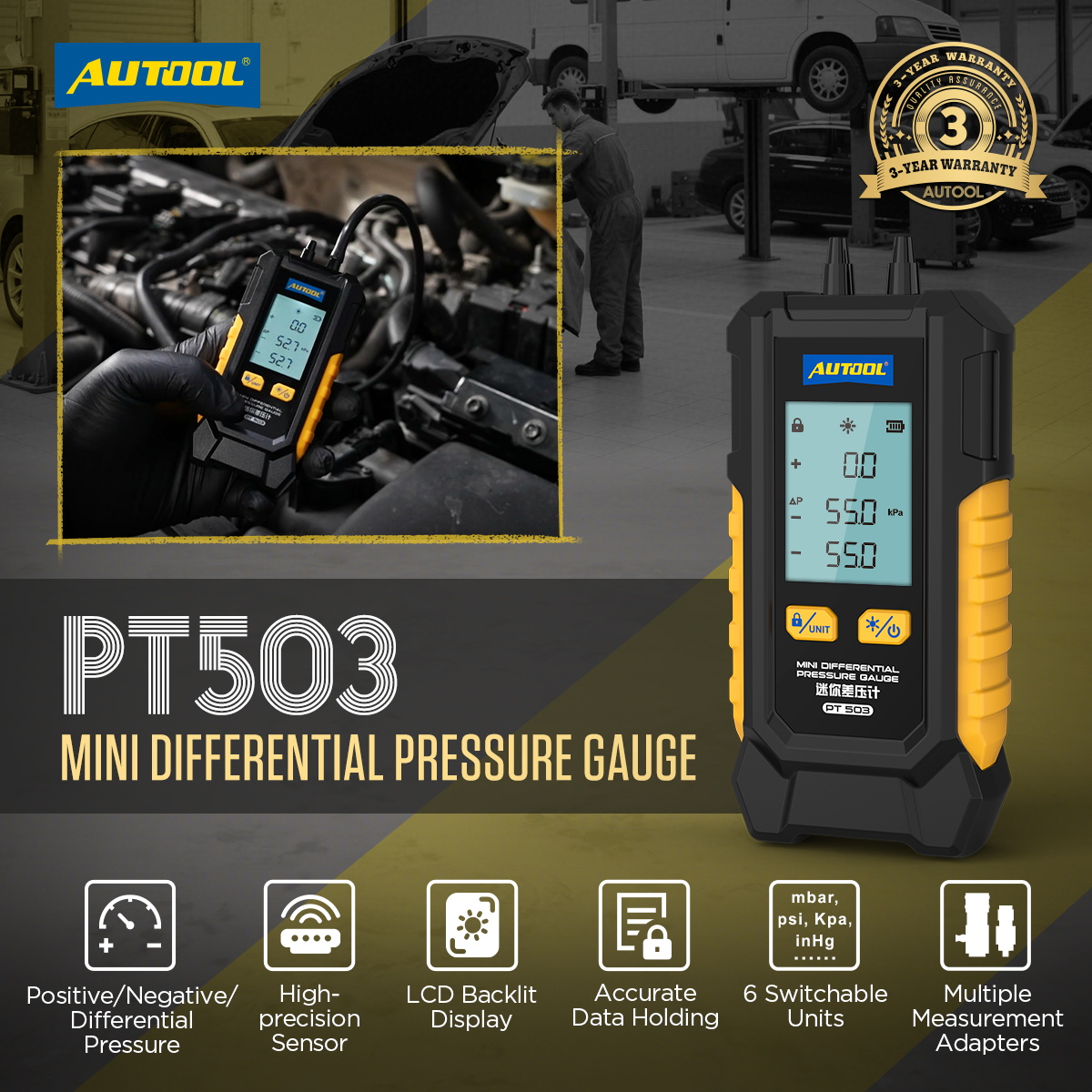

The AUTOOL PT503 is a compact differential pressure gauge specifically designed for the automotive repair industry. Unlike traditional needle-type gauges, the PT503 employs a pressure sensor with a fast response, high measurement accuracy of ±0.5% FS, and a resolution of 0.01 Psi. It can directly measure physical differential pressure to verify the authenticity of sensor signals, thereby reducing the risk of misdiagnosis. The device simultaneously detects positive and negative pressure between two points and automatically calculates the differential pressure. It is suitable for detecting crankcase pressure from the exhaust gas valve, intake manifold vacuum, and pressure in the A/C system. By enabling technicians to efficiently identify issues such as leaks or blockages in pipelines, it helps prevent unnecessary part replacements and serves as a key tool for improving repair accuracy and efficiency.
AUTOOOL PT503 Mini Differential Pressure Gauge Key Features and Functions:

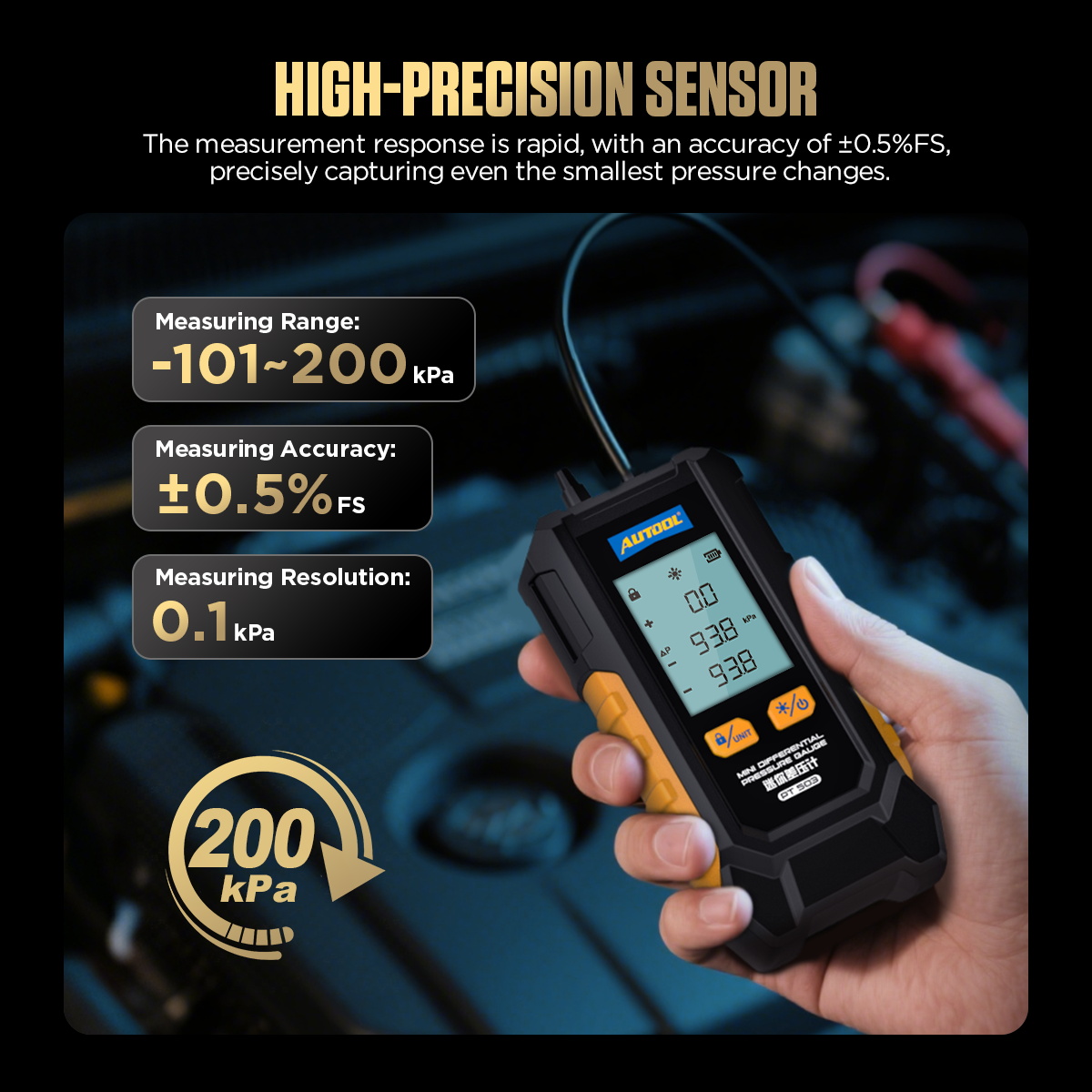

High-precision Pressure Sensor
The AUTOOL PT503 is equipped with an advanced pressure sensor that delivers rapid response and high accuracy, with a precision of ±0.5% FS and a resolution of 0.01 Psi. It can accurately measure even the slightest differential air pressure.

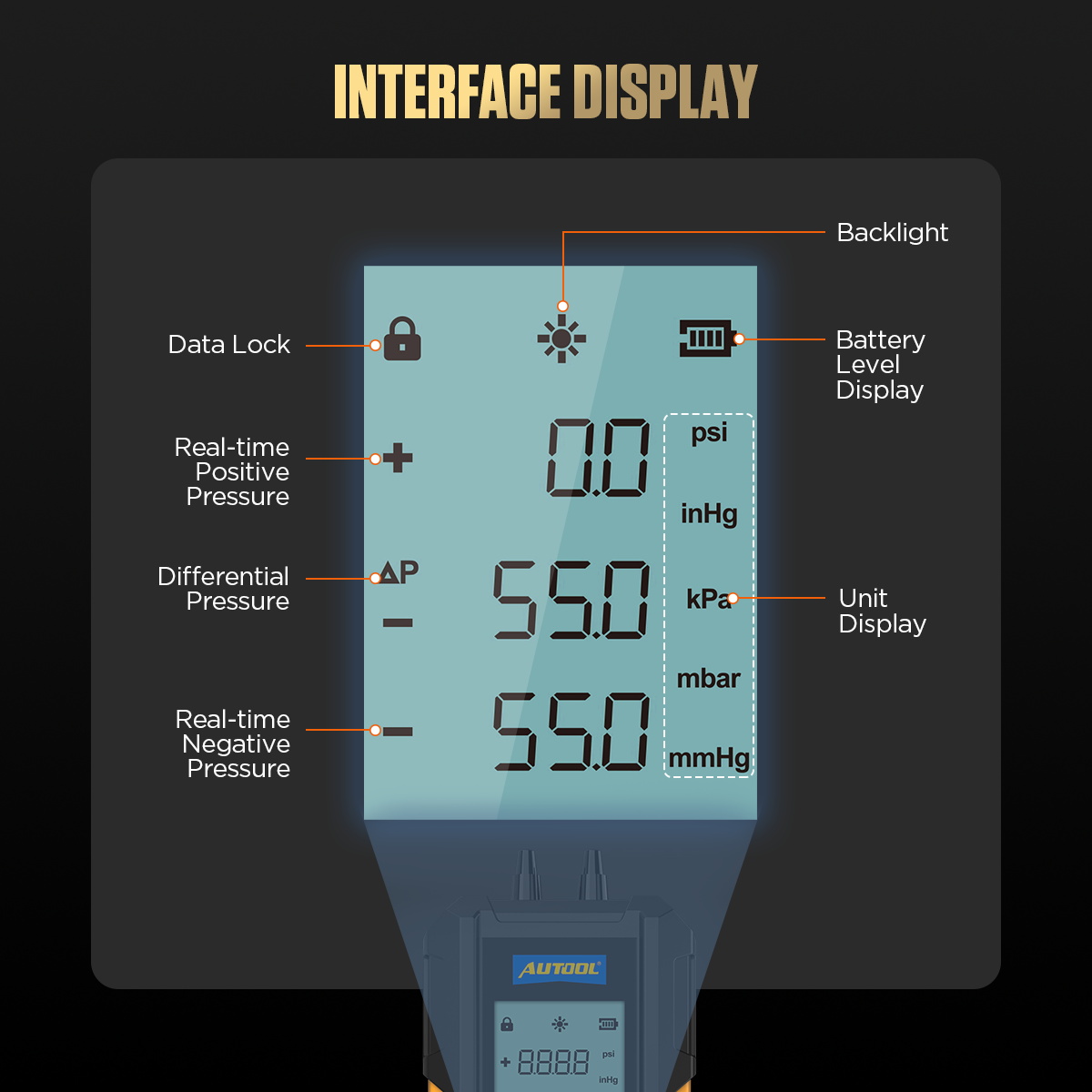

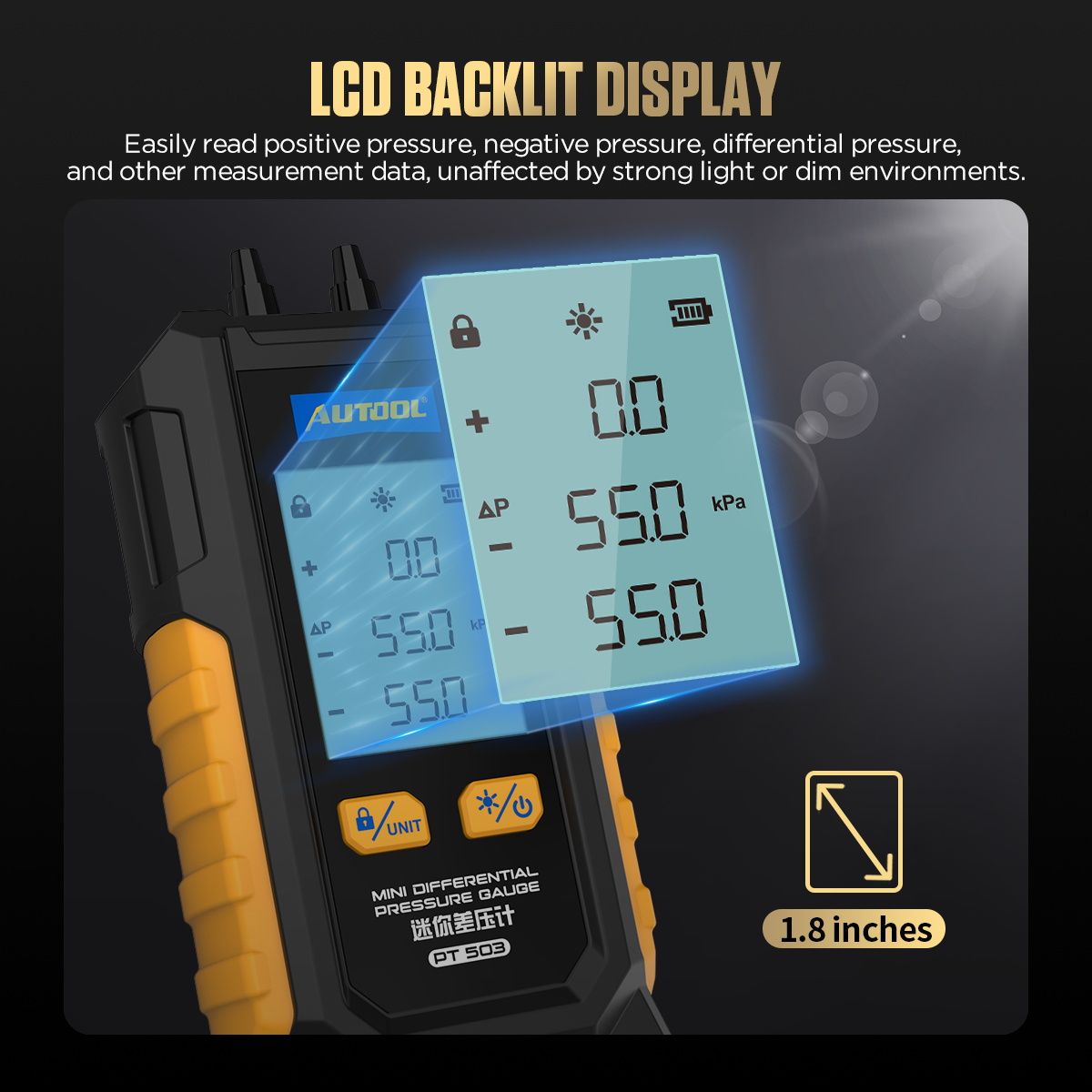

LCD Backlit Display
The AUTOOL PT503 features a 1.8-inch LCD backlit display that clearly presents both positive and negative pressure readings. Whether in bright sunlight or dim conditions, the data remains easy to read, greatly enhancing convenience and user comfort during operation.

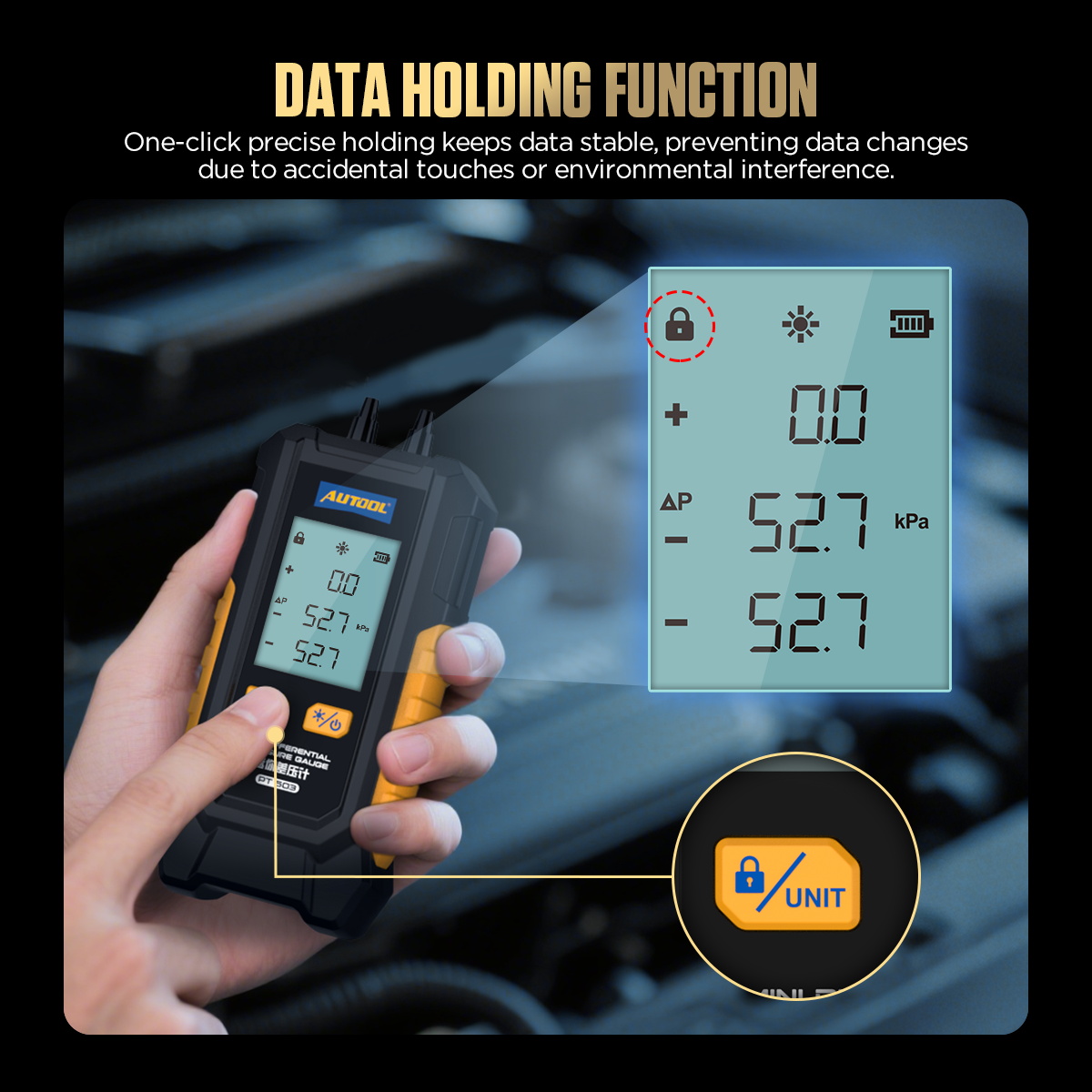

Data Holding Function
The AUTOOL PT503 offers multiple functions, including a one-touch data hold feature that prevents reading drift caused by hand movement or environmental vibrations, providing stable and reliable data support for differential pressure diagnostics during maintenance.

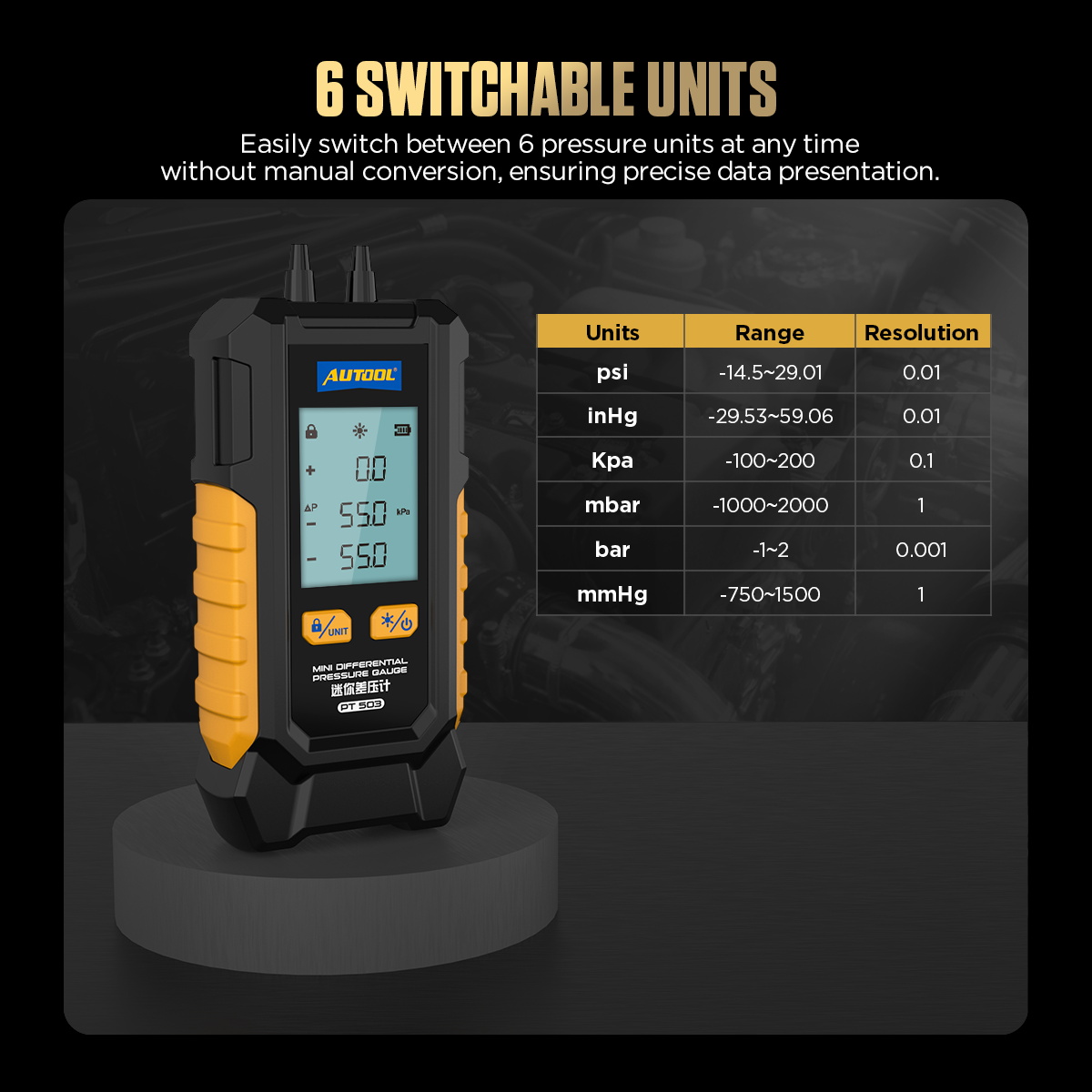

6 Switchable Units
The AUTOOL PT503 offers six selectable pressure units: Psi, inHg, KPa, mbar, bar, and mmHg. This allows users to directly match the measurement requirements of different scenarios without manual conversion, effectively preventing data deviations caused by calculation errors.

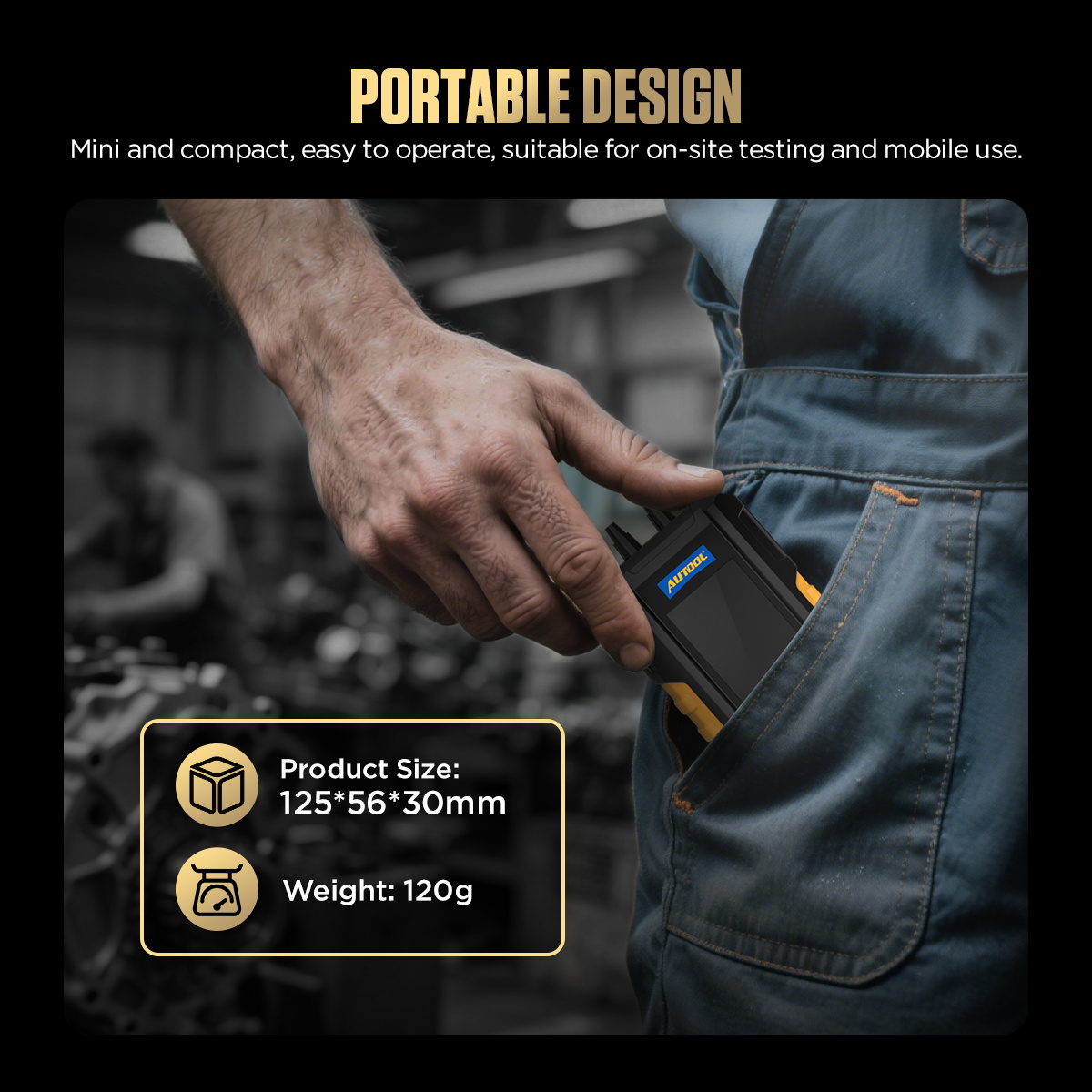

Portable Design
The AUTOOL PT503 features a compact and portable design, weighing just 120g. It is well-suited for pressure testing in tight spaces such as engine compartments and exhaust pipes, efficiently supporting fault diagnosis and maintenance work.

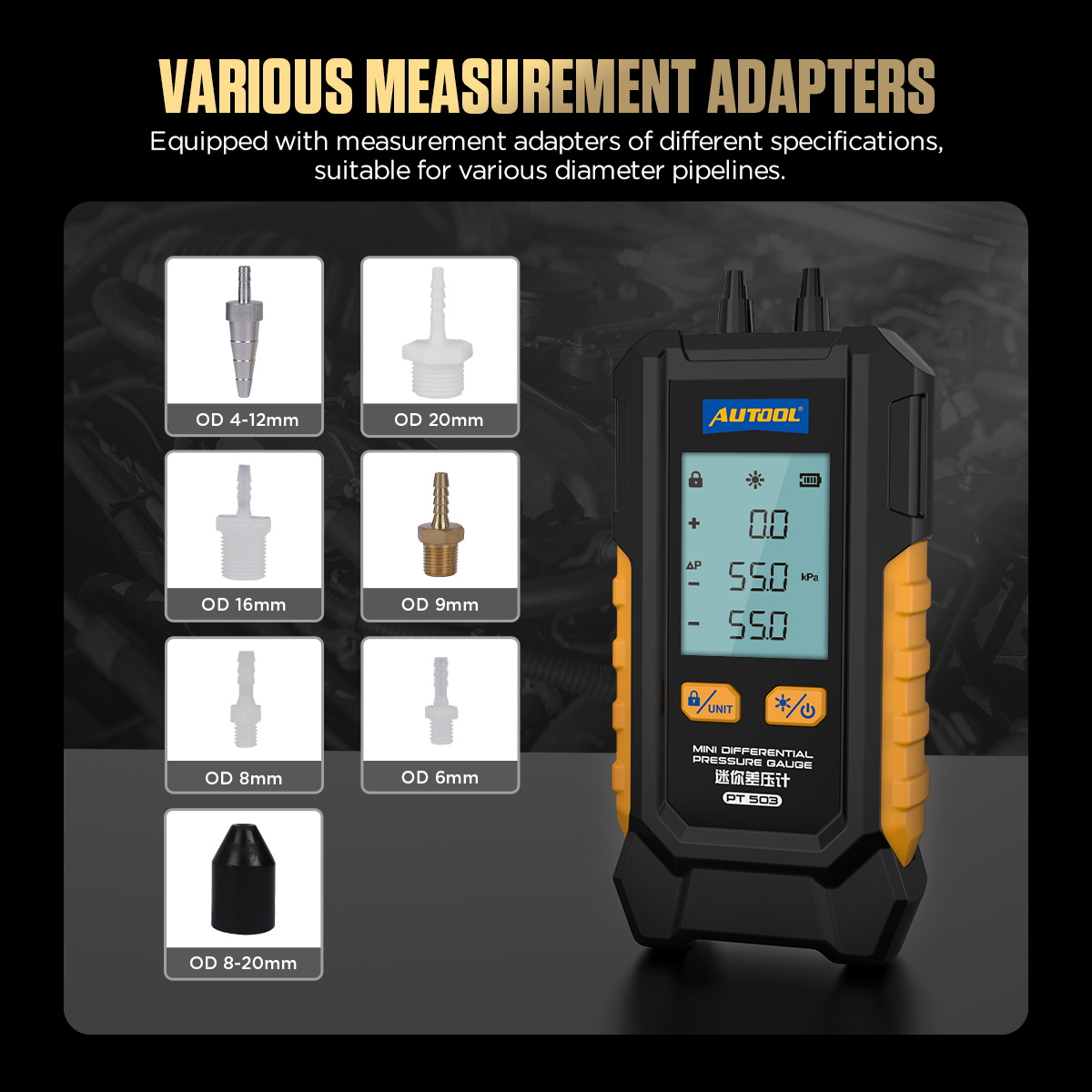

Multiple Measurement Adapters
The AUTOOL PT503 is equipped with multiple measurement adapters, offering flexible compatibility with various vehicle models and test point interfaces. No extra adapters are needed, simplifying setup and enhancing user convenience.

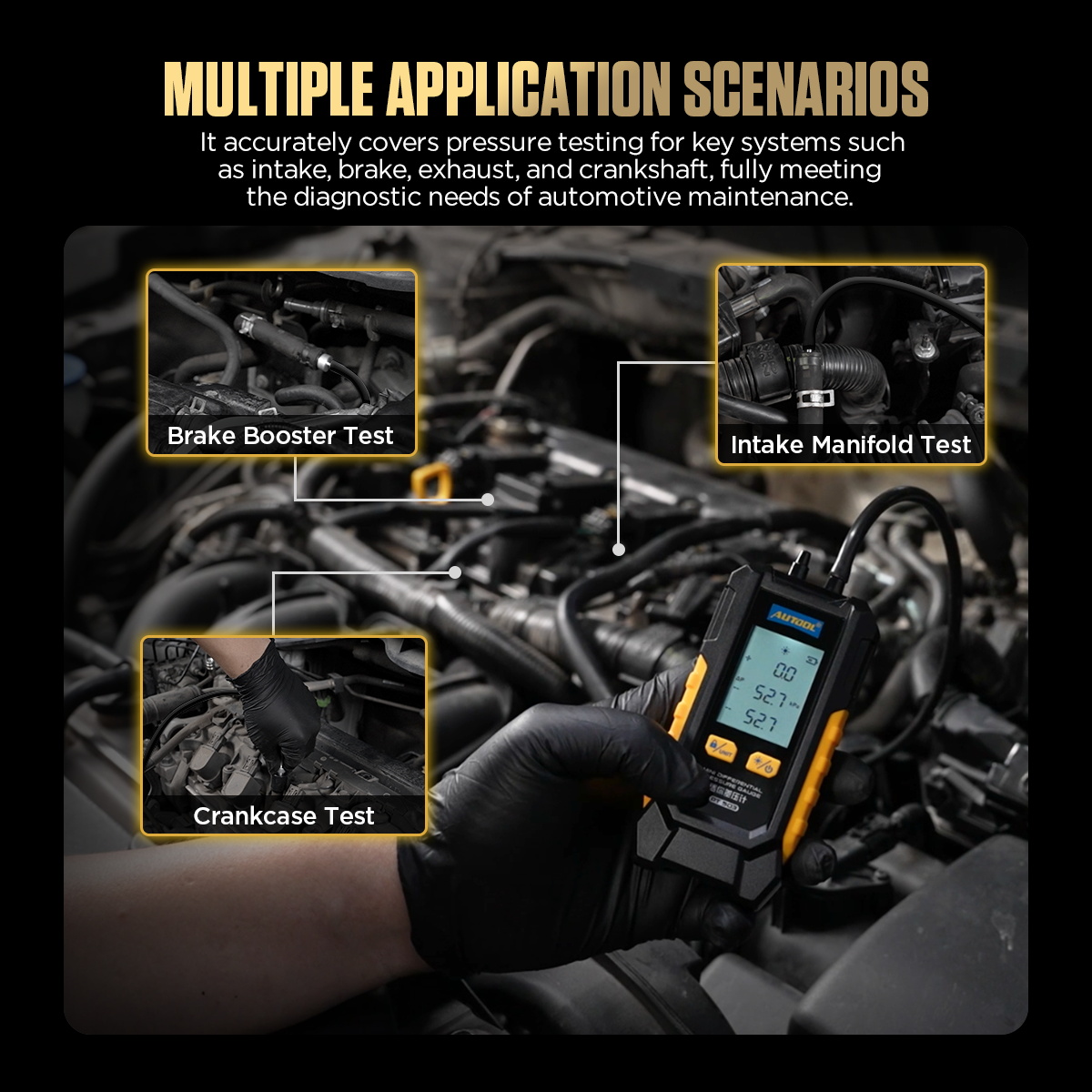

Multiple Application Scenarios
The AUTOOL PT503 is specifically designed for the automotive repair field and is suitable for vacuum pressure testing of key components and systems such as intake manifolds, exhaust systems, crankcase ventilation systems, and exhaust gas valves.
The AUTOOL PT503 Mini Differential Pressure Gauge is a compact and portable device that accurately measures both positive and negative pressure between two points and automatically calculates the differential pressure. Independently developed by AUTOOL, it has a number of intellectual property rights, as well as the authoritative certification of CE, FCC, ROHS and other testing organizations. Commonly used in automotive repair and similar scenarios, it features a 1.8-inch backlit display. By measuring the positive pressure, negative pressure, and differential pressure in the intake manifold, it can quickly detect abnormalities in the airflow sensor or throttle body. This helps prevent power loss or increased fuel consumption caused by air-fuel ratio imbalances, making it an ideal diagnostic tool for modern repair workshops.

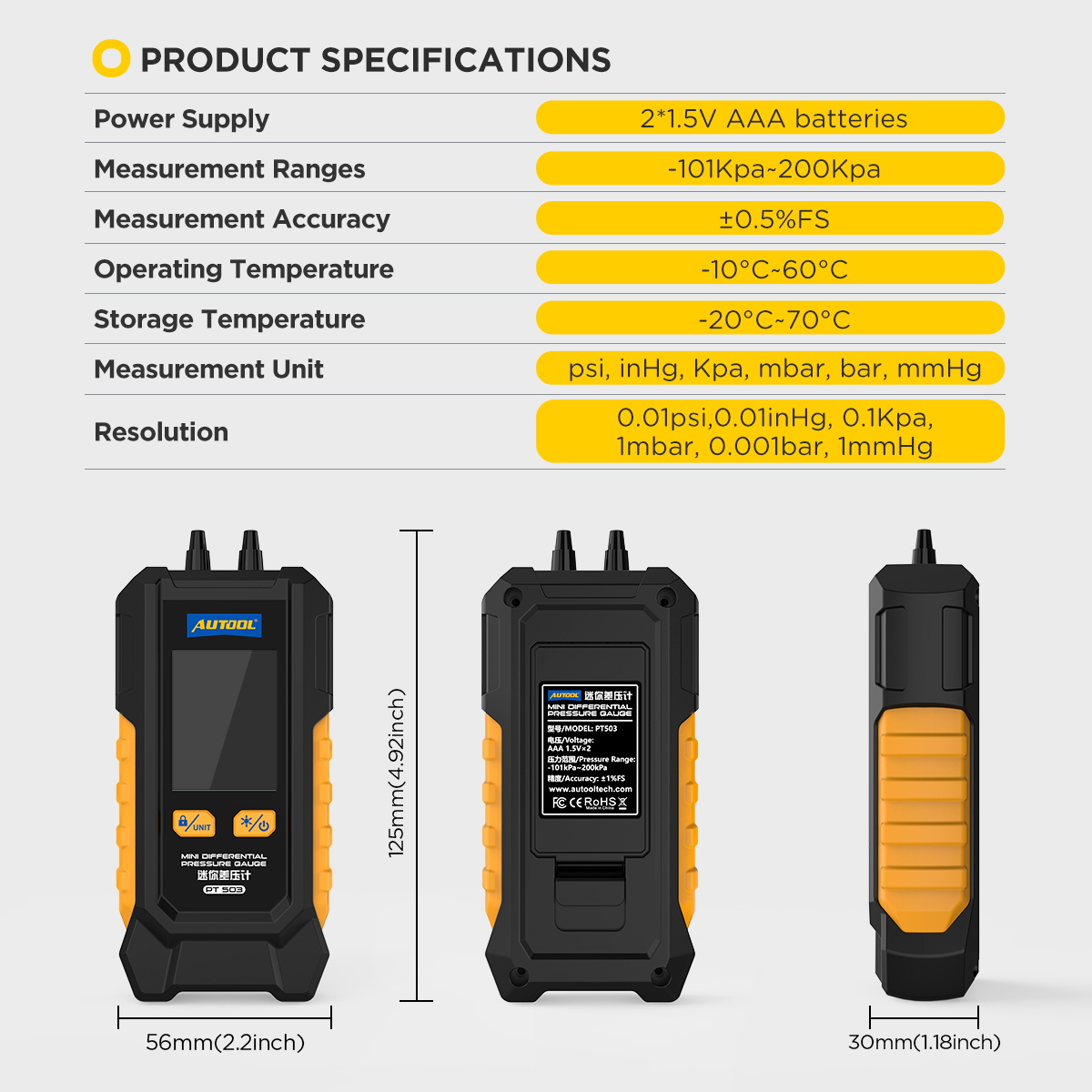

Specifications

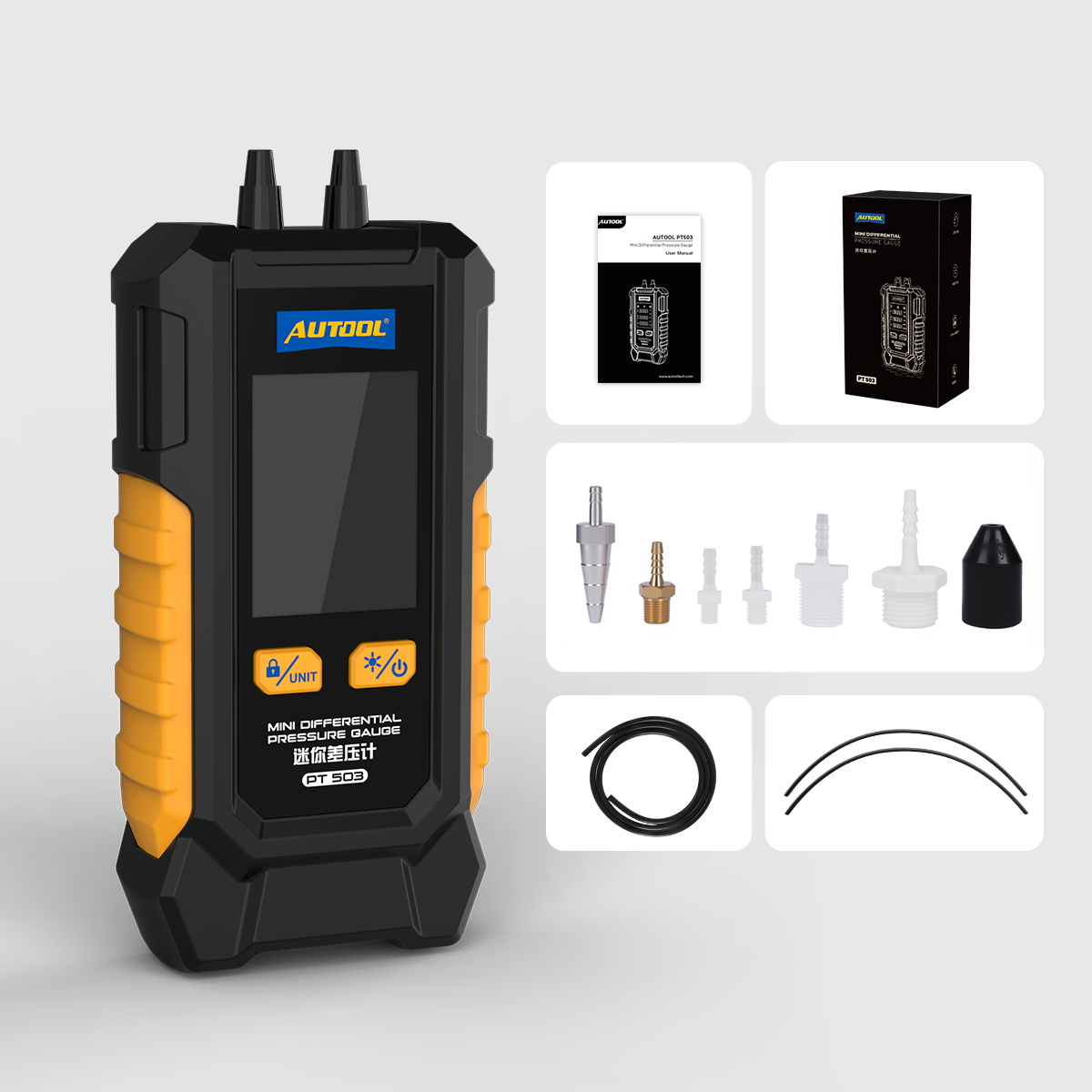

Packing List
