Brand Name: AUTOOL
Type: Sheet Metal Tools Set
Item Type: Metal cutting machine
Function: Plasma Cutter
Feature: IGBT DC Invertor Cutter

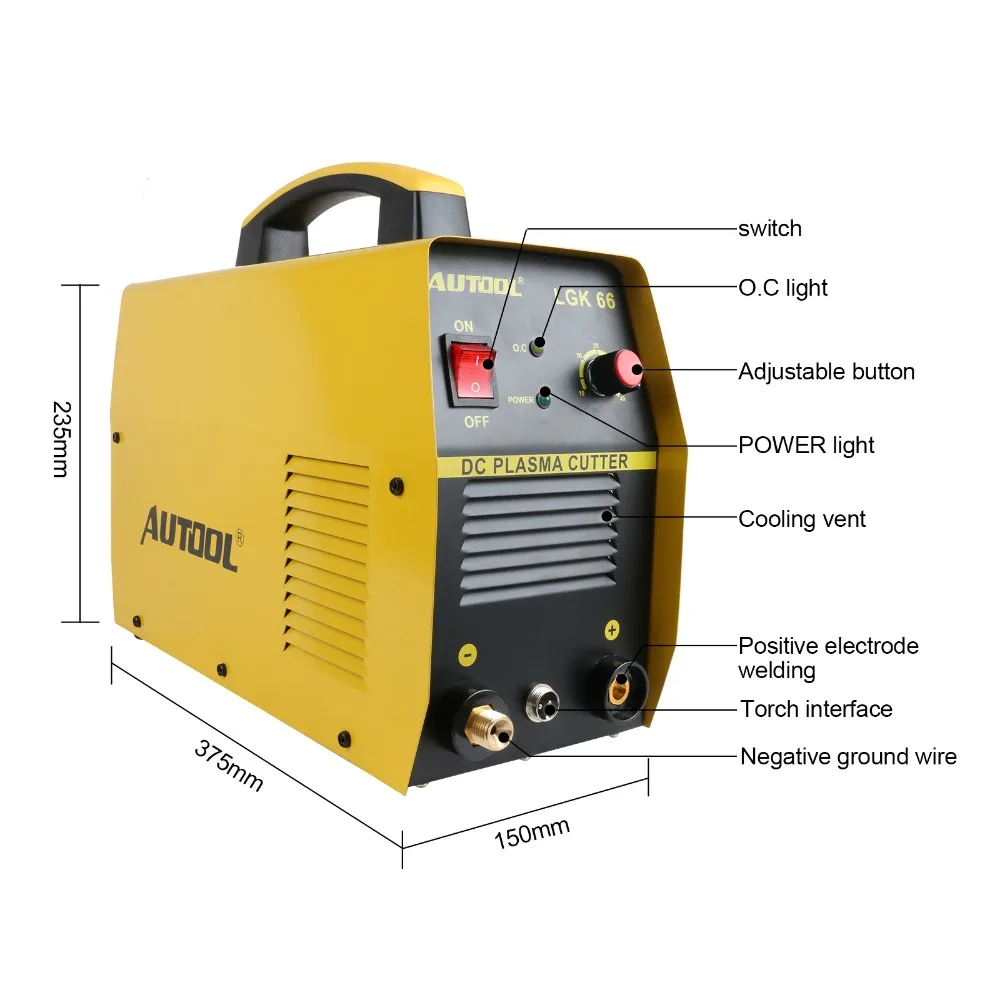

AUTOOL CUT 66 is made by most advanced invert technology.
50Hz frequency is inverted to high frequency (frequency is over 100KHz) by MOSFET, the step down voltage and rectification current,
inverter power supply generates powerful DC welding current through PWM technology.
Because inverter technical of switch power is used, dimensions and weight of main transformer has reduced substantially and
efficiency has increased 30%. Piloting arc system can strike arc easily with principle of high frequency oscillating.
It has the function that it can supply gas ahead and turn off gas delayed.
Main Technical Data:
Power voltage: 110V±15%
Rate input power: 5/3KVA
No-load voltage: 110V
Rate output current: 20-50A
Rate output voltage: 96/91V
Duty cycle: 60%
Pilot arc model: HF oscillating
Pressure of air compressor(MPA): 0.4
