Brand Name: AUTOOL
Item Type: 12V & 24V car battery tester
Function: Car Battery Analyzer
Feature: Multi-Languages


Product description



AUTOOL BT460 Car Battery Tester



12V 24V Heavy Duty Auto Battery Test Analyzer Multi-Languages Vehicle Cell Testing Repair Tools



AUTOOL BT460 Battery Tester adopts currently the world's most advanced conductance testing technology.



It can measure the actual cold cranking amps capability of the vehicle starting battery,



healthy state of the battery more easily, quickly and accurately.



It can read common fault of the vehicle cranking system and charging system,



which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.



Notice: BT460 need to be calibrated sometimes. If needed, please send messages to the services.



Autool BT460 (2)



Advantage:



1. Simple and easy to use



2. Test batteries on and off the vehicle



3. Accurate results in milliseconds



Compared to other tester, the test results of  Autool BT460 Battery tester are the same(tolerance ±15) when testing at the same time



4. Battery Life Analysis



5. Analysis Result : Good or Replace



6. Large easy to read LCD display.



7. Test results based on JIS, EN, DIN, SAE and IEC Standards.



8. Vehicle cranking system test --- cranking time, voltage and status.

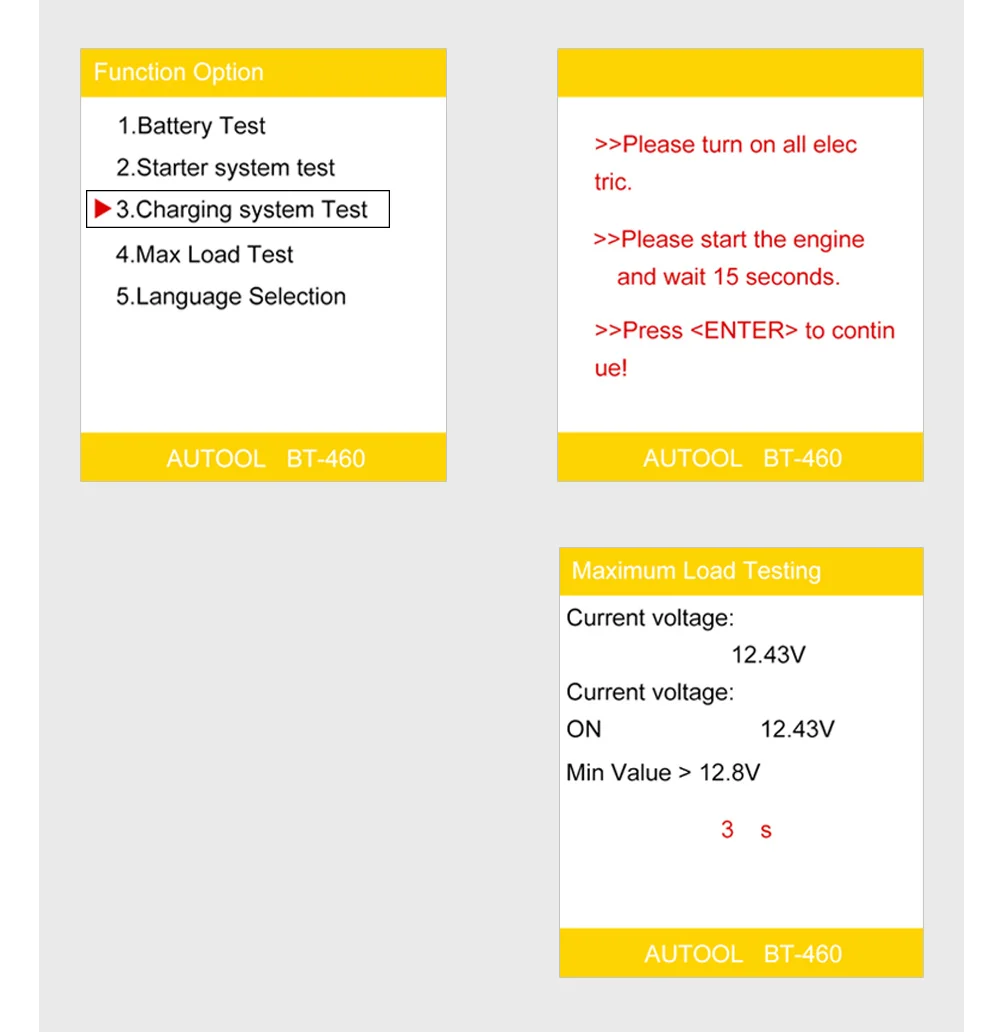

9. Vehicle charging system test --- load voltage, unloaded voltage, ripple status and charging system status.



​Notice: BT460 is designed for 24V car specially. If you test 12V car only, BT360 would be more accurate.

  Autool BT460 (13)

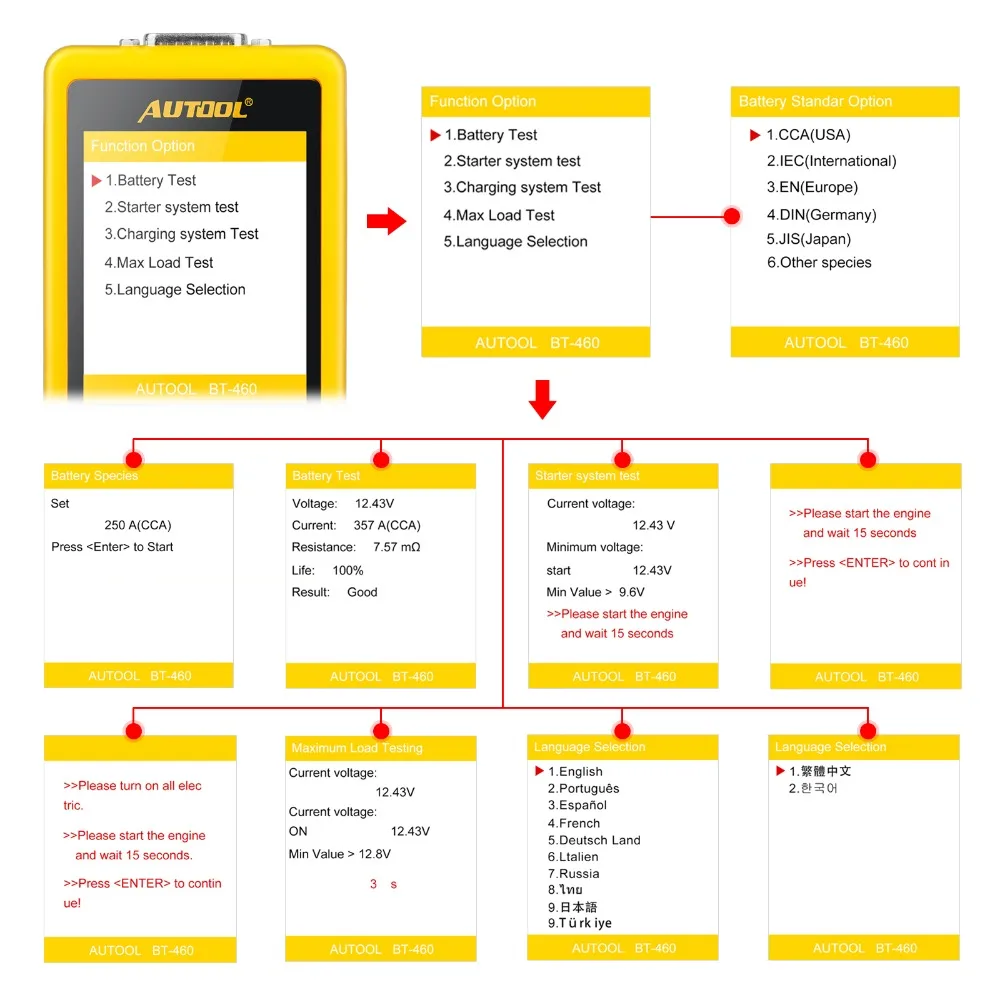

Function:

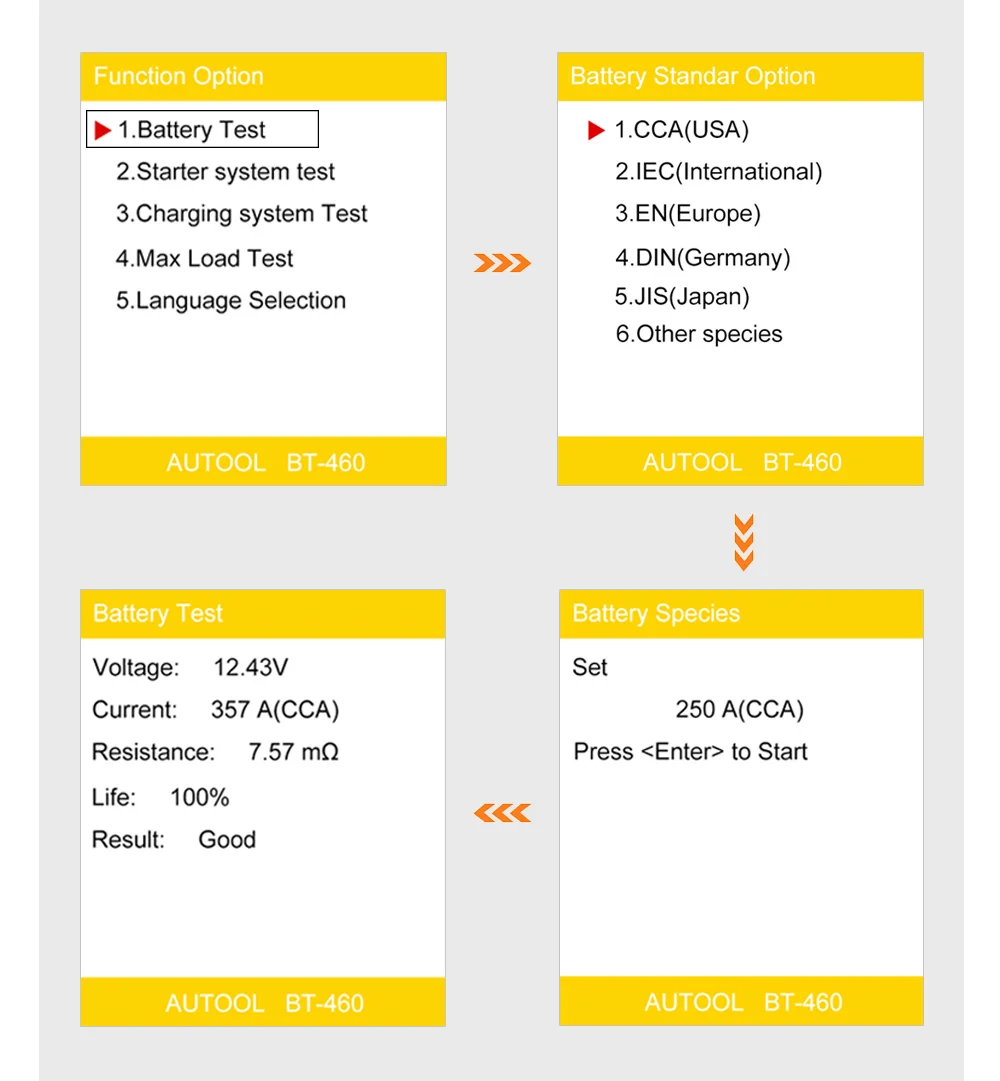

Test Result: Good or Replace



Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.



Internal resistance value (m )



Life in percentage (%)



Cranking system



Charging system

   Autool BT460 (3)Autool BT460 (4)Autool BT460 (5)

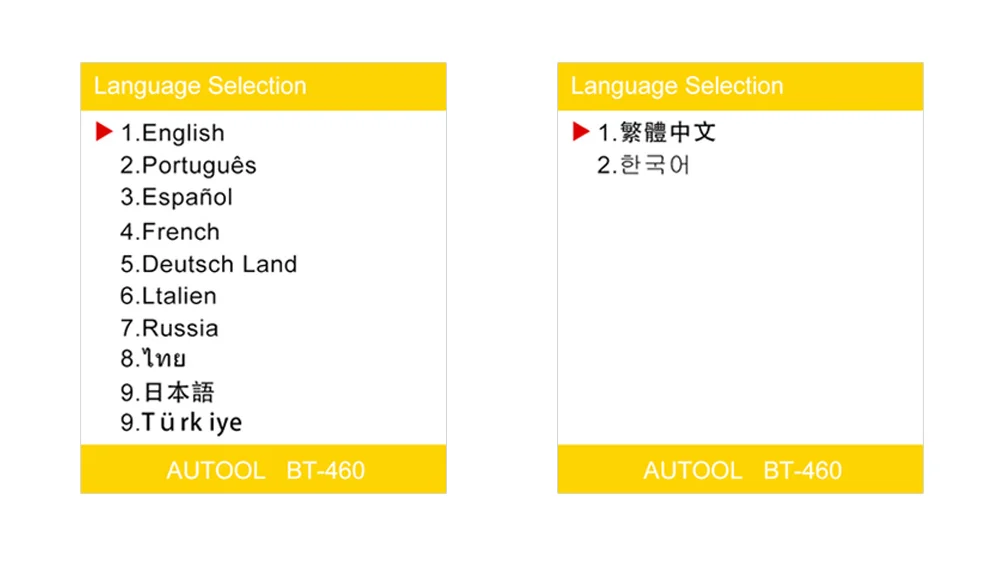

Support multi-languages, includes:



English, Russian, Spanish, Portuguese,French,German, Italian, Thai,Korean,Chinese, Japanese,Turkish.

  Autool BT460 (6)

Benefit:



1. Conductance correlates directly to the battery capacity



2. Passive testing method is safe.



3. Never discharges or drain the battery.



4. Able to test condition of discharged battery.



5. Consistent and repeatable results.



6. Provides unique indication of battery conditions.



7. Provides check the Alternator's charging and Starter's cranking conditions.



It is maintenance free and no internal batteries required.



8. Powers up when connected to the battery posts during testing.



Feature



1.  Test all automotive(include 12V cars and 24V heavy trucks) cranking lead acid battery,



     including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.

2.    Directly detect bad cell battery.

3.    Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.

4.    Directly test the battery with loss of electricity, no need to full charge before testing.

5.    Testing standards include currently the world's majority of battery standards, CCA, JIS, DIN, IEC, EN, SAE, GB.



6.   4''  large colorful TFT display, provide gentle and clear reading experience

   Autool BT460 (12)Autool BT460 (1)Autool BT460 (11)

Technical Parameters:

Measure Standard               Measure Range


     CCA                                 100-2400


     JIS                                  26A17--245H52


     DIN                                  100-2200


     IEC                                  100-2200


     EN                                  100-2400


    SAE                                  100-2400


     GB                                  30-220Ah


     BCI                                  100-2400


     MCA                                  100-2400


     CA                                  100-2400



Autool BT460 (9)

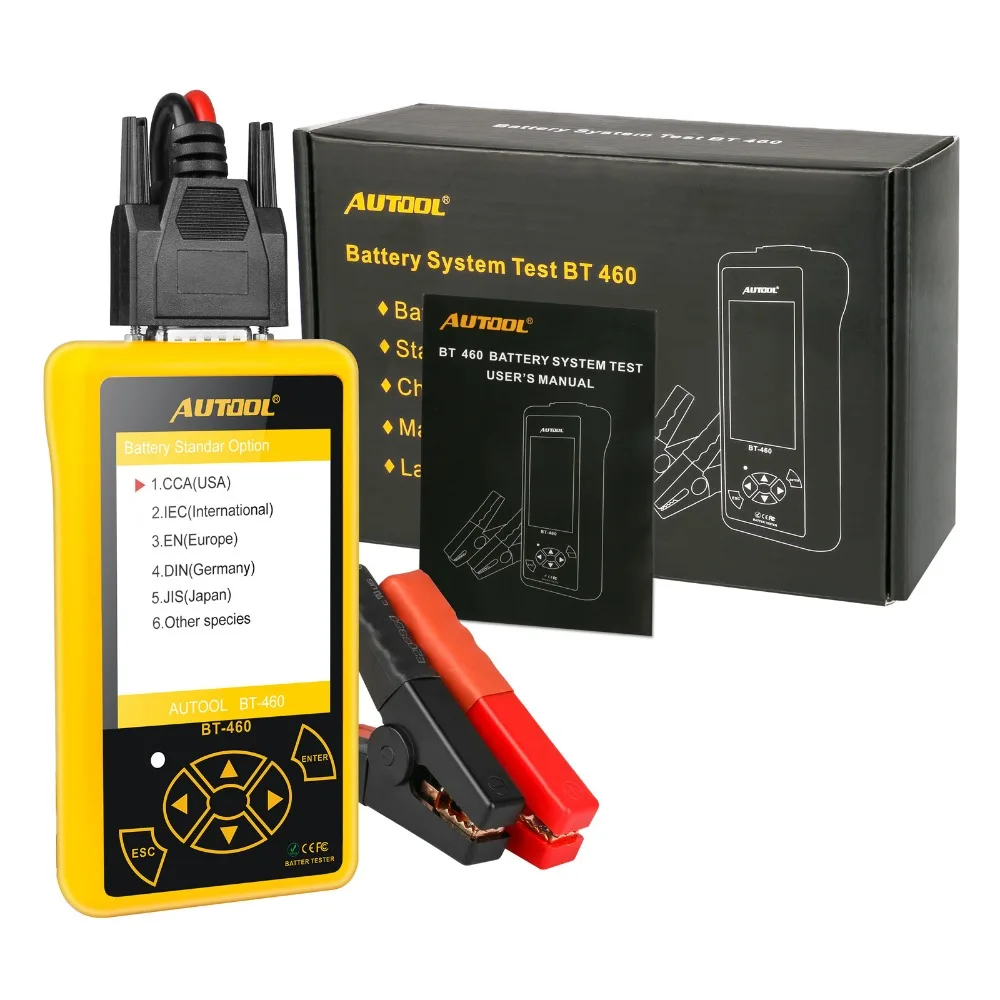

Package include:



1x BT-460


1x Battery clamp cable


1x User manual

Autool BT460 (7)
