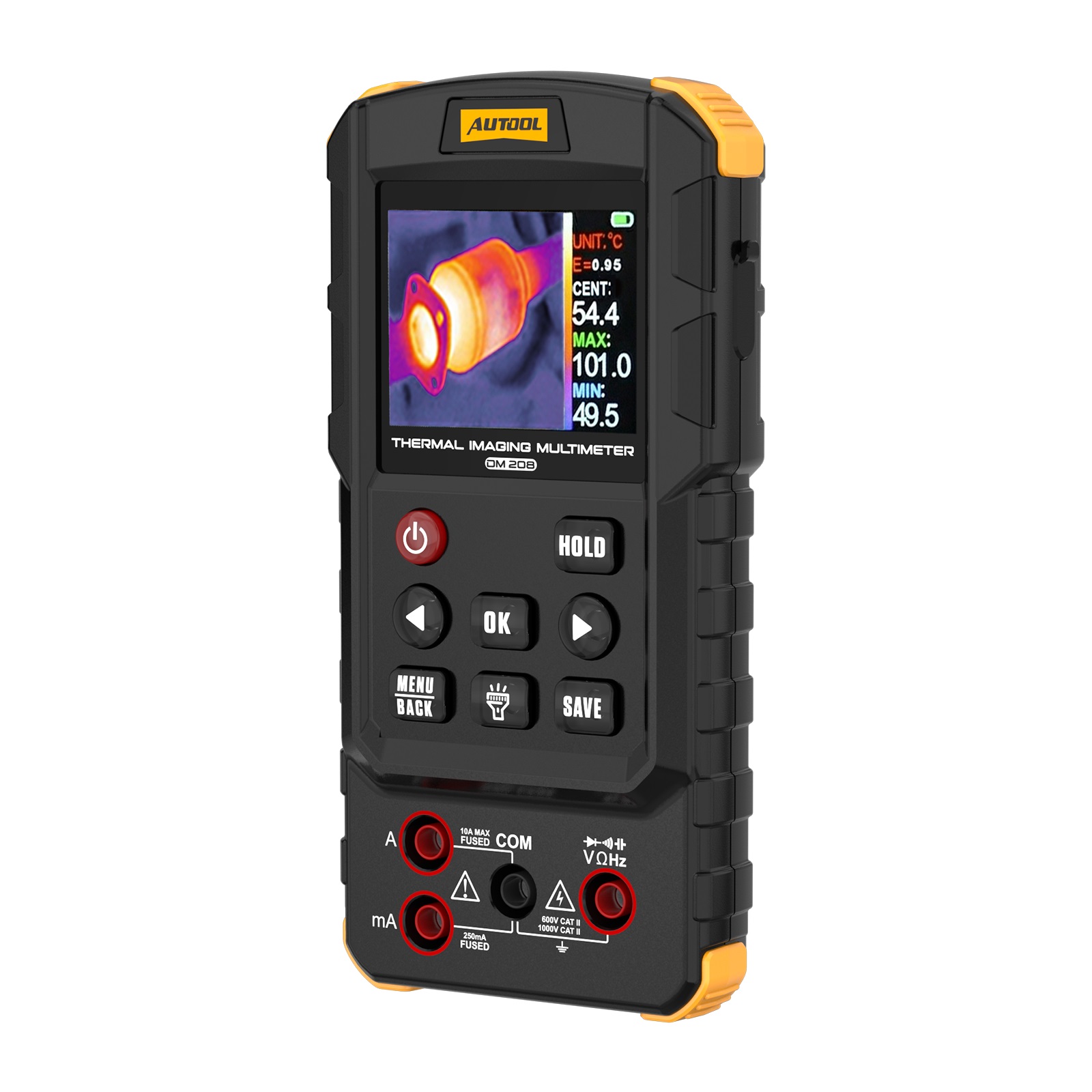

DM208 Thermal Imaging Multimeter

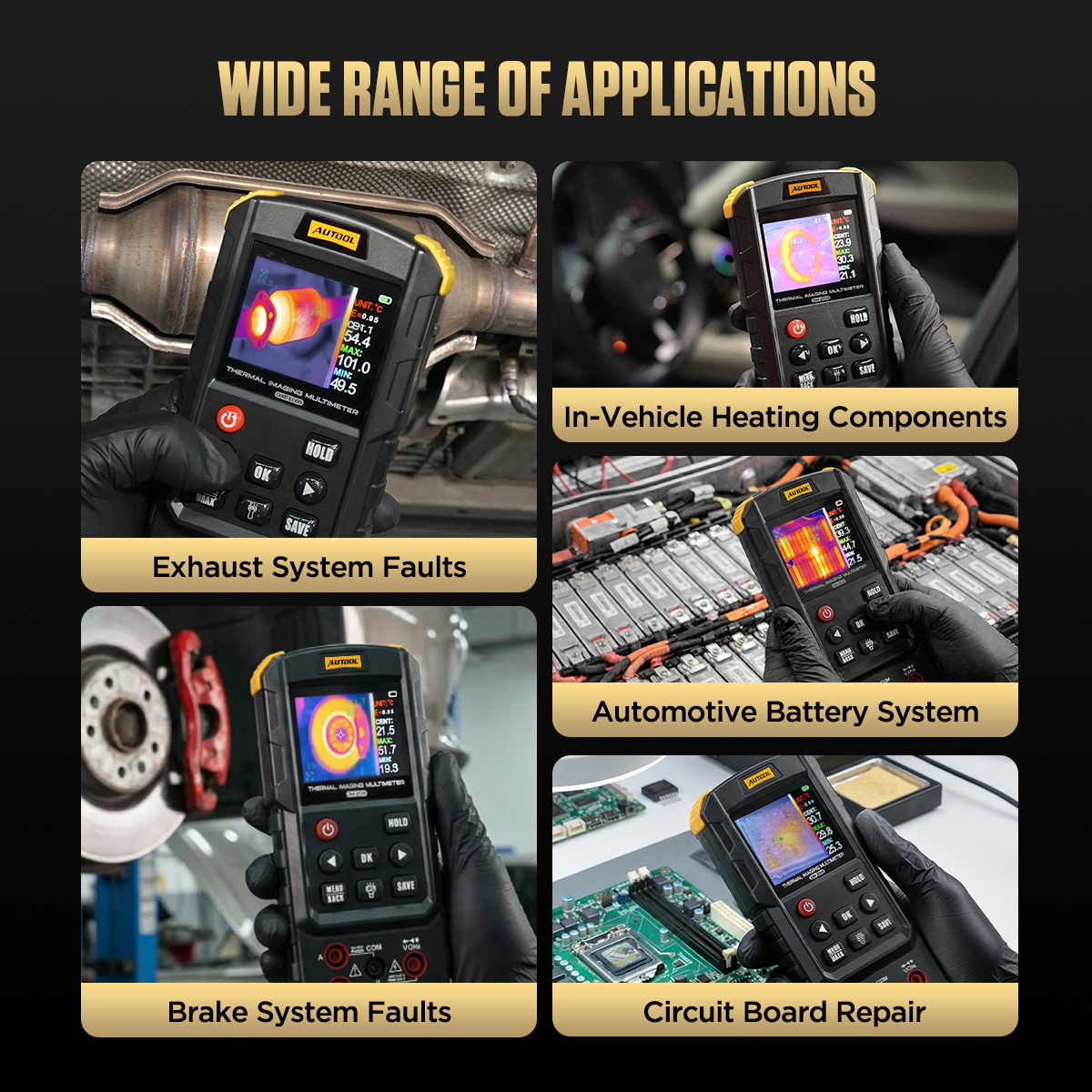

The AUTOOL DM208 is a multifunctional testing device that combines infrared thermal imaging and a high-precision digital multimeter. In multimeter mode, it supports AC/DC voltage and current, resistance, capacitance, frequency, diode, and continuity testing. With a 25,000-count high-precision display, it can simultaneously display measurement values and waveform curves to meet a variety of electrical testing needs. The thermal imaging function supports dual-light fusion imaging with infrared and visible light, with a temperature measurement range of -20°C to 550°C. It can automatically track the highest and lowest temperature points, quickly locating abnormal hot spots in household outlets, automotive circuit boards, fuse boxes, distribution cabinet wiring, underfloor heating pipes, and water leakage areas. This helps identify issues such as poor connections, short circuits, overheating, and component faults.

  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0
  • image 0

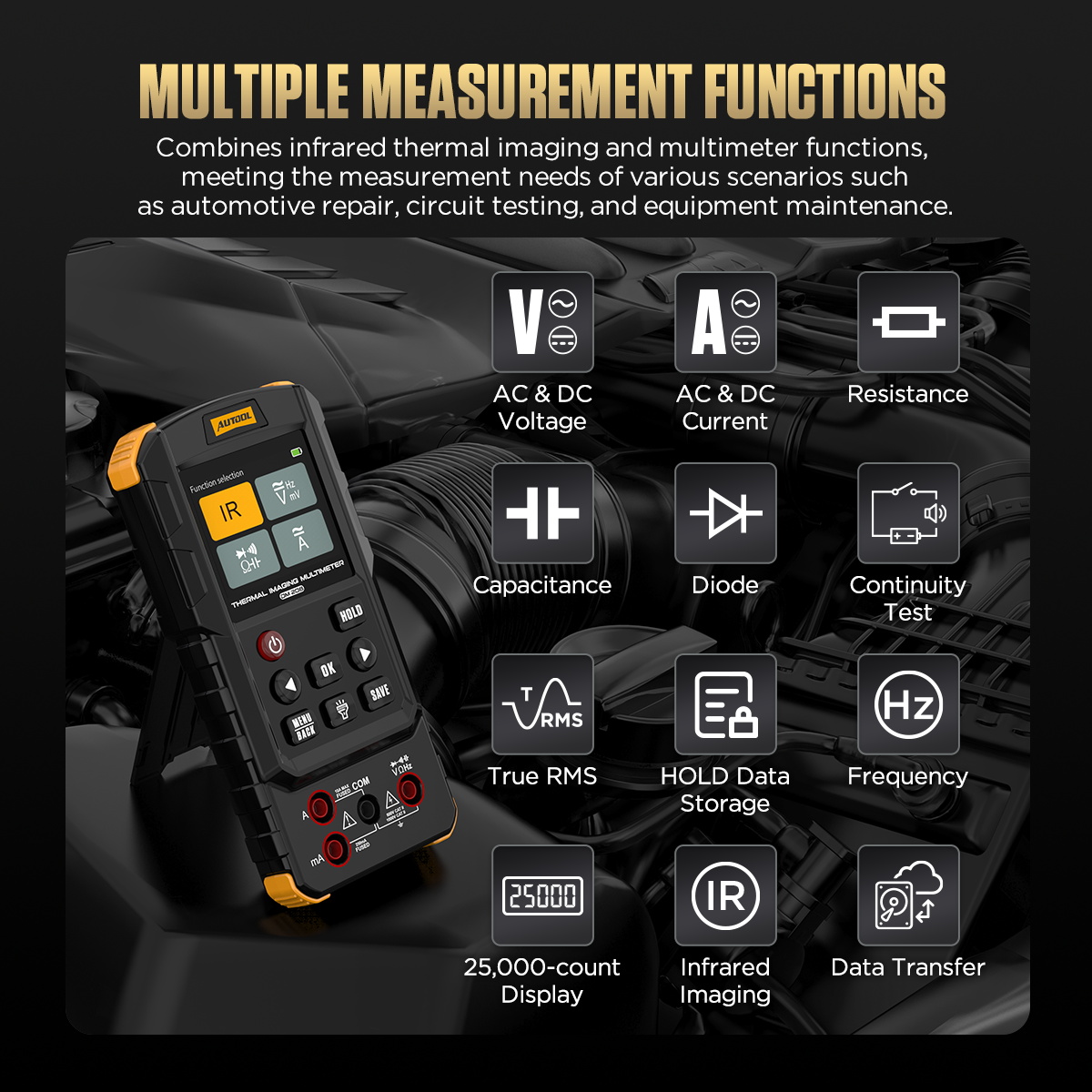

Multiple Measurement Functions

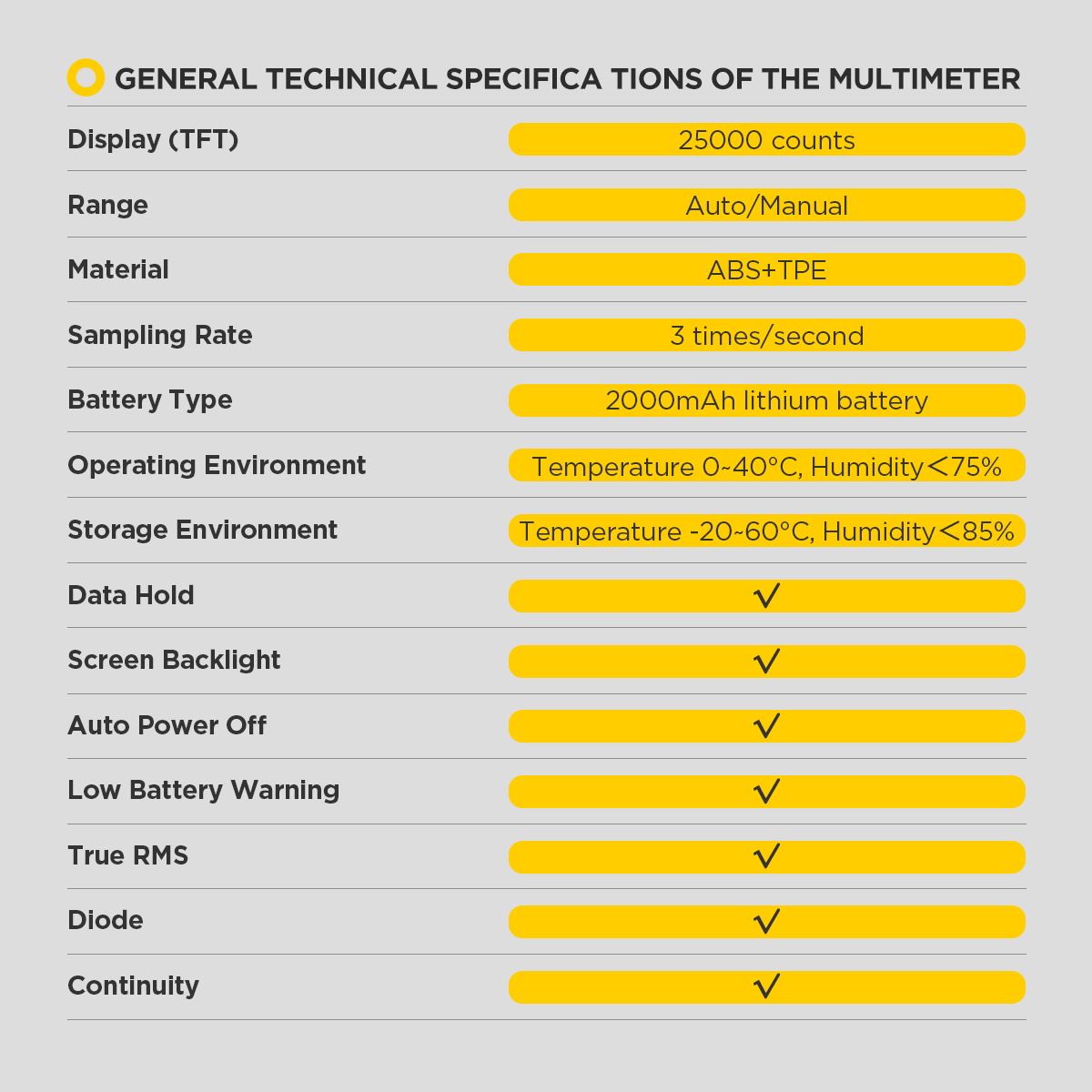

The AUTOOL DM208 combines infrared thermal imaging and multimeter functions. It supports AC/DC voltage, current, resistance, capacitance, diode, continuity, and frequency (Hz) measurement. It also features TRMS, data hold, and a 25,000-count high-precision display, as well as data transfer and firmware upgrades.

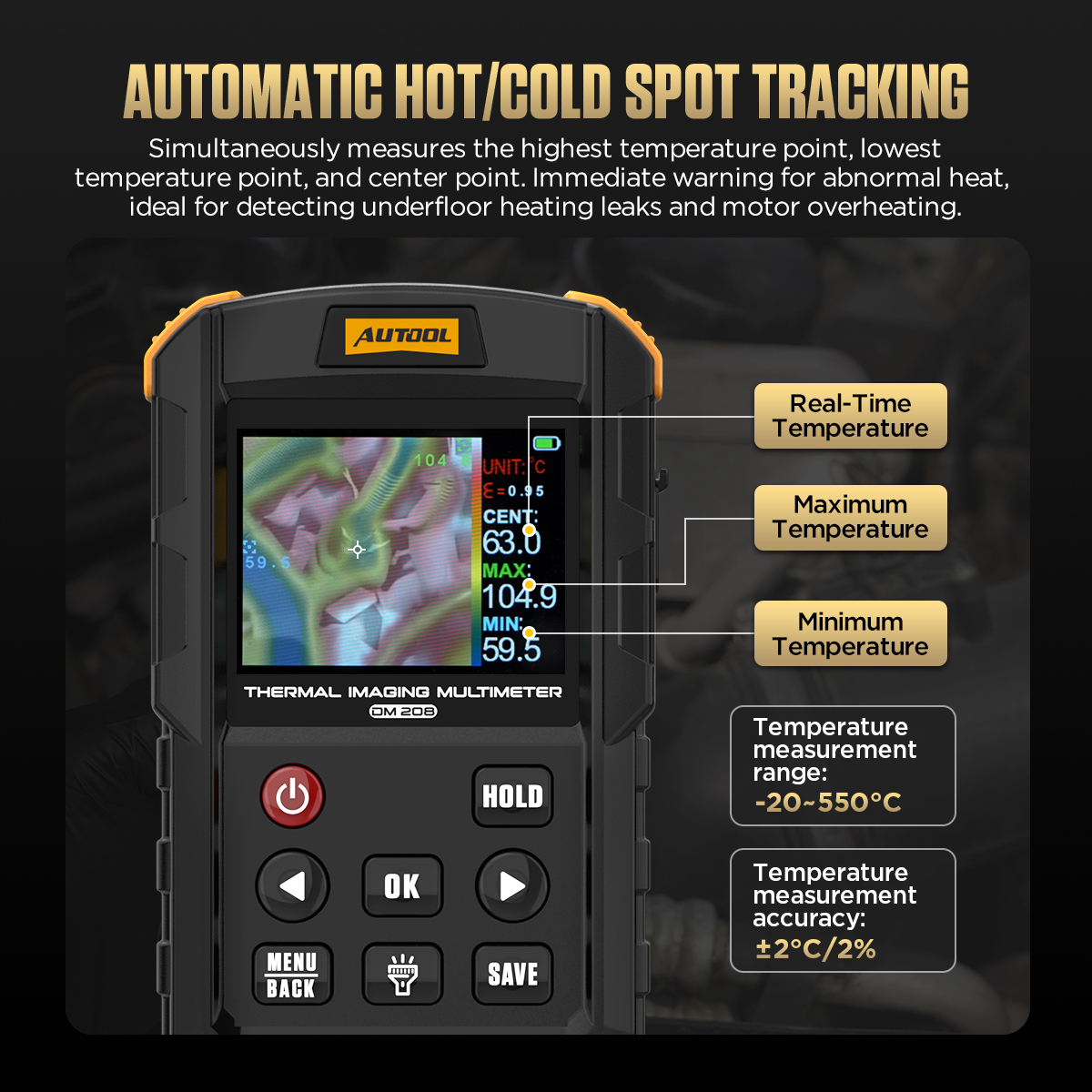

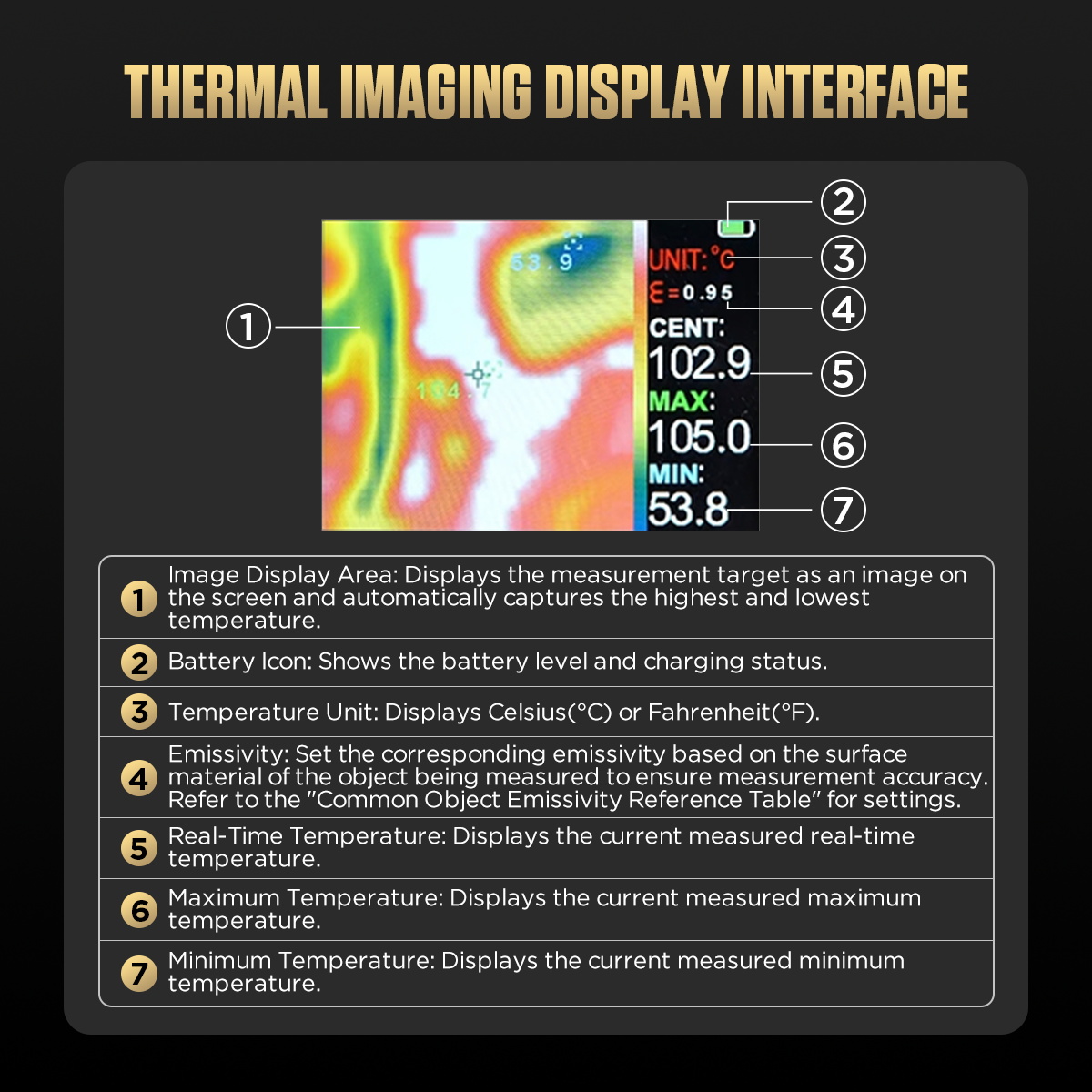

Intelligent Temperature Detection with Automatic Hot/Cold Spot Tracking:The DM208 supports automatic tracking of the highest and lowest temperature points, allowing users to intuitively compare temperature differences between different areas and quickly locate abnormal hot spots in automotive circuit boards, fuse boxes, and other areas for efficient troubleshooting.

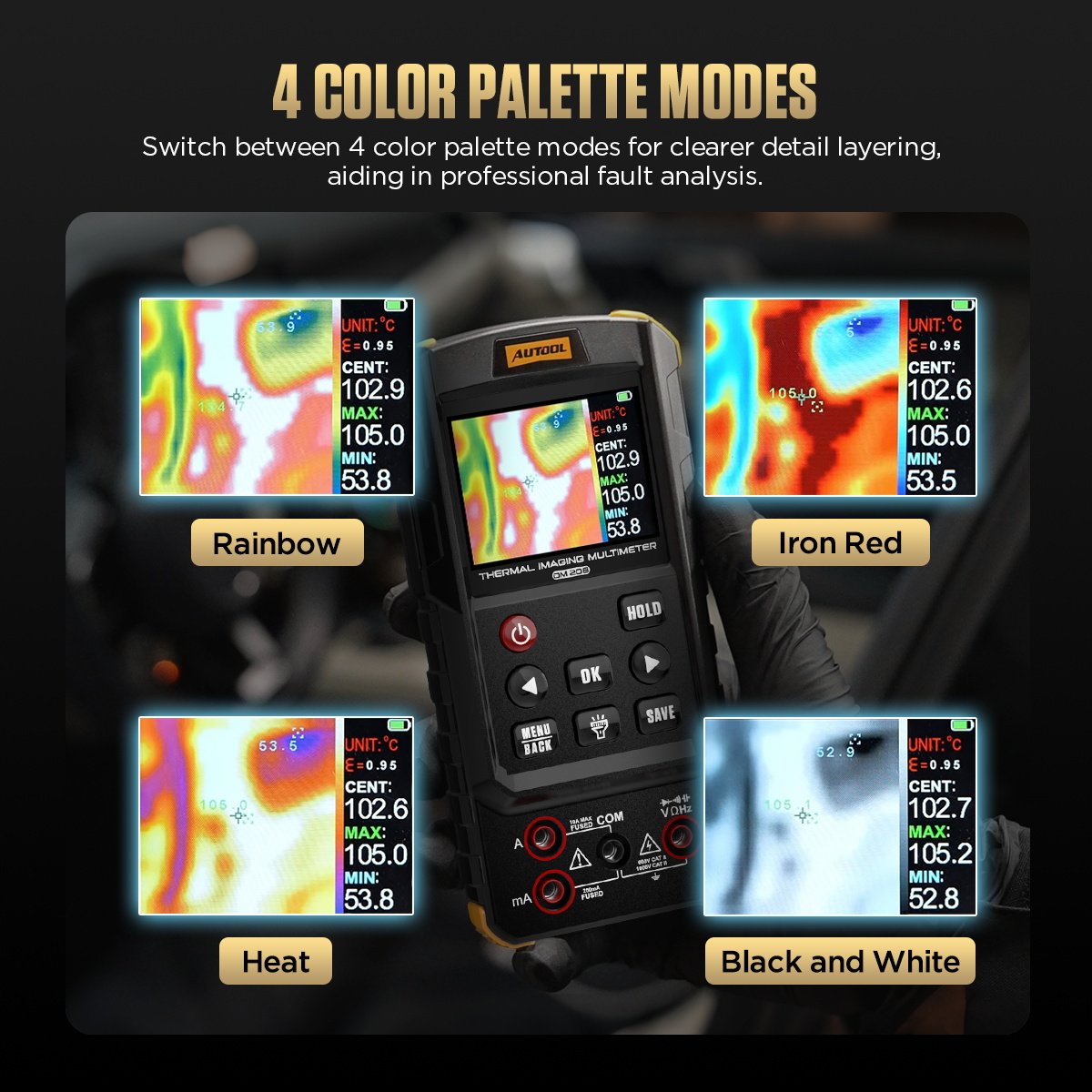

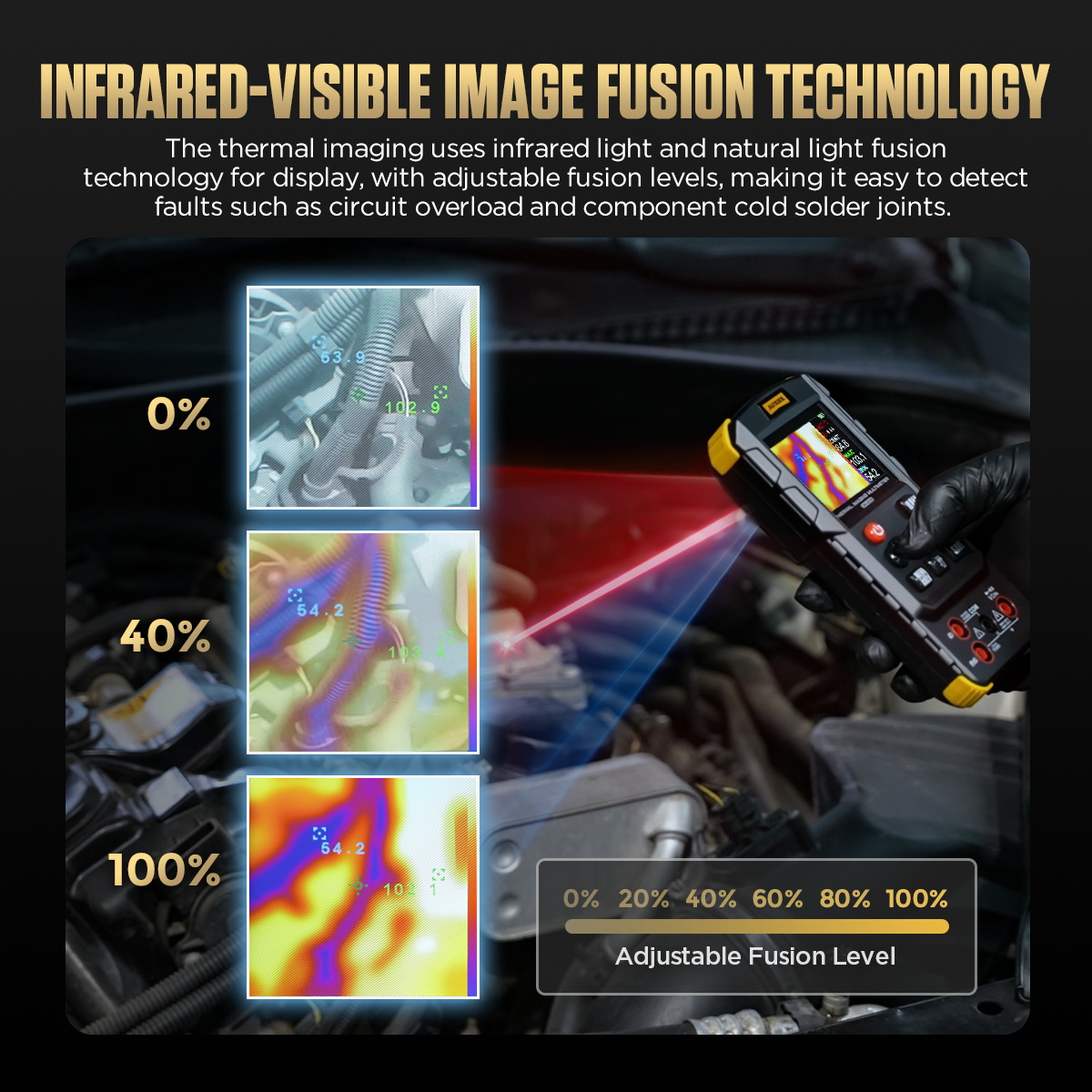

Dual-Light Fusion Display with 4 Color Palettes:The DM208 supports a temperature measurement range of -20°C to 550°C and provides 4 color palette modes to meet different testing and analysis needs.

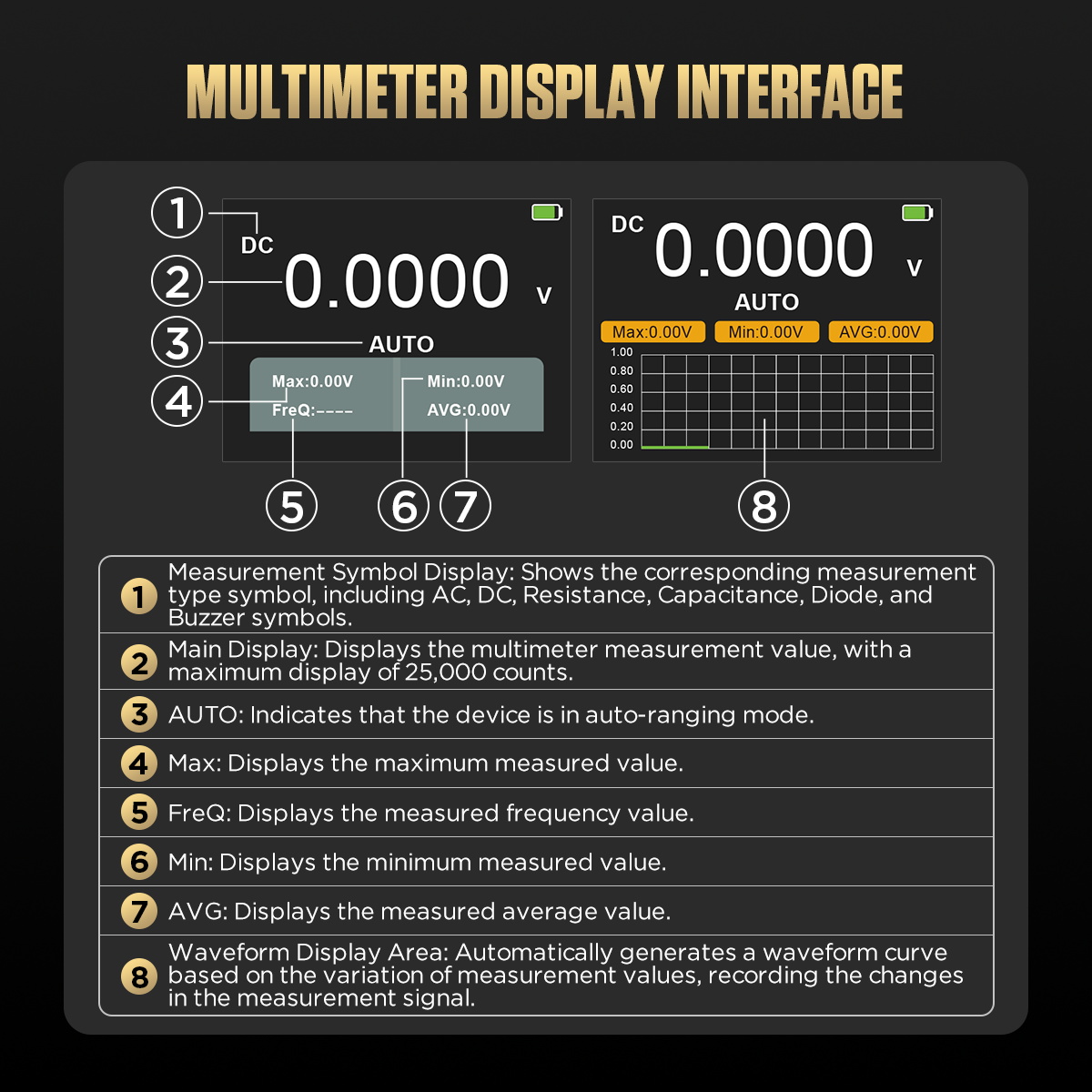

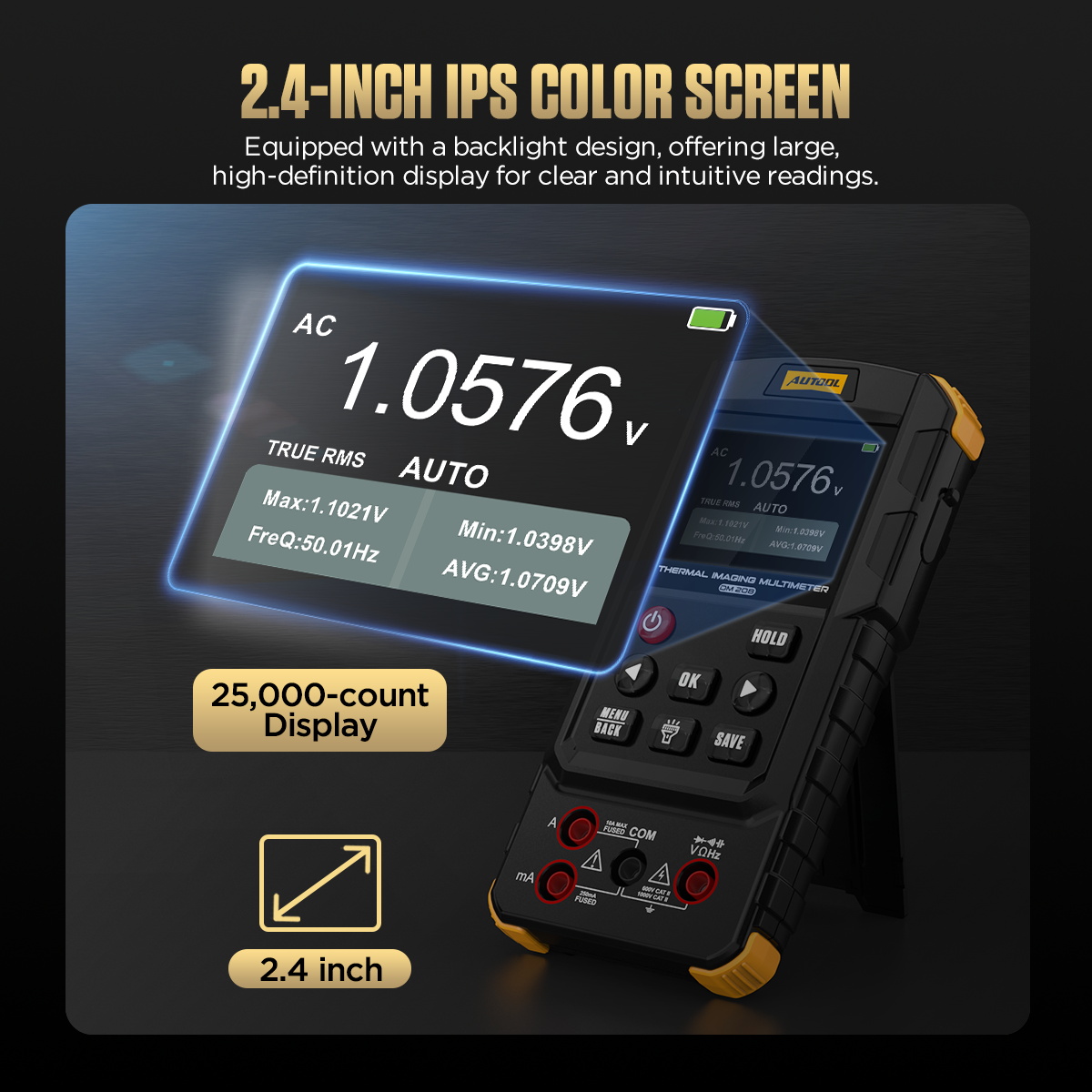

2.4-Inch IPS Color Display:The DM208 features a 2.4-inch backlit display with a resolution of 320 × 240. It supports a 25,000-count high-precision display and can simultaneously show measurement values and waveform curves.

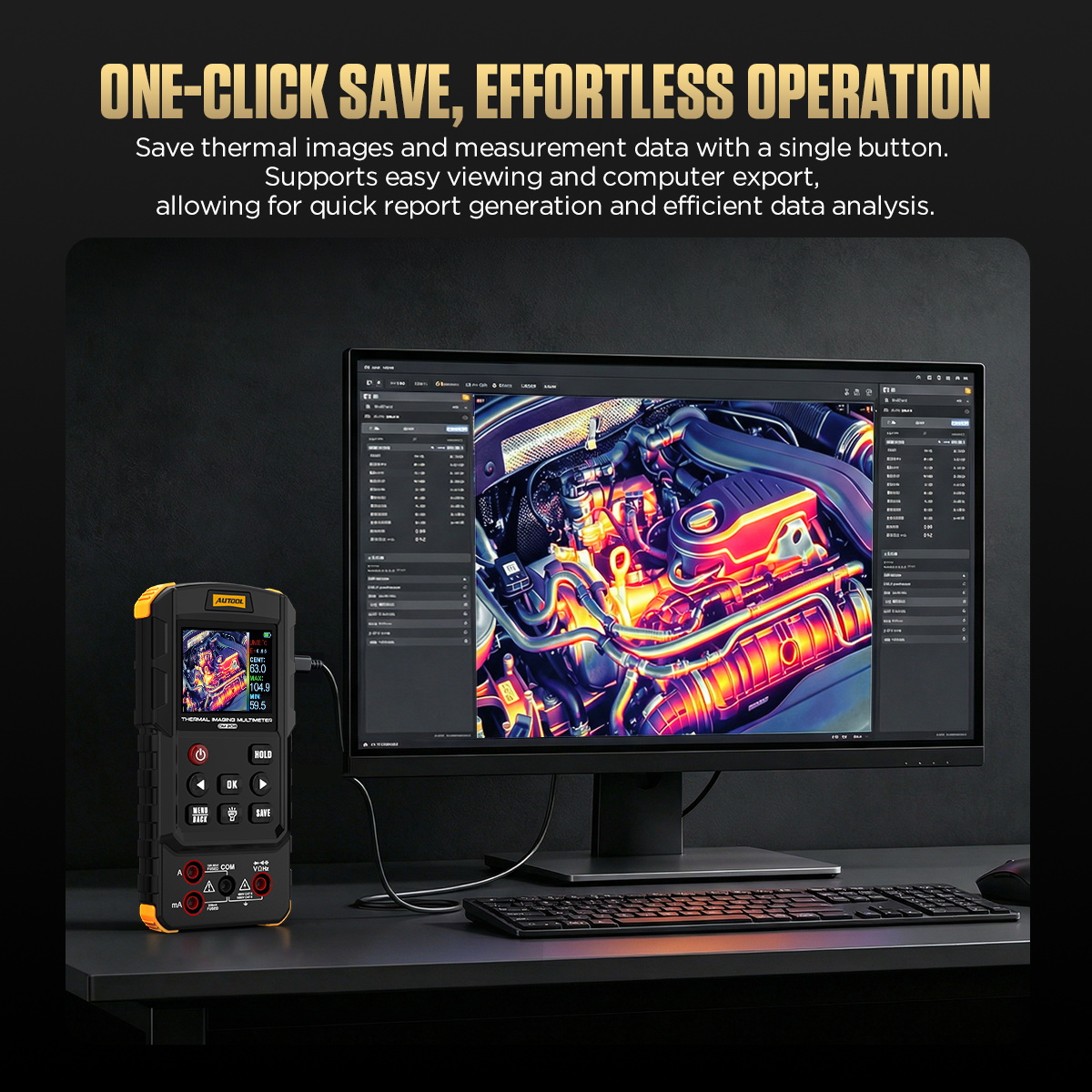

One-Touch Image and Data Saving:The DM208 supports one-touch saving of thermal images and measurement data for easy playback on the device. It can also be connected to a computer for viewing and analysis, making data recording and review more convenient.

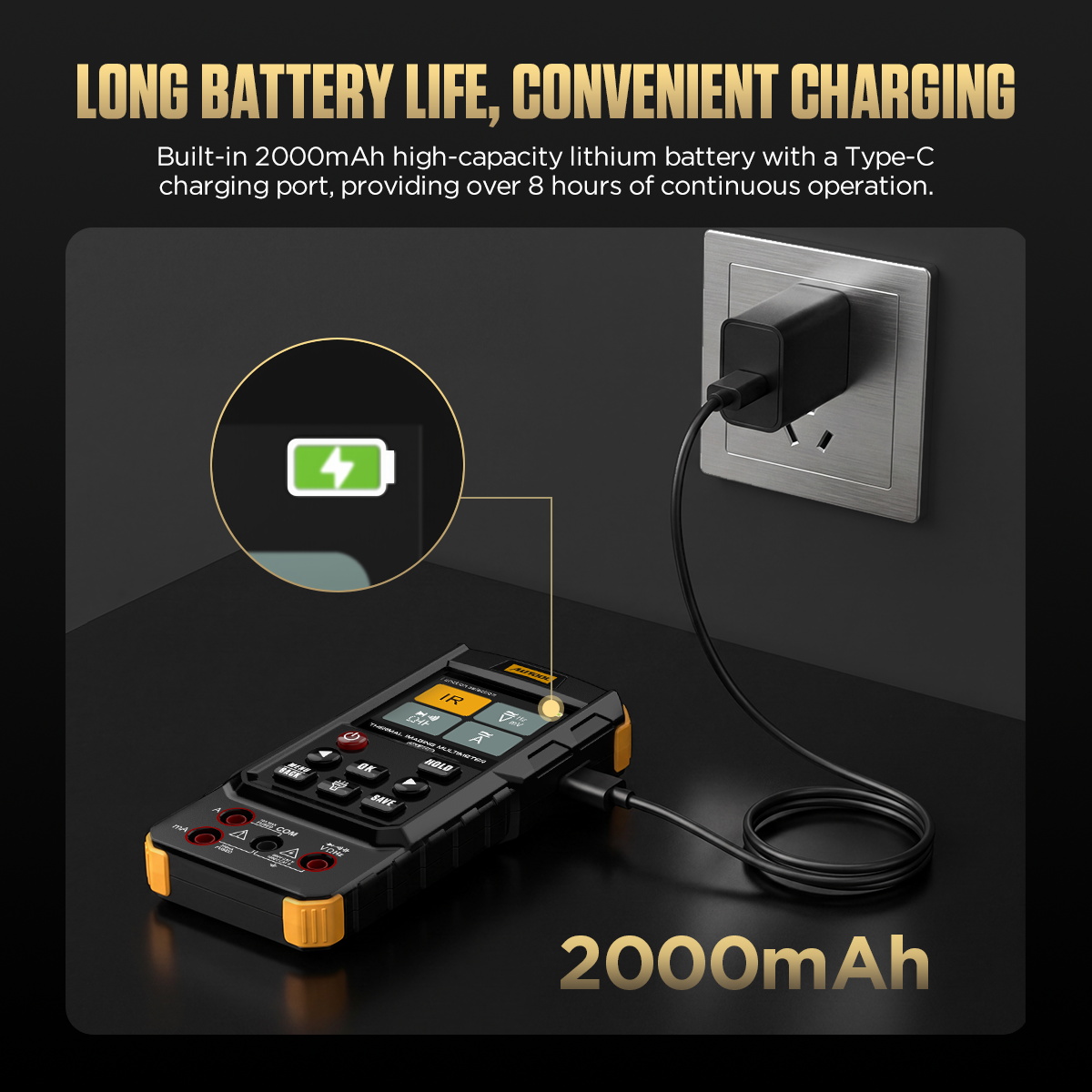

Long Battery Life and Convenient Charging:The DM208 is equipped with a built-in 2000mAh lithium battery for extended use. The Type-C interface supports fast charging, allowing the battery to be quickly recharged when needed.

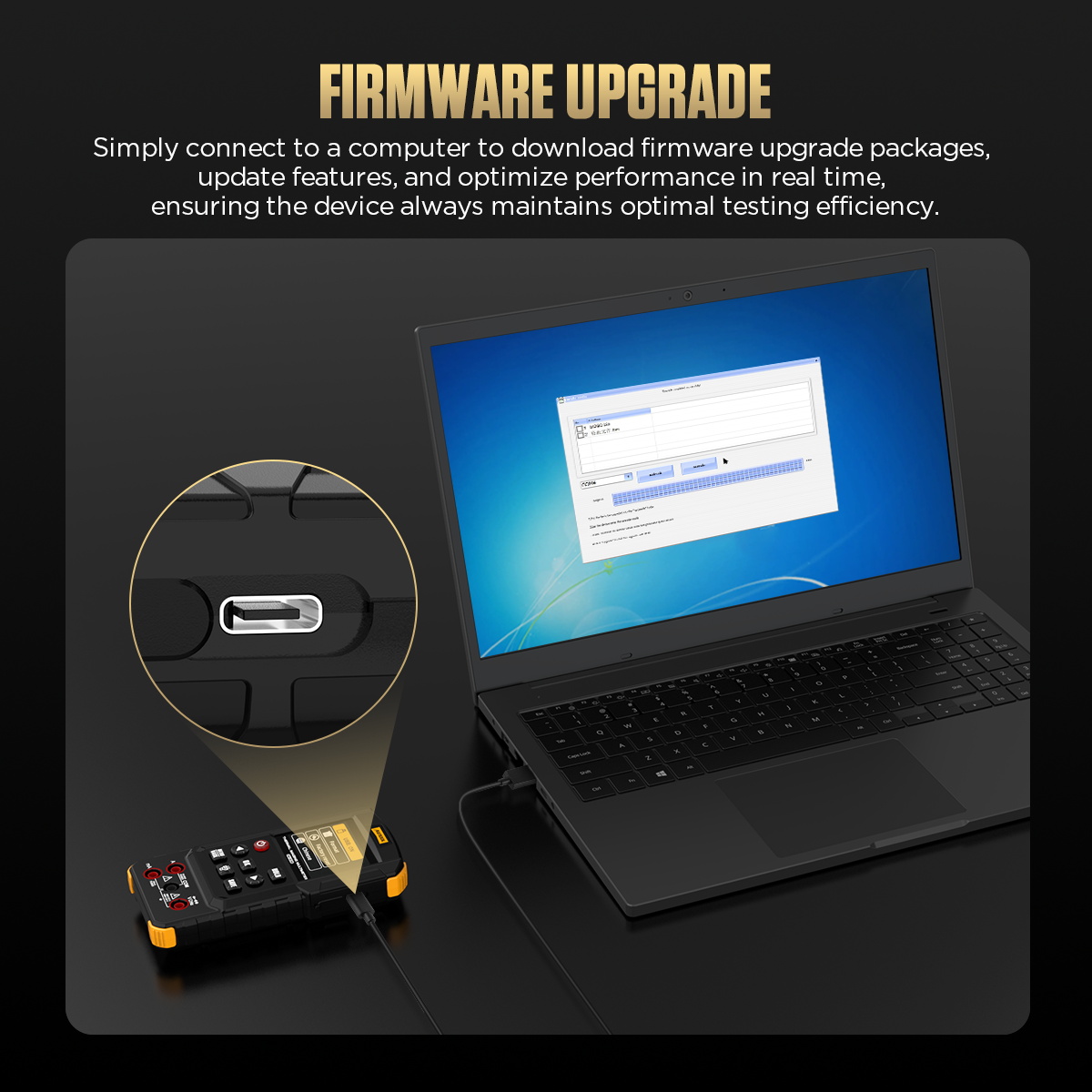

Firmware Upgrade:The DM208 supports firmware upgrades by connecting to a computer via Type-C, allowing continuous optimization of device performance and functions.

3-Year Warranty:For equipment damage caused by non-human factors, AUTOOL provides free replacement parts within three years. If you encounter any issues, please contact us at any time. We will respond promptly within 24 hours. We are committed to taking responsibility for our products, customers, and partners.

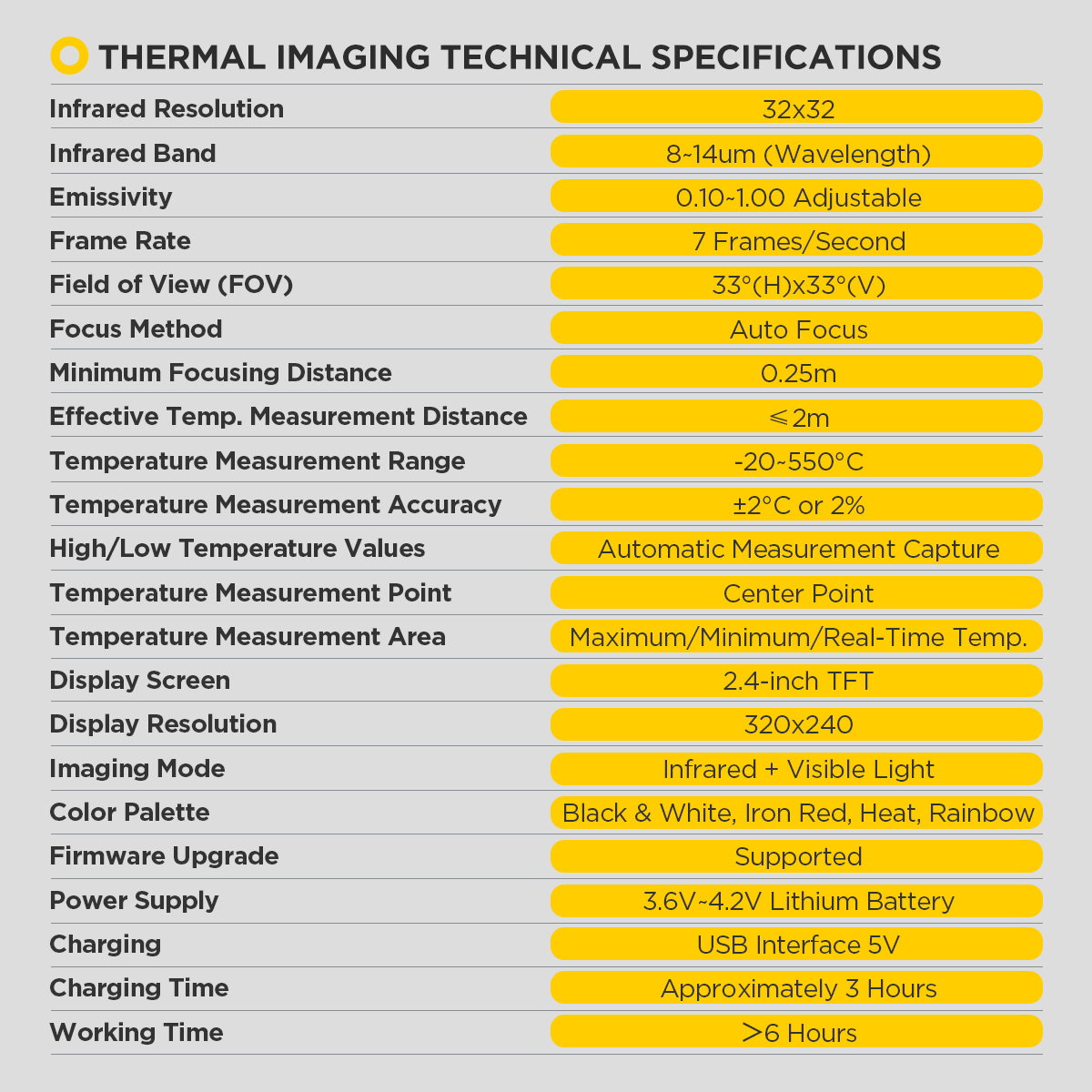

DM208
Infrared Resolution 32×32
Infrared Band 8~14um(Wavelength)
Emissivity 0.10~1.00 Adjustable
Frame Rate 7 Frames/Second
Field of View(FOV) 33°(H)×33°(V)
Focus Method Auto Focus
Minimum Focusing Distance 0.25m
Effective Temp.Measurement Distance ≤2m
Temperature Measurement Range -20~550℃
Temperature Measurement Accuracy ±2C or 2%
High/Low Temperature Values Automatic Measurement Capture
Temperature Measurement Point Center Point
Temperature Measurement Area Maximum/Minimum/Real-Time Temp.
Display Screen 2.4-inch TFT
Display Resolution 320×240
Imaging Mode Infrared +Visible Light
Color Palette Black &White,Iron Red,Heat,Rainbow
Firmware Upgrade Supported
Power Supply 3.6V~4.2V Lithium Battery
Charging USB Interface 5V
Charging Time Approximately 3 Hours
Working Time >6 Hours
