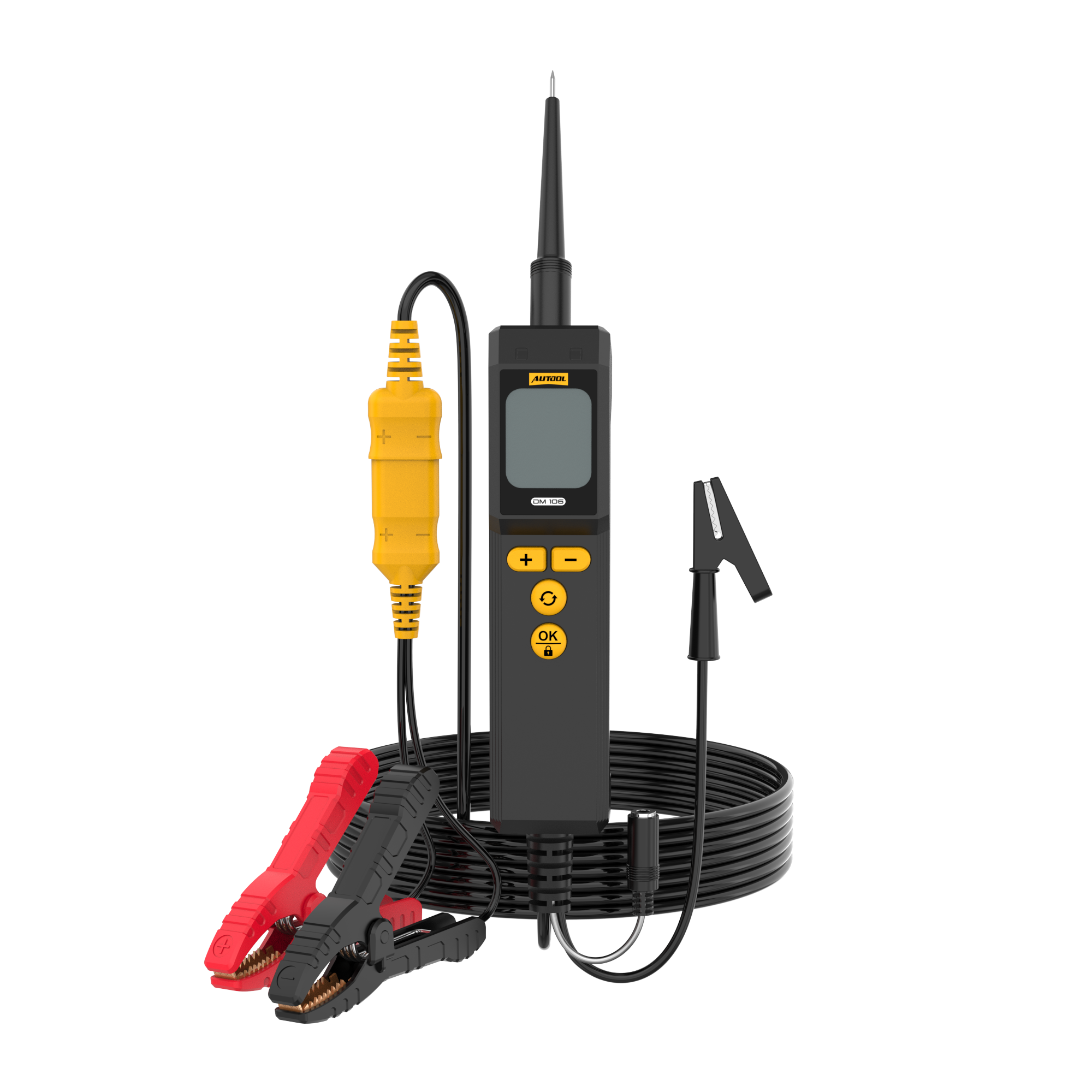

AUTOOL DM106 Automotive Circuit Tester Features
Quickly Locate Electrical Circuit Faults:No complicated disassembly is required. Quickly check circuit conditions, component performance, and power supply status. Whether you are dealing with poor connections, short circuits, open circuits, or faults involving sensors, motors, and actuators, AUTOOL DM106 makes diagnosis quick and easy.
Applications:Automotive Circuit Testing | Fuse Testing | Relay Testing | Sensor Testing | Motor Testing | ECU Peripheral Circuit Diagnosis
DC Voltage Testing:Quickly measure DC voltage in vehicle circuits. Simply touch the test probe to the point under test to display the current, maximum, and minimum voltage values in real time, helping you quickly determine whether the power supply is functioning properly.
AC Voltage Testing:Precisely measure AC circuit parameters and display RMS voltage, positive half-cycle peak voltage, negative half-cycle peak voltage, frequency, and duty cycle, providing a comprehensive view of circuit operating conditions.
Diode & Continuity Testing:Quickly determine component operating conditions by testing diode forward voltage drop, circuit continuity, and wire connection status.
Resistance Testing:Precisely measure the resistance of circuits and components while displaying the current, maximum, and minimum resistance values in real time. This helps identify circuit aging, poor connections, and damaged components.
Capacitance Testing:Quickly measure capacitance parameters and display the current, maximum, and minimum capacitance values in real time, helping determine whether a capacitor has failed or experienced performance degradation.
Temperature Testing:Display the maximum and minimum temperature values simultaneously to help assess whether electrical components are operating abnormally.
Temperature Measurement Range:-20°C to 350°C
Multi-Range Voltage Output Testing:Supports 3V / 5V / 12V / 24V voltage output for direct activation of automotive components without requiring an additional power supply. It can activate fan motors, relays, solenoid valves, vehicle lights, and actuators while displaying the operating current in real time, helping you quickly verify whether the component is functioning properly.
Applicable Components:Fan Motors | Relays | Solenoid Valves | Vehicle Lights | Actuators
Built-In Short-Circuit Protection for Enhanced Safety:When an overload or short circuit occurs, the built-in overload protection system automatically disconnects and restarts the circuit, effectively protecting both the tester and the vehicle’s electrical system while reducing the risk of equipment damage caused by improper operation.
