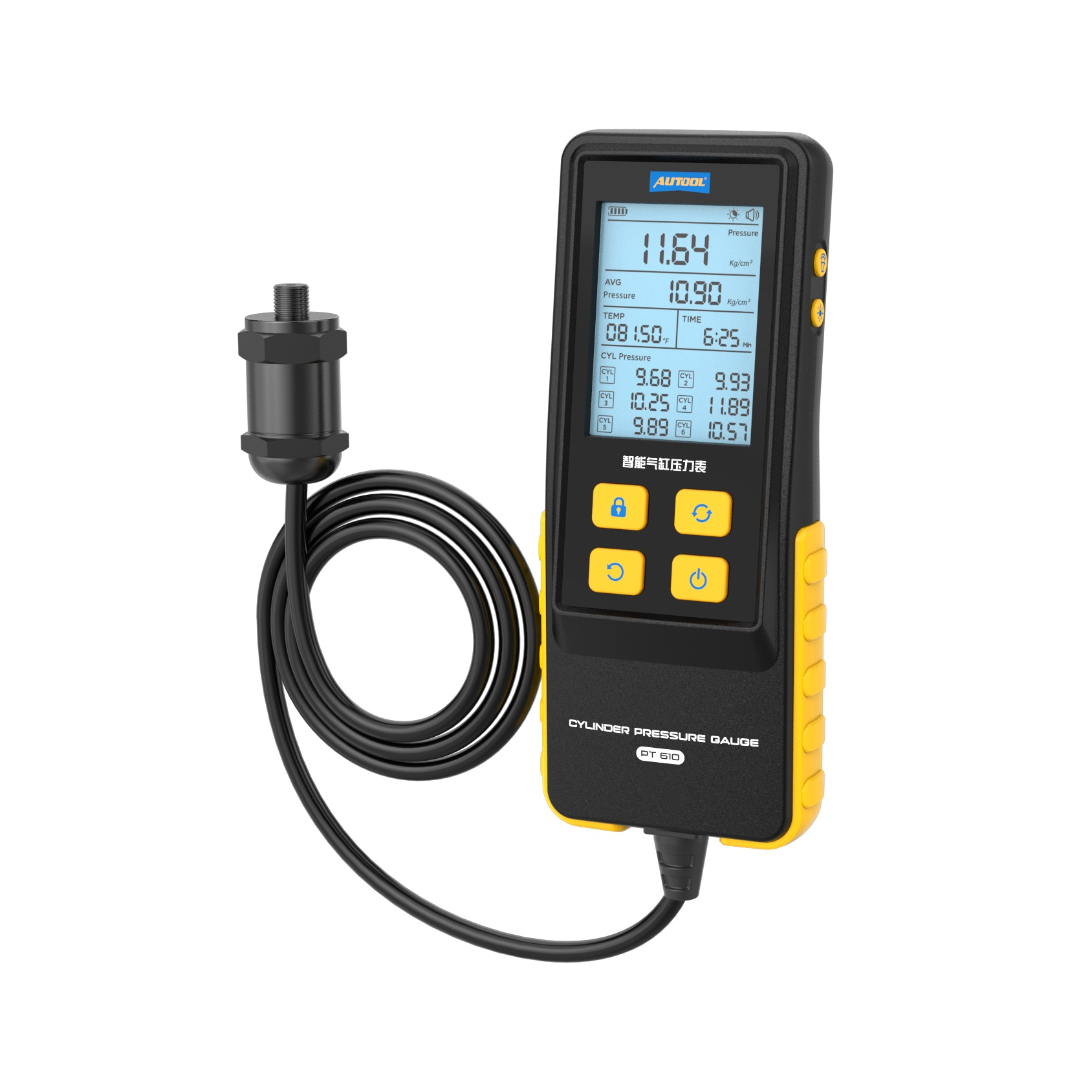

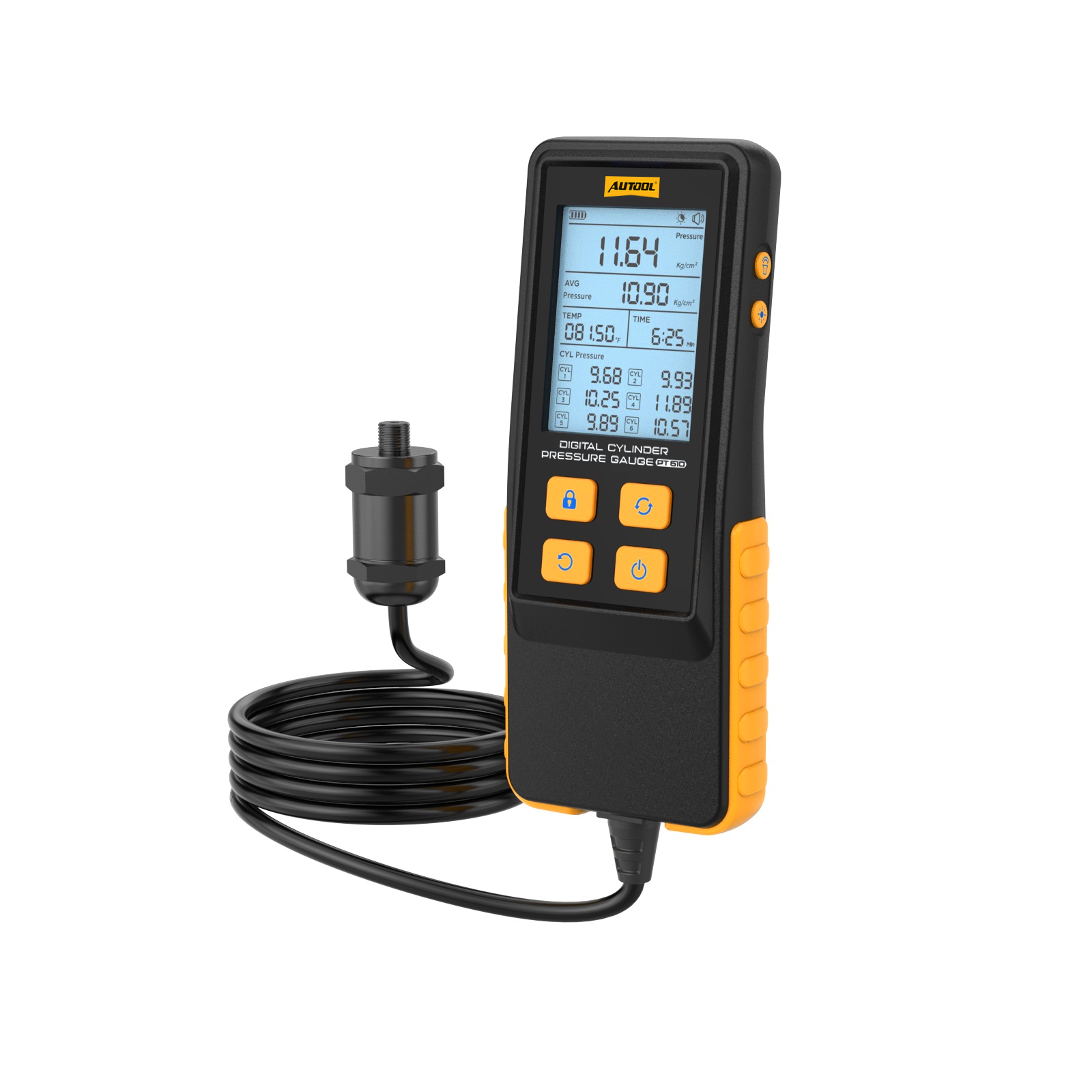

PT610Digital Cylinder Pressure Gauge

Product Features

Measurement Accuracy: Measurement values are displayed to two decimal places.

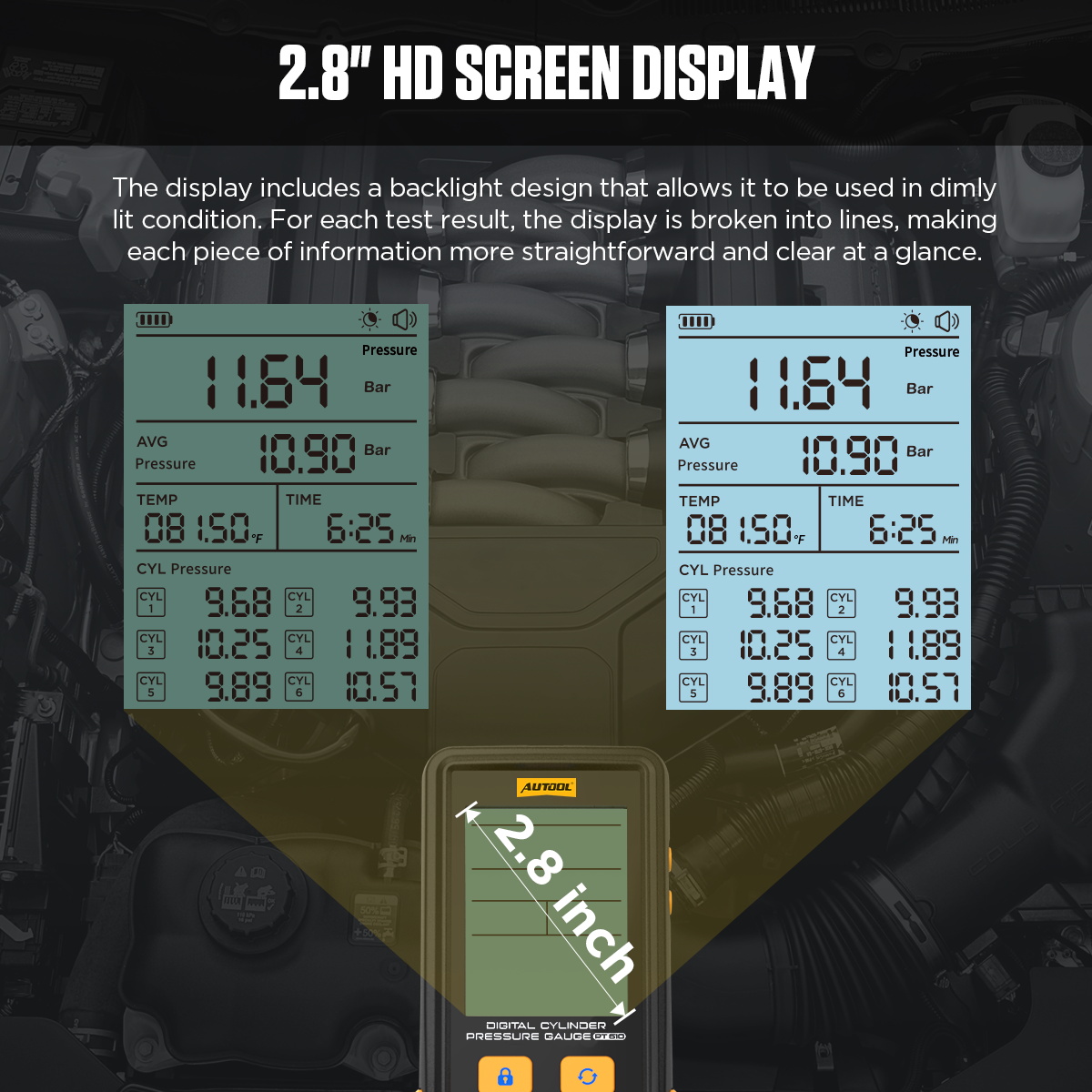

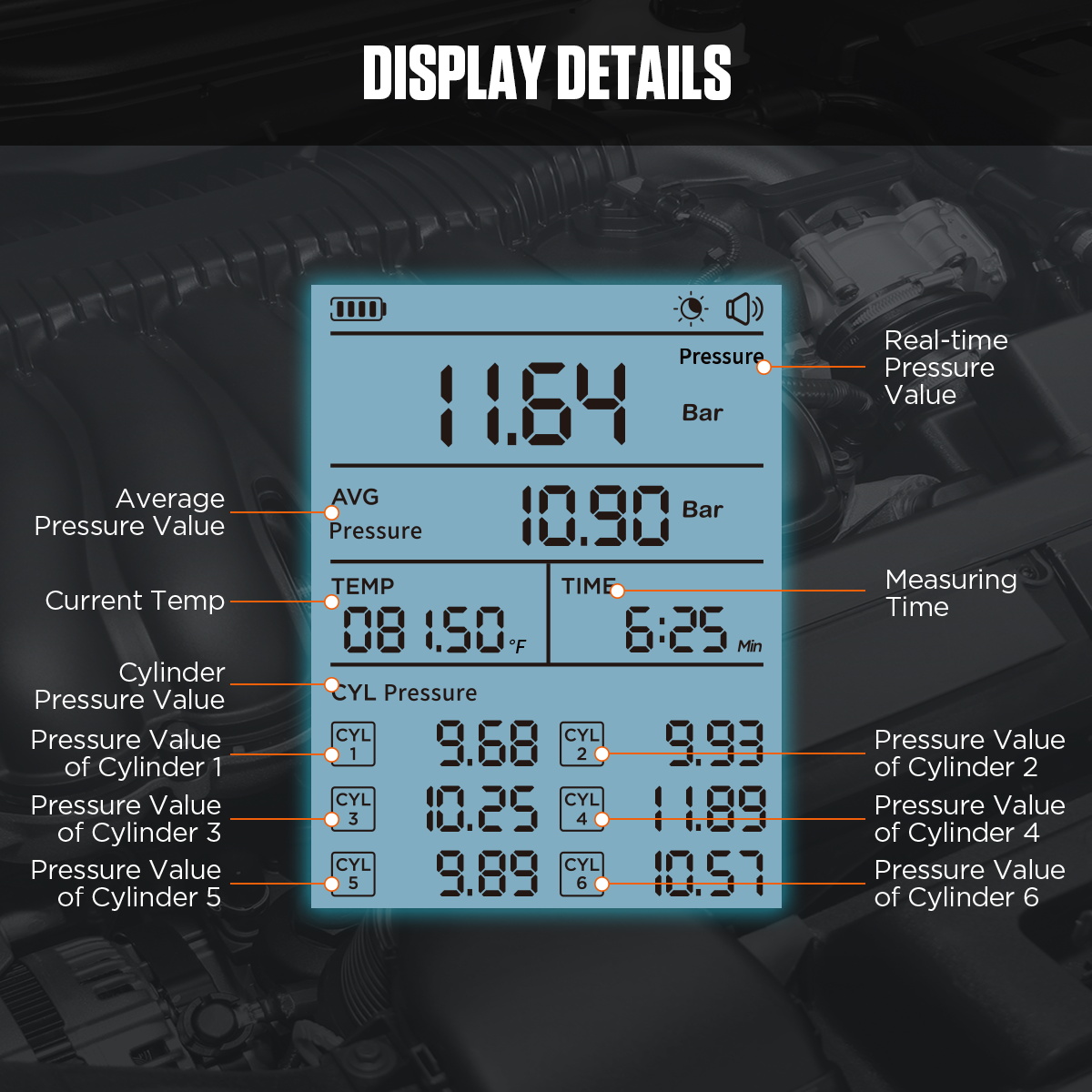

Smart Digital Pressure Gauge: It features a clear digital display that simultaneously shows real-time pressure, average pressure, current temperature, and measurement time.

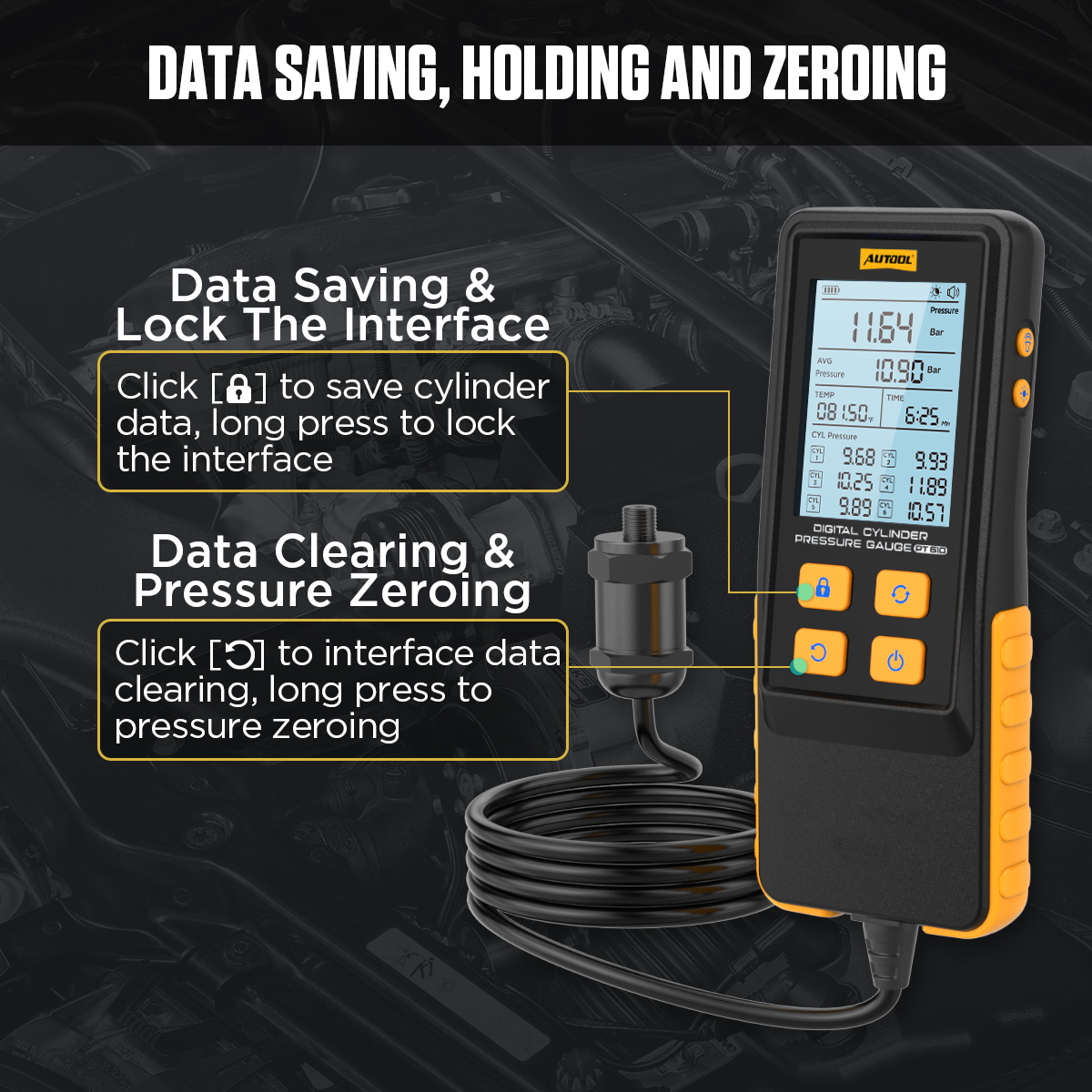

Data Storage: During testing, the device can save average pressure readings for up to six cylinders (CYL1 to CYL6) in the order in which they are tested. This independent data storage function makes it easy to record and compare pressure readings across cylinders, helping technicians pinpoint potential engine faults more efficiently.

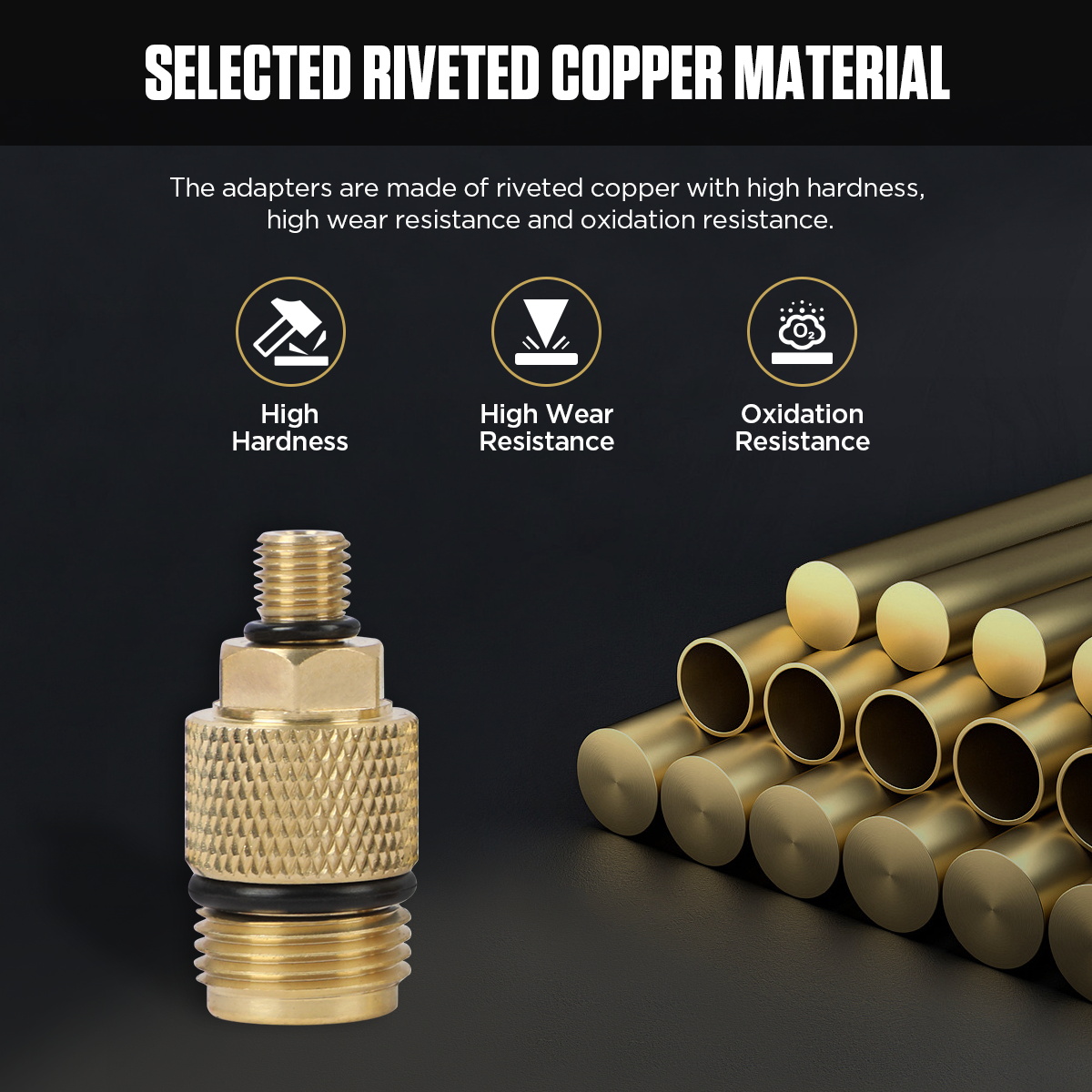

Premium Riveted Copper Construction: Rust- and corrosion-resistant for long-lasting durability. Equipped with copper fittings and a sturdy 78.7-inch rubber hose that withstands pressure, high temperatures, and bending.

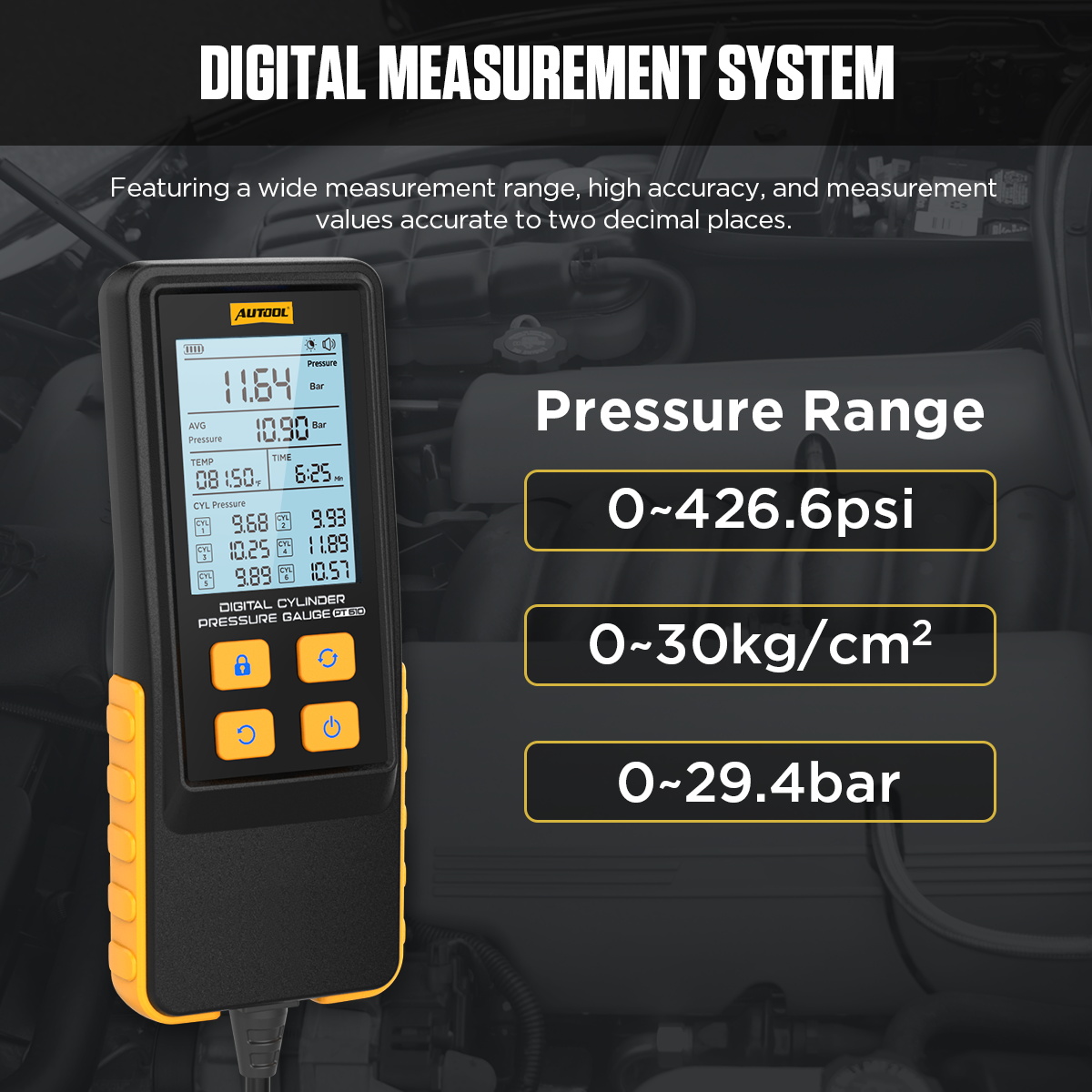

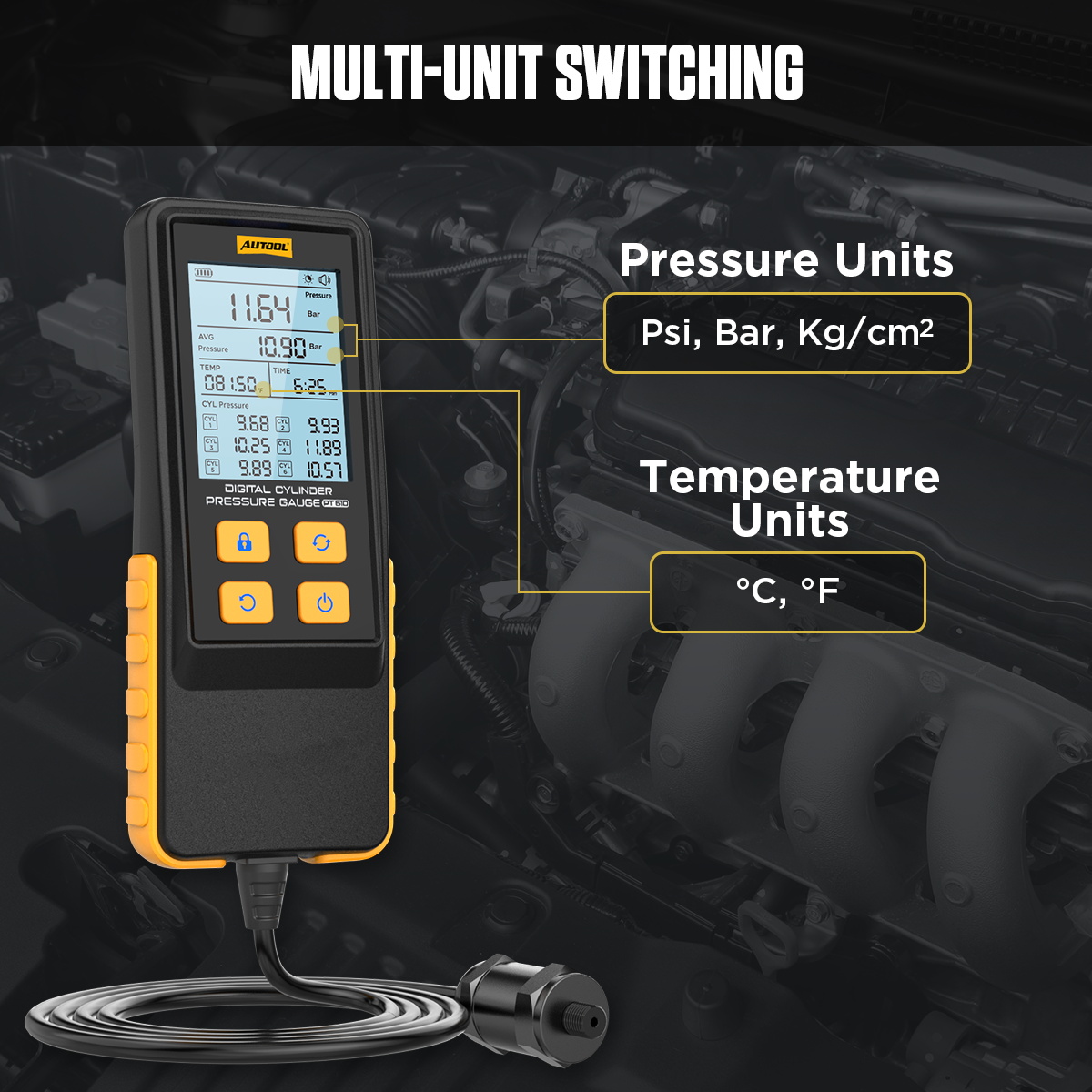

Quick and Easy Readout: Switch between PSI, Bar, and kg/cm² using the buttons. Measurement range: 0–426.6 PSI / 0–29.4 bar / 0–30 kg/cm². Temperature units can be switched between °C and °F.

3-Year Warranty: For damage not caused by human factors, AUTOOL provides free replacement parts within three years. If you have any questions, please feel free to contact us. We will respond within 24 hours.

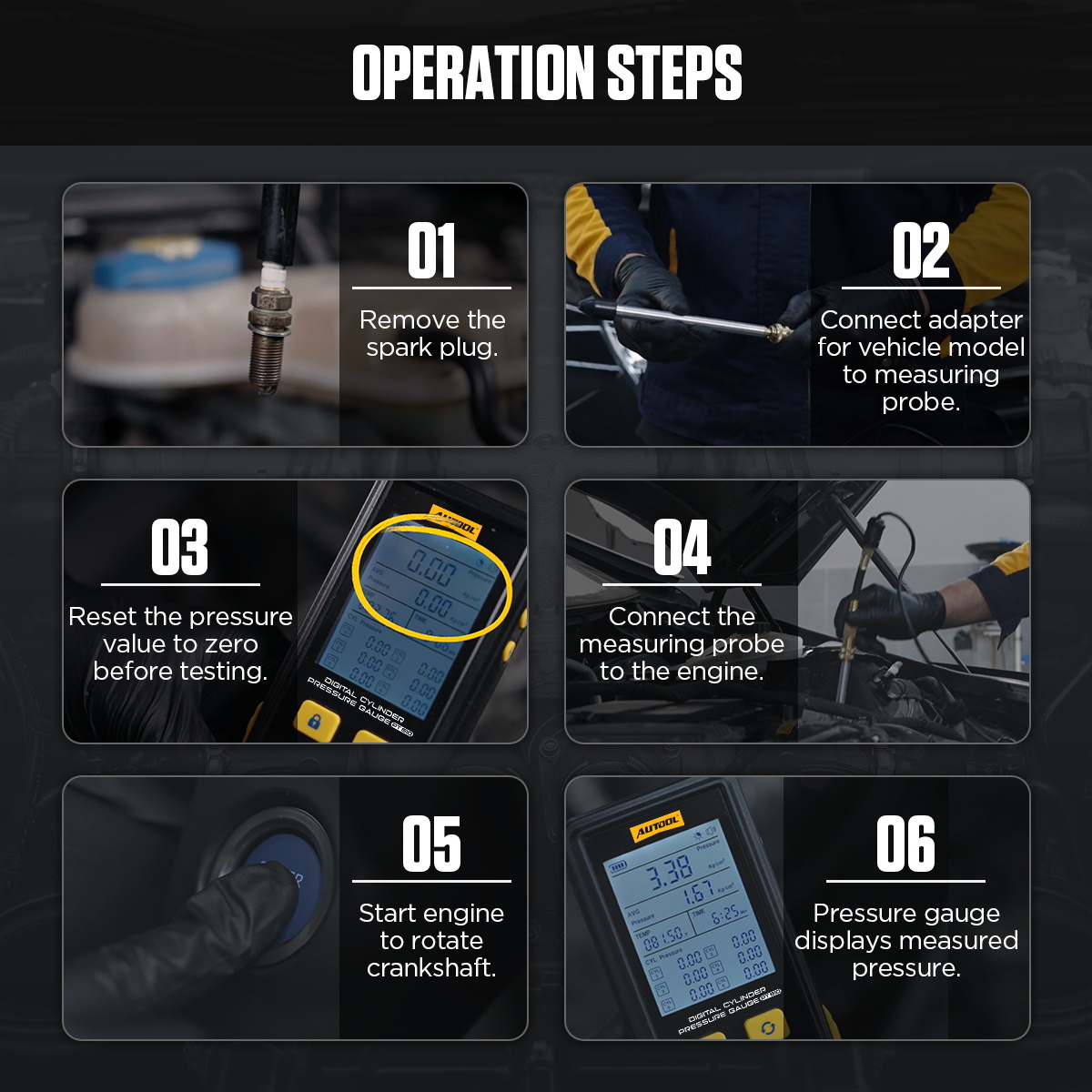

Operating Instructions

Step 1: Remove the spark plug.

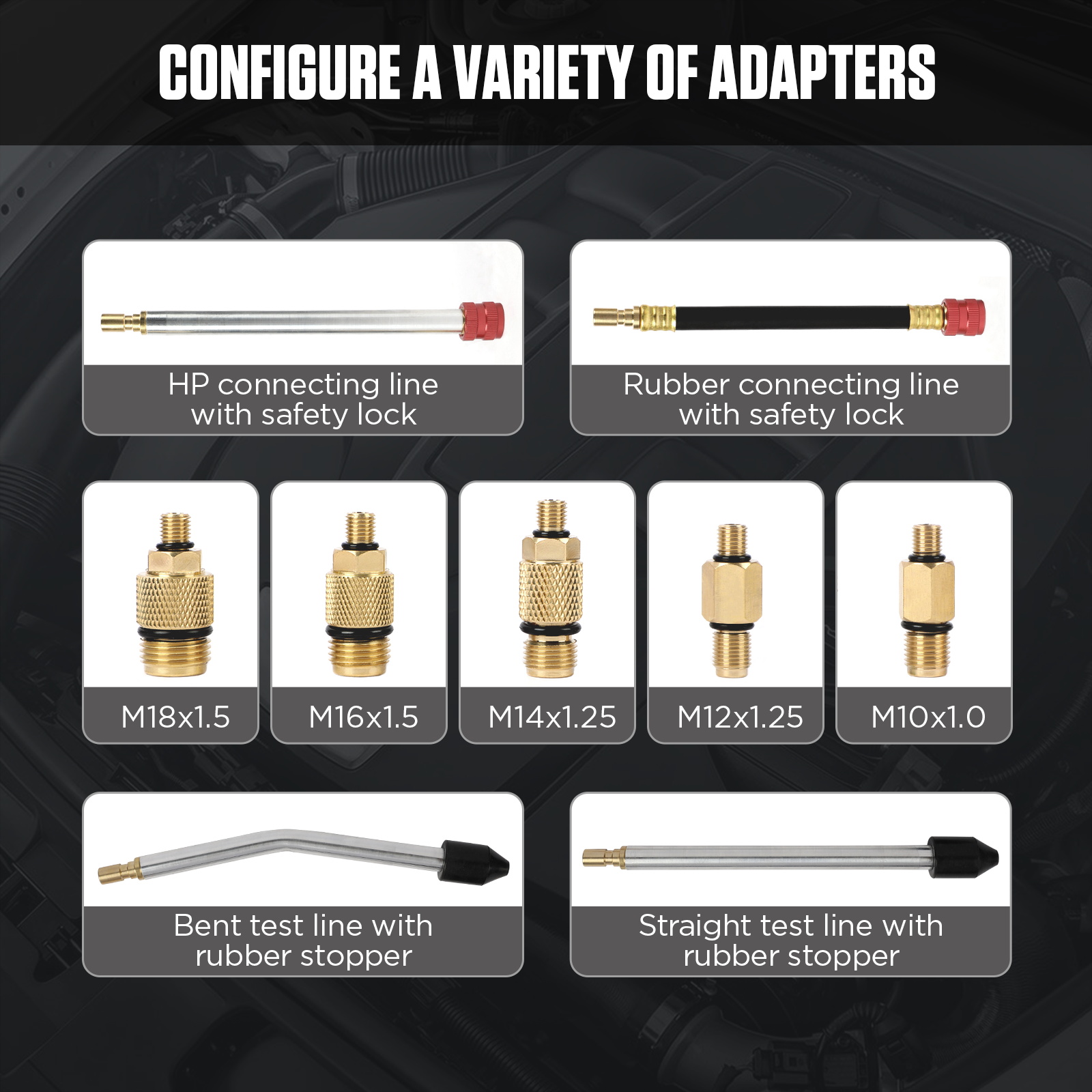

Step 2: Connect the vehicle-specific adapter to the test probe.

Step 3: Reset the pressure reading to zero before testing.

Step 4: Connect the test probe to the engine.

Step 5: Start the engine and allow the crankshaft to rotate.

Step 6: The pressure gauge displays the measured pressure.
