Oil Drain Container Working Principle

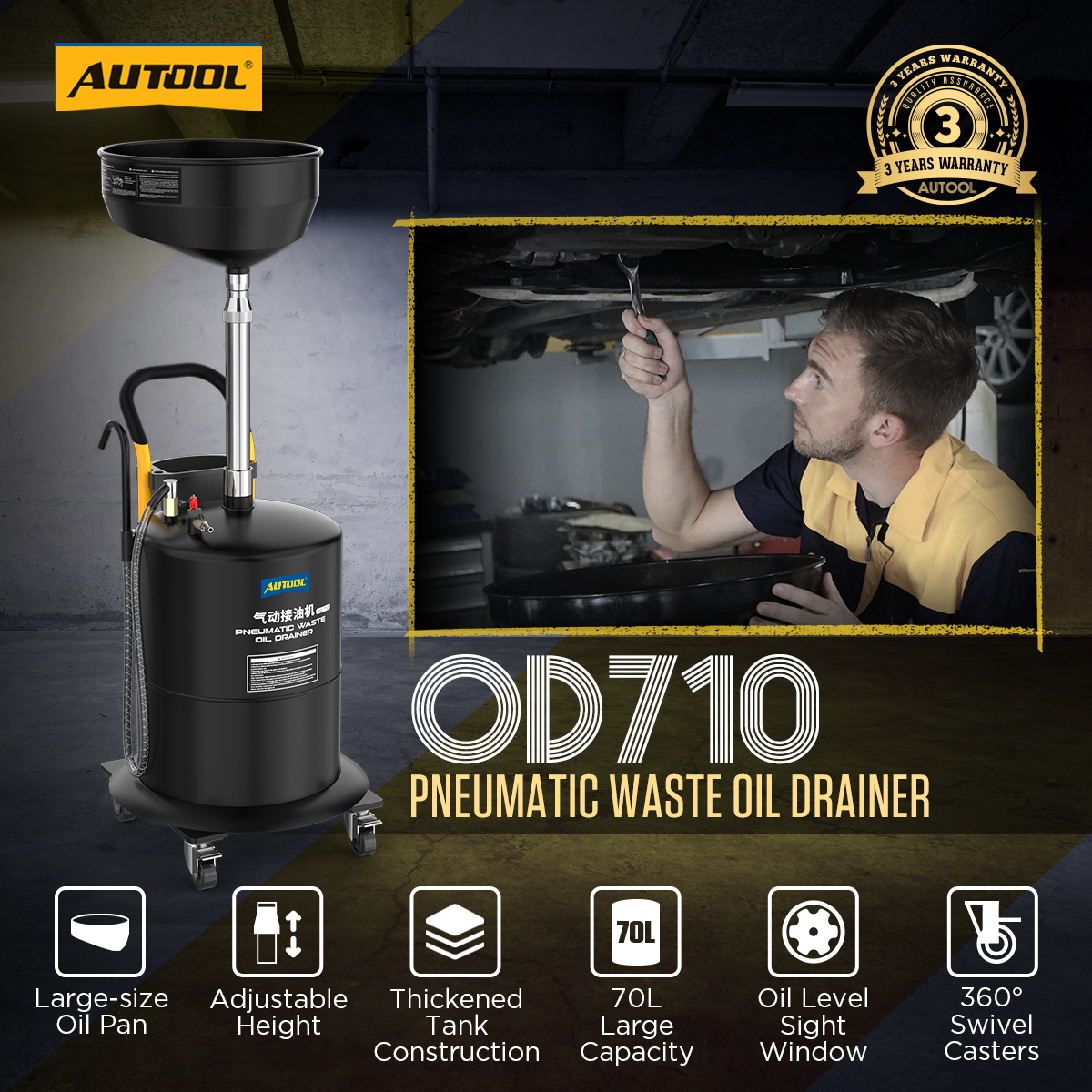

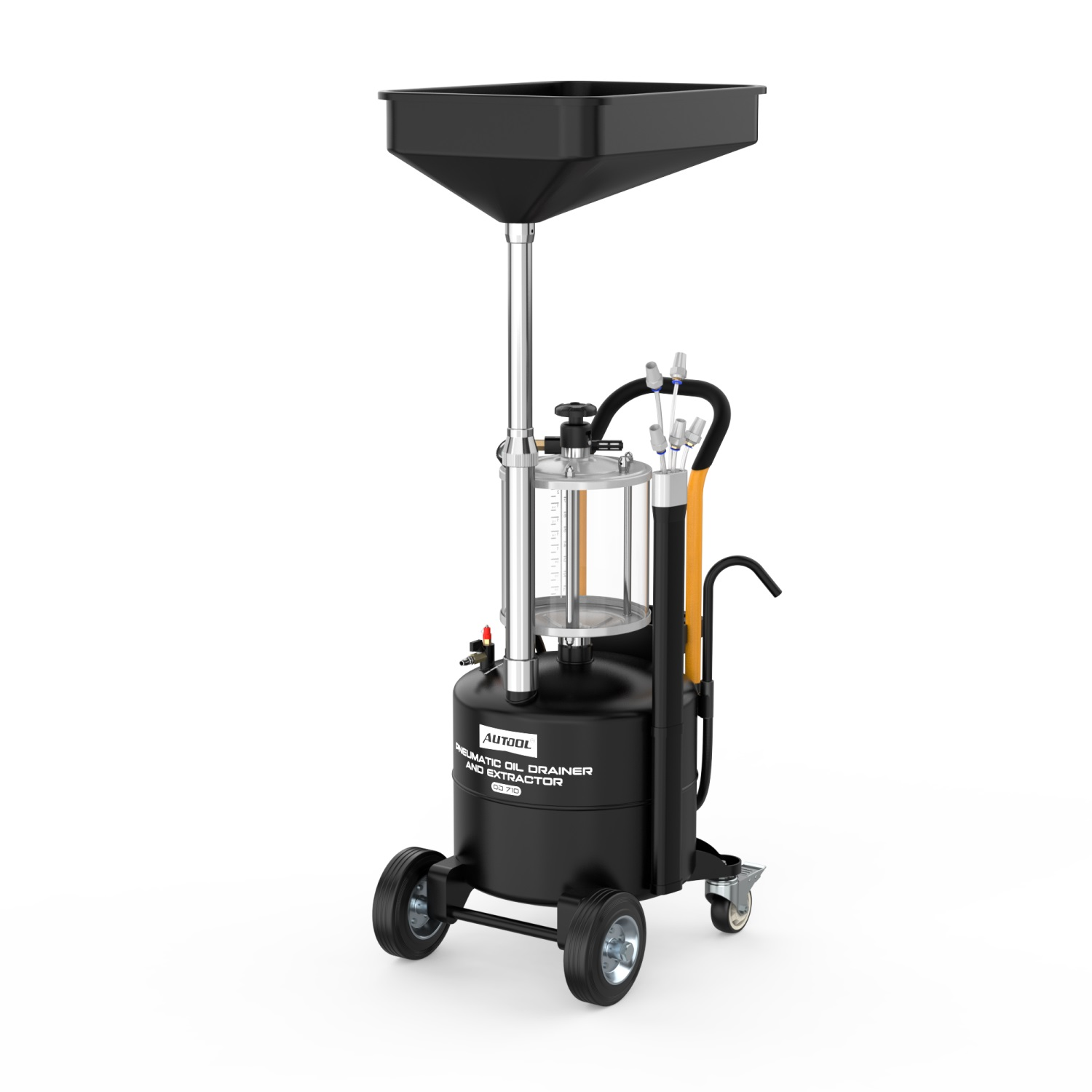

The AUTOOL OD710 Pneumatic Oil Extractor uses compressed air to power a vacuum generator, quickly creating negative pressure inside the waste oil tank within approximately 3 minutes. This vacuum efficiently extracts used fluids from vehicle engines, transmissions, and cooling systems into the storage tank.
Compared with traditional electric oil extraction equipment, its pneumatic system provides lower energy consumption and improved efficiency, making it a practical choice for modern automotive repair workshops.
Features of AUTOOL OD710 Pneumatic Oil Extractor

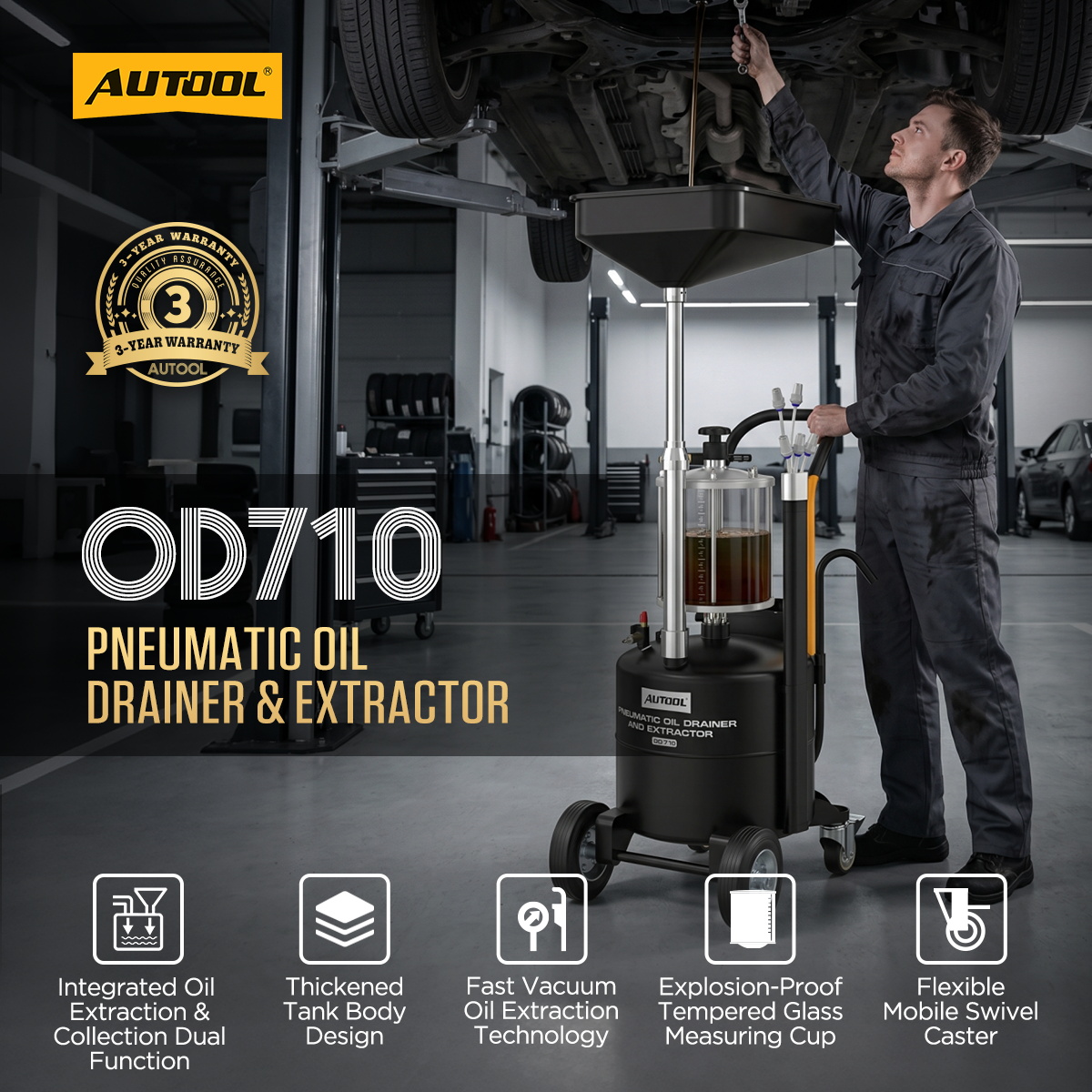

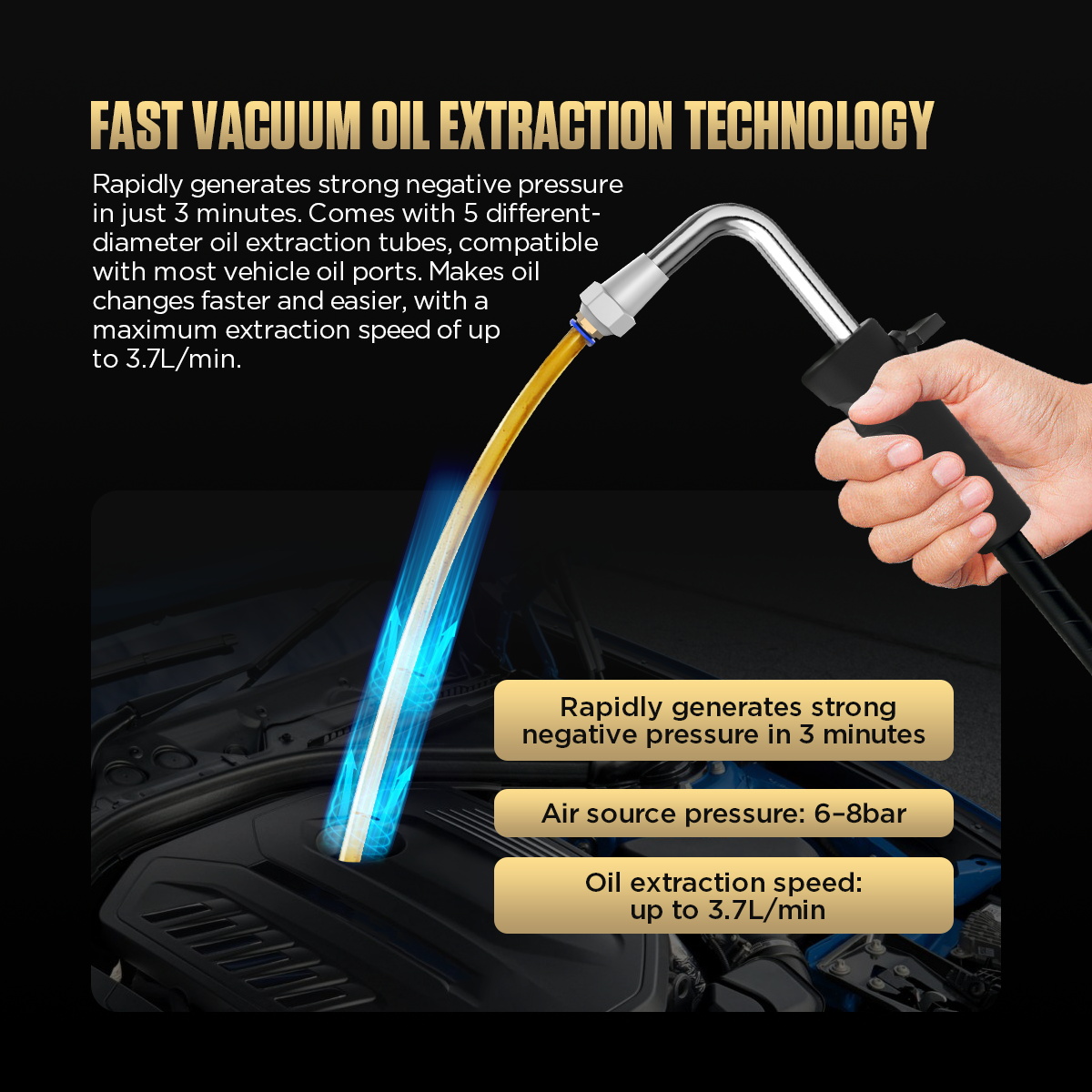

Fast Vacuum Oil Extraction Technology:The unit generates strong negative pressure within 3 minutes and comes with 5 oil extraction hoses in different diameters, allowing compatibility with most vehicle oil ports. With an extraction speed of up to 3.7L/min, it significantly reduces oil change time and improves work efficiency.

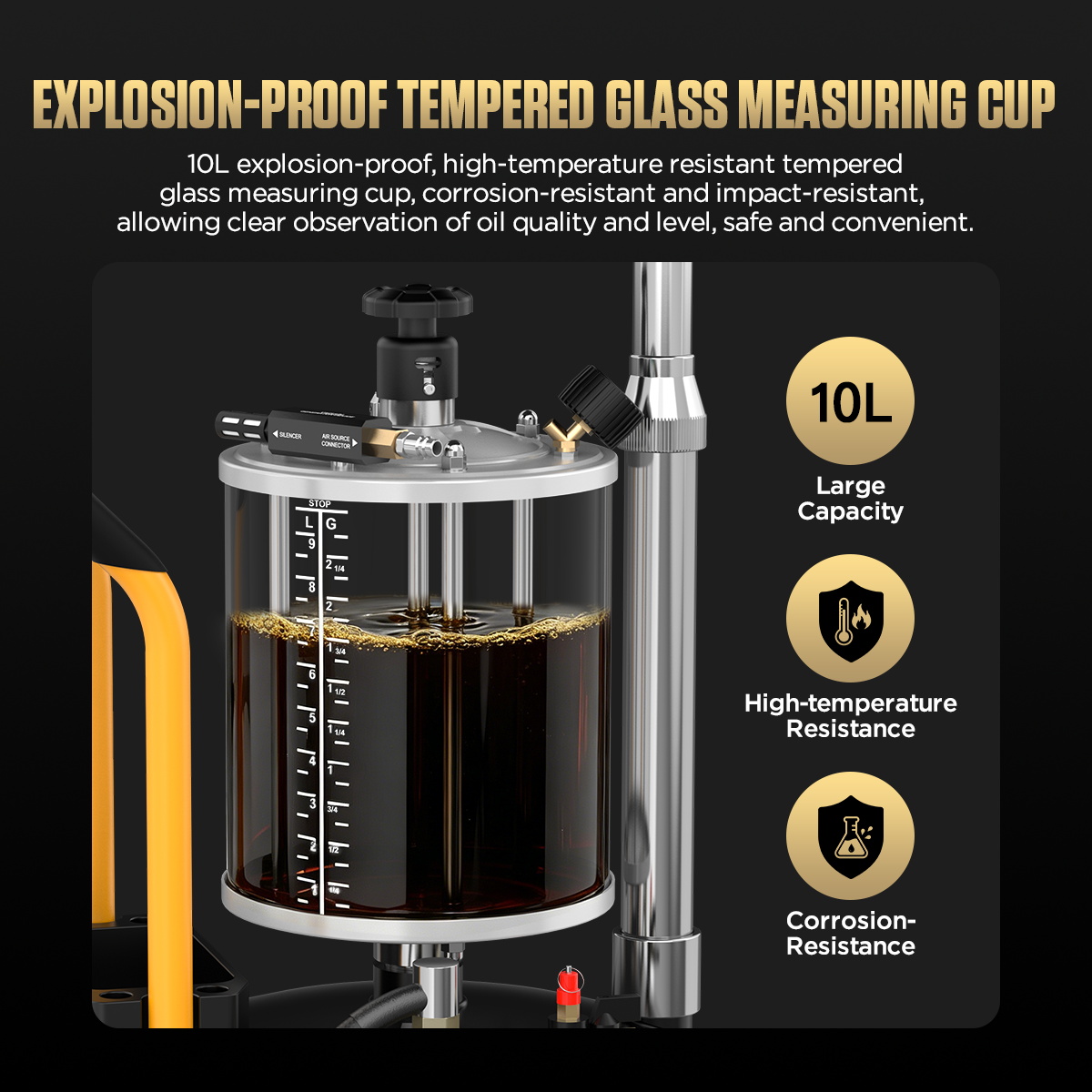

Explosion-Proof Tempered Glass Measuring Cup:Equipped with a 10L explosion-proof, high-temperature-resistant tempered glass measuring cup, the extractor provides excellent corrosion resistance and impact protection. Technicians can clearly observe fluid condition and volume during operation, ensuring safer and more convenient maintenance.

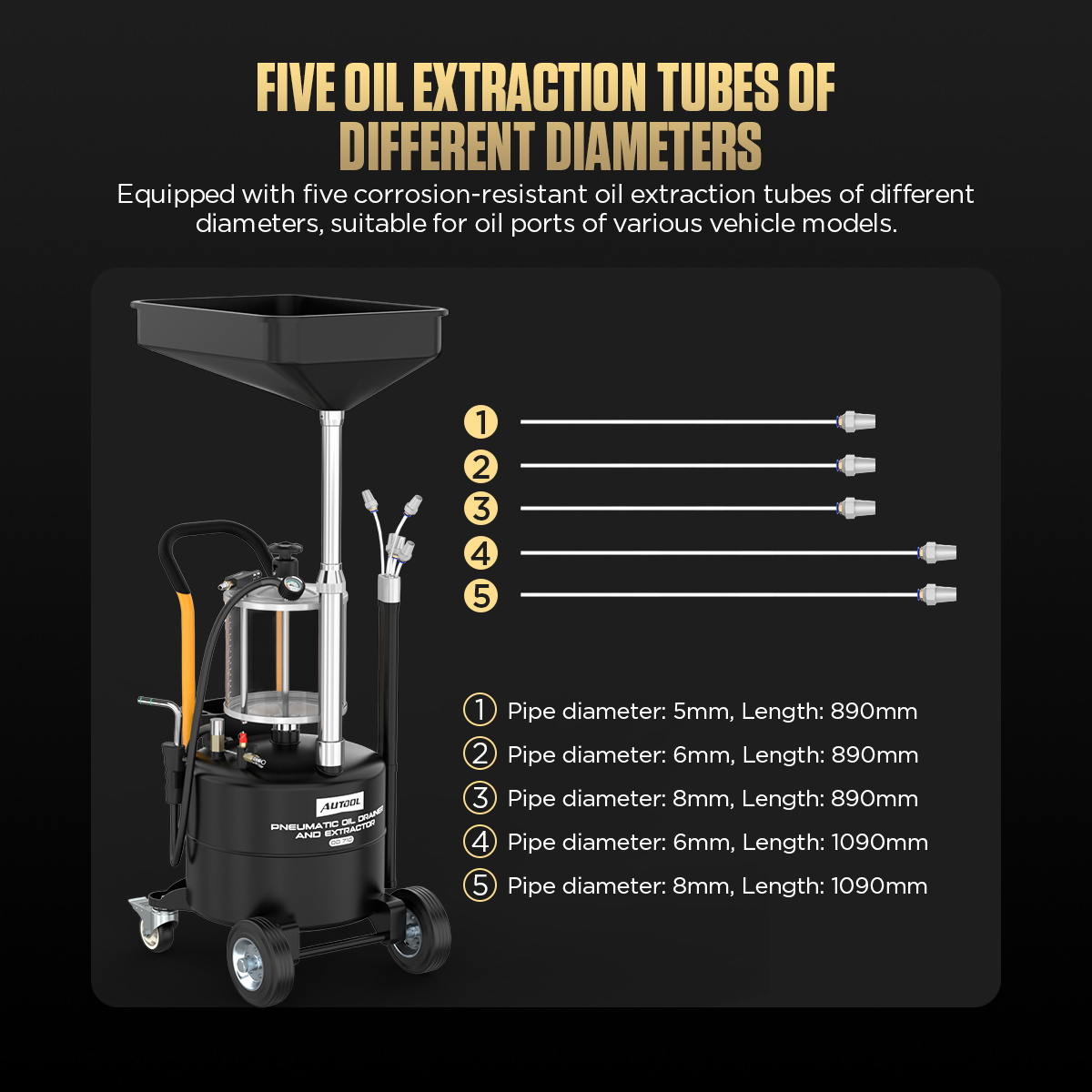

5 Oil Extraction Hoses for Various Vehicles:The unit includes 5 corrosion-resistant oil extraction hoses with different diameters, allowing flexible use across different vehicle models and oil inlet designs.

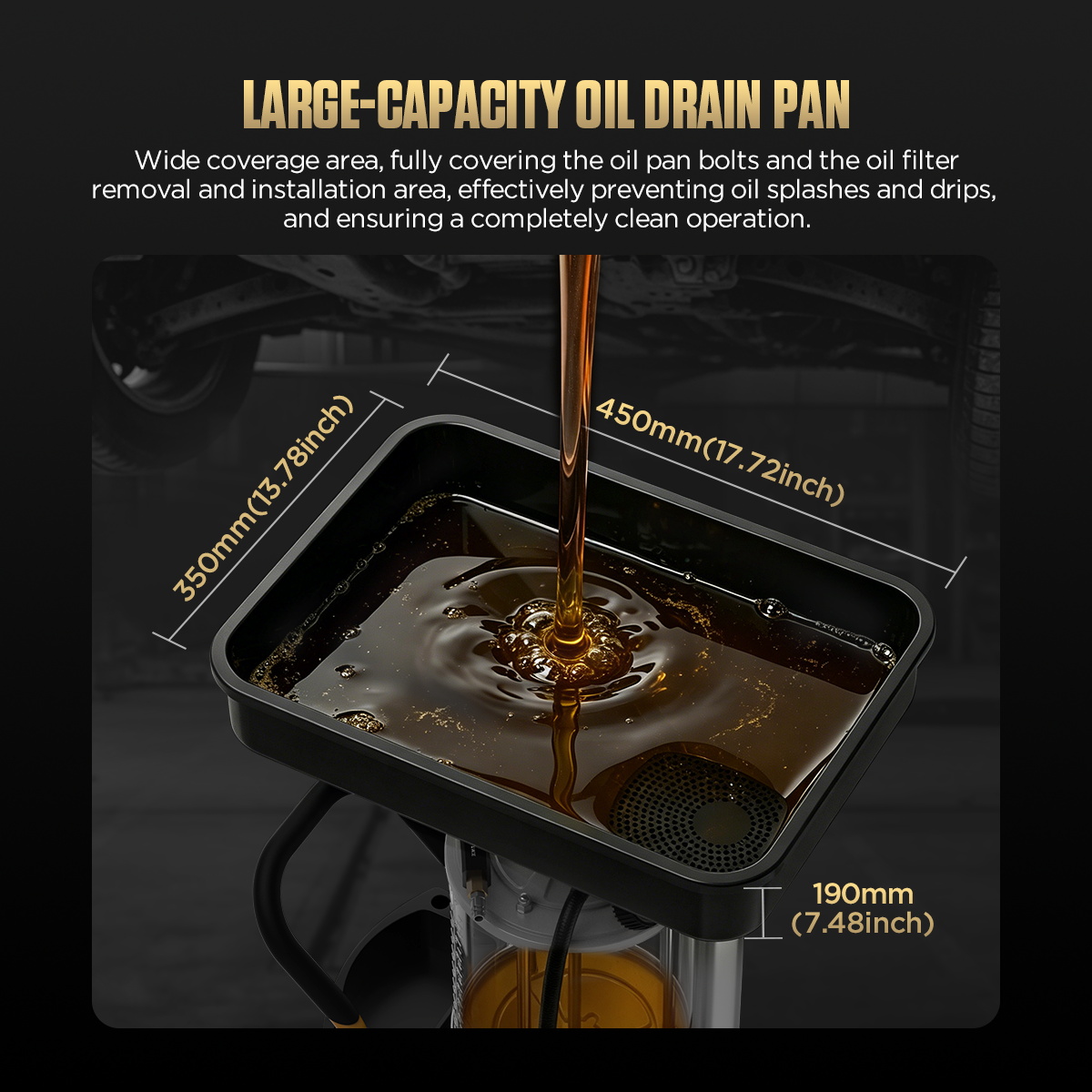

Large Oil Collection Pan:The oversized oil collection pan provides a wide coverage area, fully covering the oil drain plug and oil filter removal area. It effectively prevents oil splashing and dripping, keeping the work environment clean throughout the oil change process.

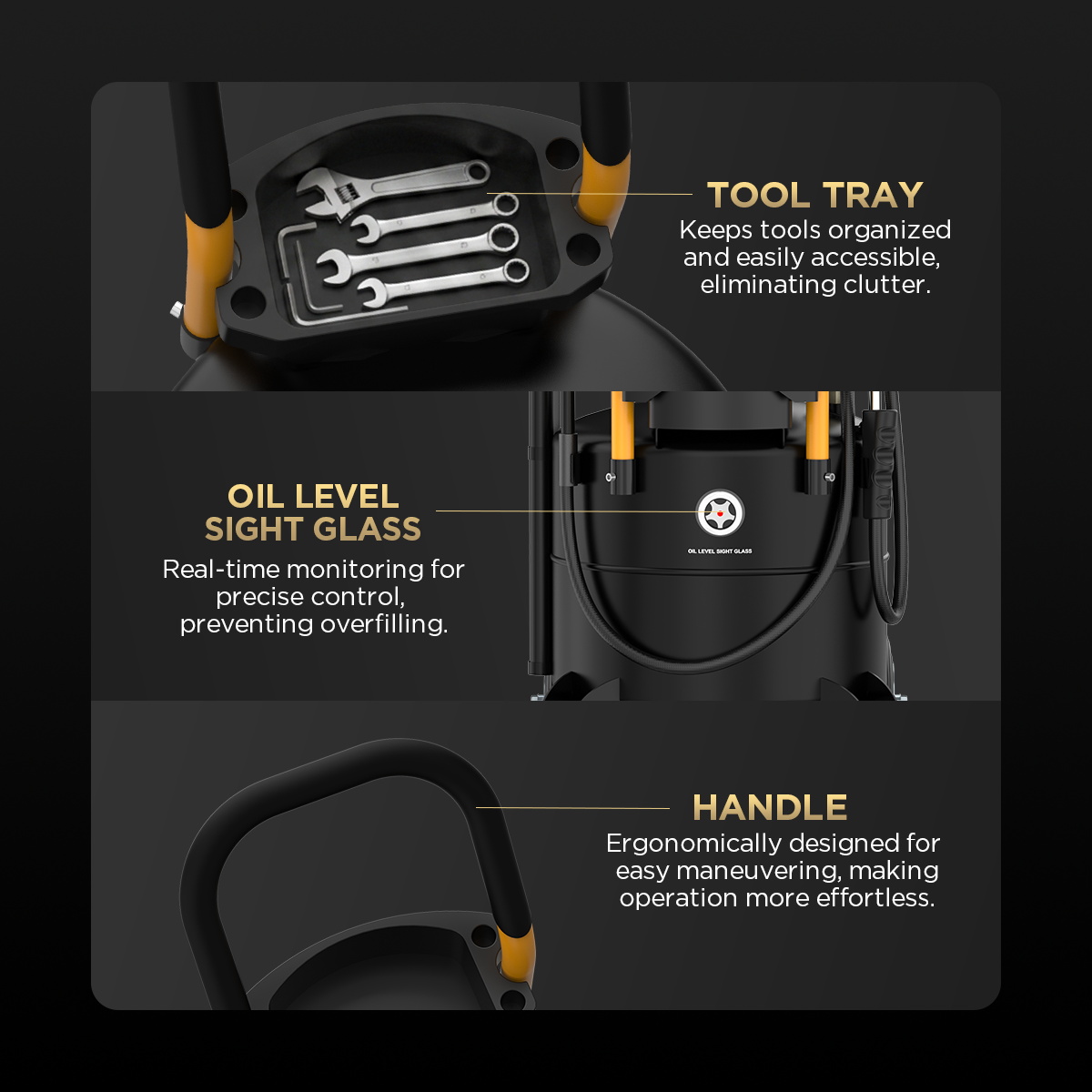

Oil Level Viewing Window:The built-in oil level viewing window allows real-time monitoring of waste oil collection status, making it easy to determine when the storage tank needs to be emptied.

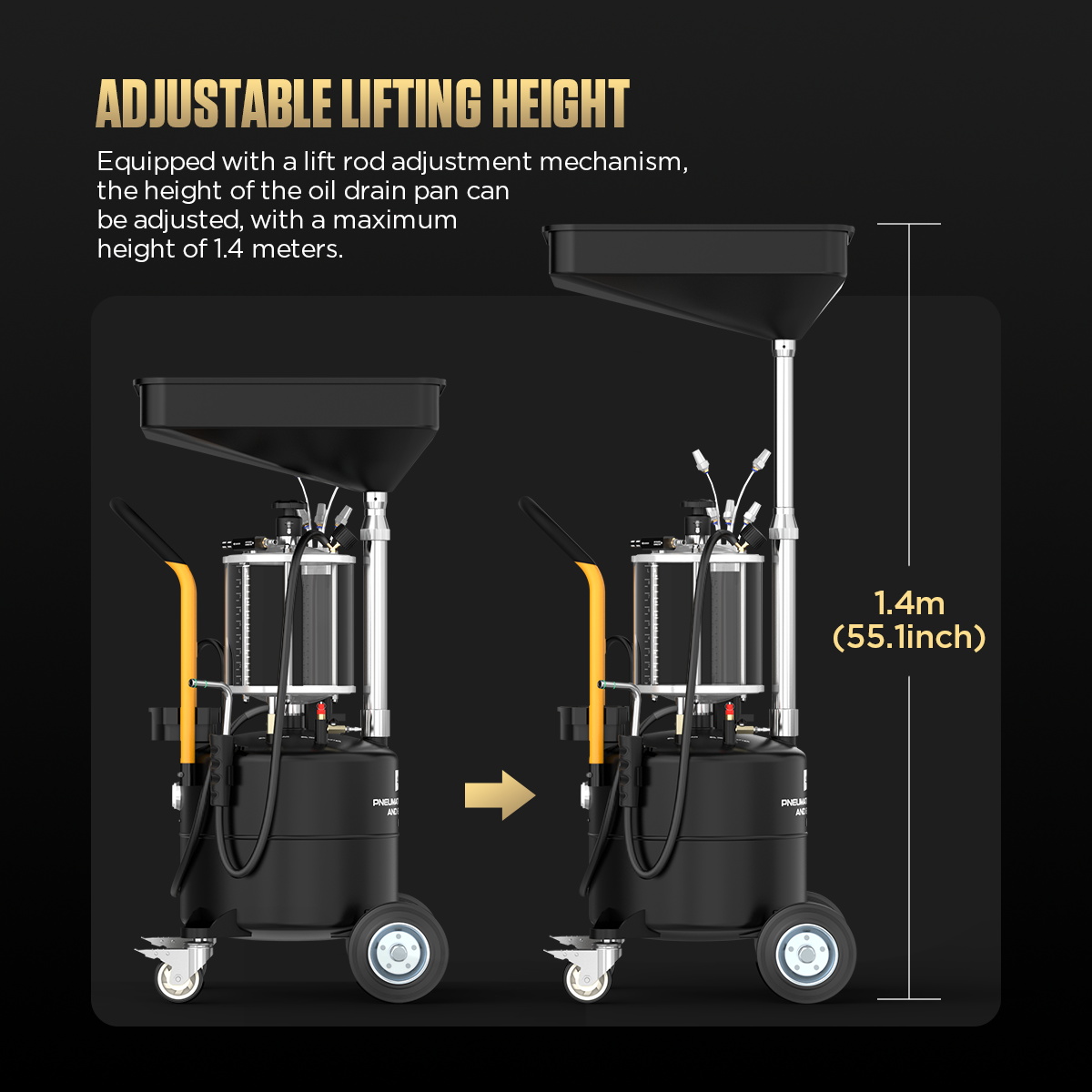

Adjustable Height Lift Rod:The adjustable lift rod allows flexible adjustment of the oil collection pan height, with a maximum lifting height of 1.4 meters, making it suitable for different vehicle maintenance environments.

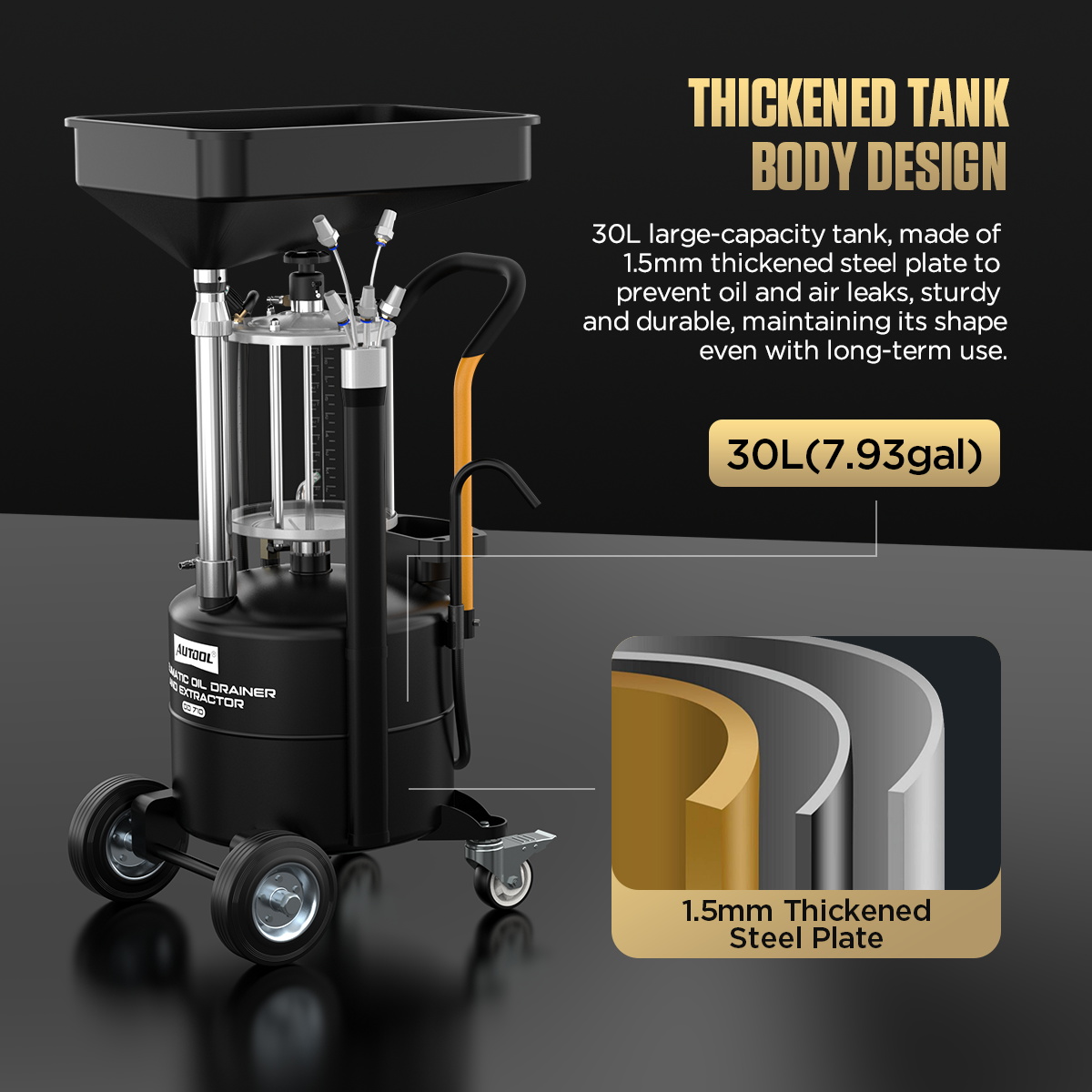

Heavy-Duty Tank Design:The 30L storage tank is constructed with 1.5mm thick steel plates, providing excellent durability and preventing oil or air leakage. The robust design ensures long-term reliable use without deformation.

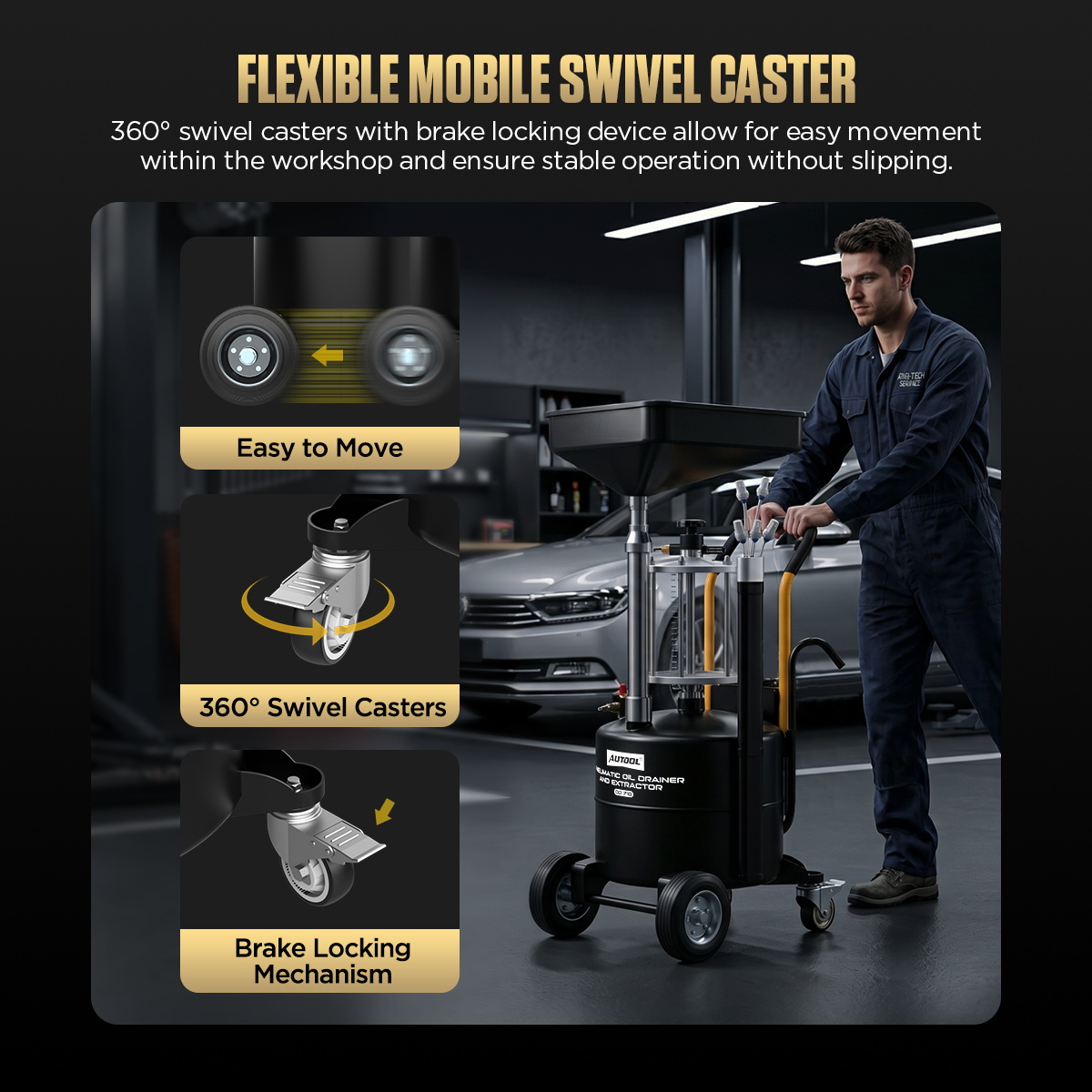

Flexible Mobility with Lockable Casters:The 360° swivel casters with brake locking function allow easy movement around the workshop while keeping the unit stable during operation.
AUTOOL OD710 Pneumatic Oil Extractor Operation Instructions
Installation:
1.Secure the lifting rod and oil collection pan by rotating clockwise.
2.After installation, make sure the lifting rod is positioned vertically relative to the unit.
3.Adjust the height of the lifting rod and oil collection pan. Rotate the adjustment knob counterclockwise to loosen, adjust to the desired height, then rotate clockwise to tighten.
Waste Oil Collection:
1.Raise the vehicle to an appropriate working height using a lifting device.
2.Move the unit under the vehicle in a safe working environment and align the oil collection pan with the engine oil drain plug.
3.Remove the engine oil drain plug.
4.Used oil will flow from the engine into the collection pan and then into the storage tank.
