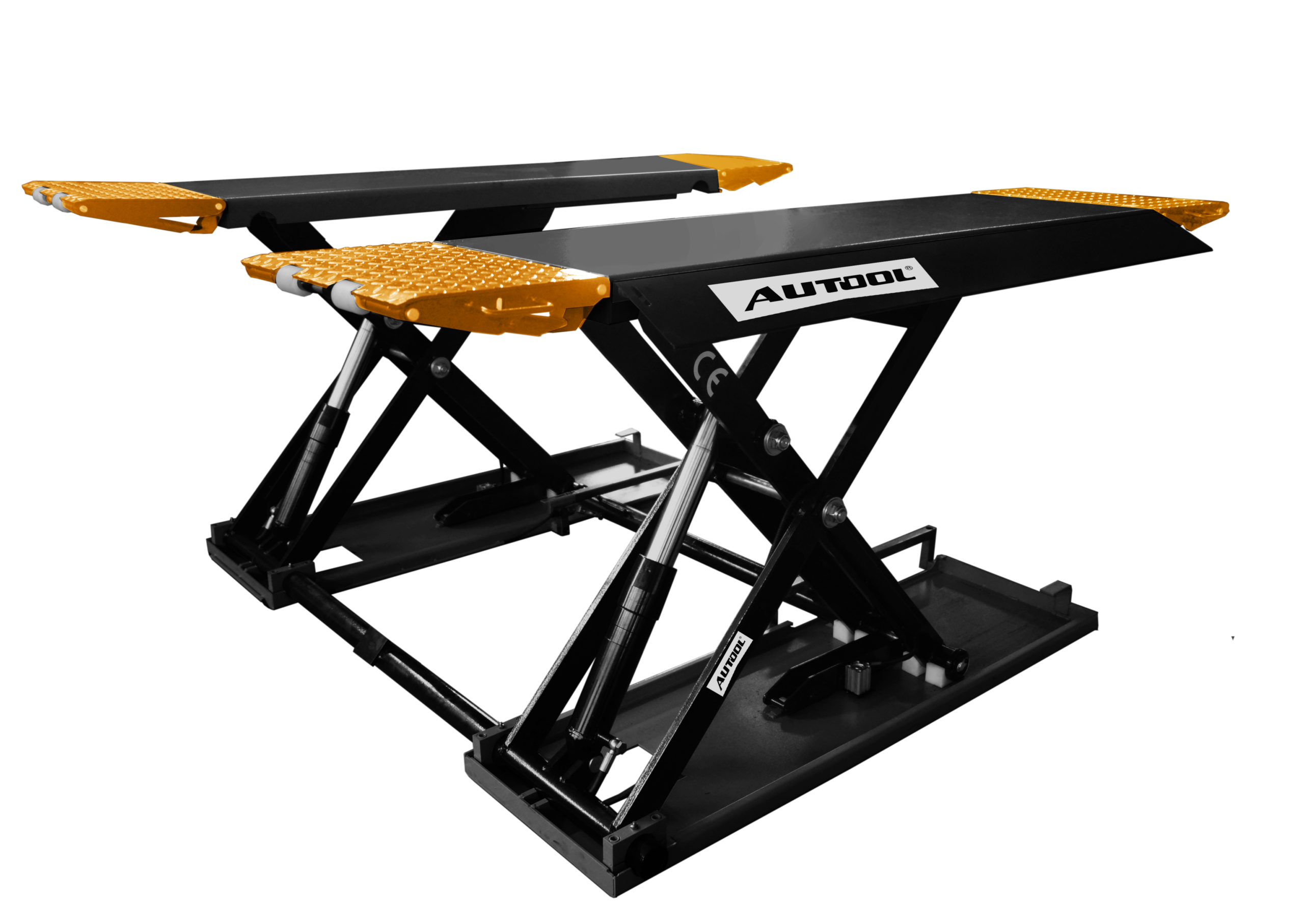

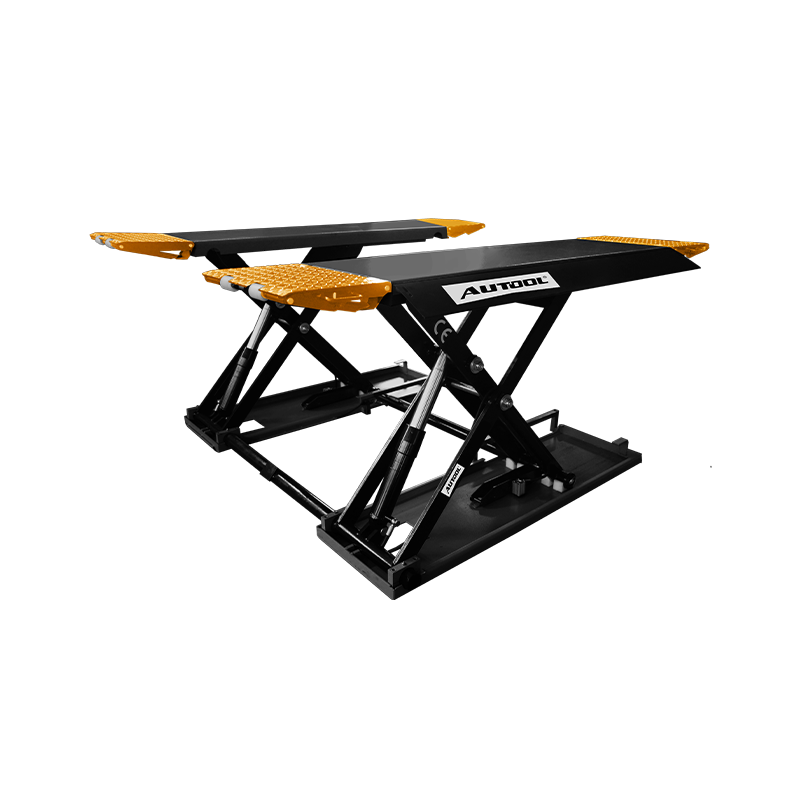

ATL-4SM 4-Ton Low-Profile Mobile Scissor Lift

Designed for workshops without pit excavation capabilities, rental facilities, or space-limited service locations, this 4-ton low-profile surface-mounted scissor lift provides a practical ground-installation solution. With a 105 mm minimum height, extended platform, and higher lifting range, it is suitable for SUVs, heavier vehicles, and long-wheelbase models.

  • image 0

Features：

Direct ground installation reduces the need for civil construction work.

4000 kg lifting capacity and 1250 mm lifting height provide excellent support for larger vehicles.

Automatic mechanical locking; standard pneumatic release, with electric release available as a customized option.

Reinforced hydraulic cylinders, central linkage synchronization, self-lubricating bearings, and corrosion-resistant powder coating ensure durability and stable operation.

ATL-4SM
Parameter Specification
Rated Lifting Capacity 4000 kg
Lifting Height 1250 mm
Platform Length 1570-2175 mm
Platform Width 535 mm
Minimum Height 105 mm
Motor 380V / 220V / Other options, 3 kW
Air Supply Pressure 0.4-0.6 MPa
Lock Release Standard pneumatic release; electric release optional
