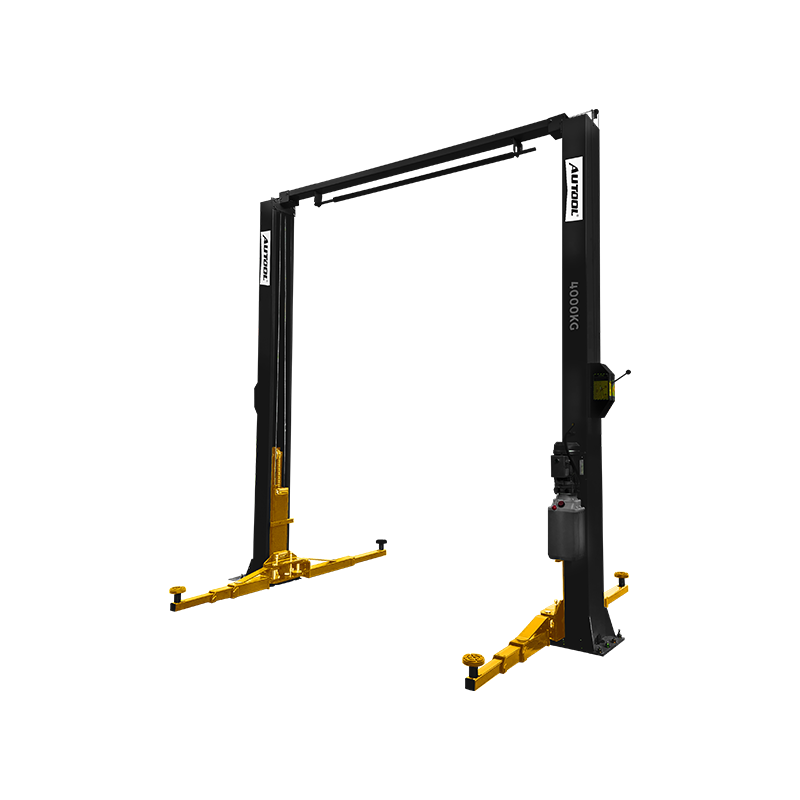

ATL-4D 4-Ton Standard Gantry Lift

The AUTOOL ATL-4D 4-Ton Standard Gantry Lift solution designed for professional repair shops. Featuring single-side synchronized safety lock release, chain-free hydraulic direct drive, and open under-vehicle working space, it is suitable for servicing SUVs, vans, pickup trucks, and light commercial vehicles.

  • image 0

Product Features

Single-side operation synchronously releases both post safety locks, reducing the risk of misoperation.

Dual hydraulic cylinder chain-free direct drive with steel cable synchronization ensures smooth and stable operation.

Rack-type mechanical locks and hook-type safety locks provide reliable physical protection.

Laser-cut steel components, CNC-machined cylinders, and self-lubricating wear-resistant sliders deliver durability with low operating noise.

ATL-4D
Rated Lifting Capacity 4000 kg
Minimum Height 105 mm
Maximum Lifting Height 1845 mm
Raising / Lowering Time 50 s / 30 s
Overall Height 3700 mm
Clearance Between Posts 2860 mm
Overall Width 3440 mm
Motor 380V / 220V / Other options, 2.2 kW
