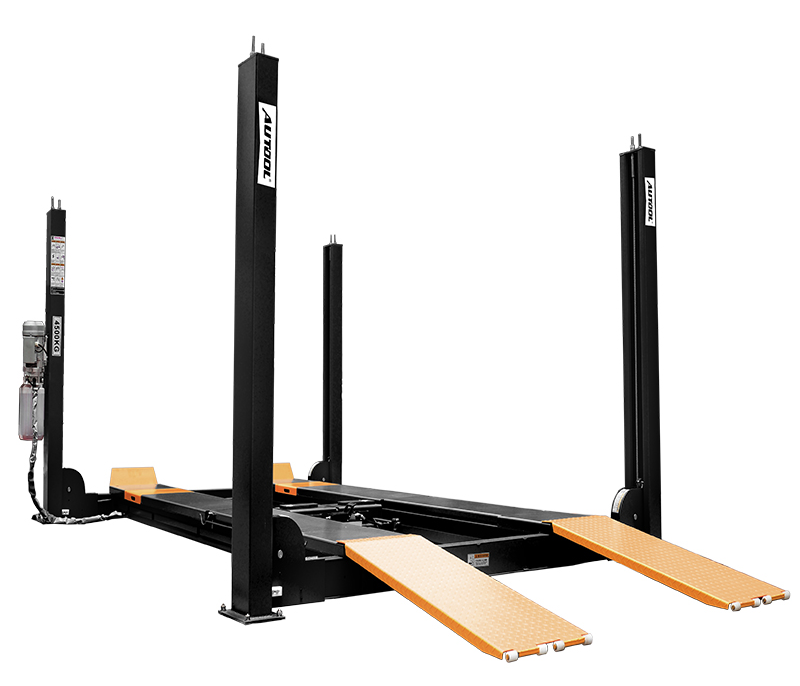

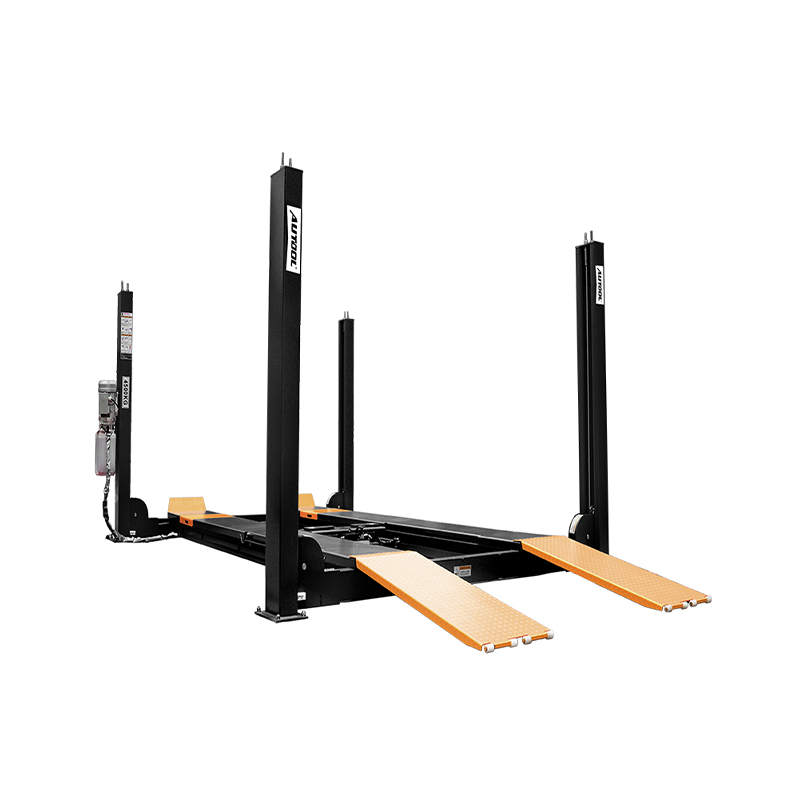

ATL-4.5F 4.5-Ton Four-Post Wheel Alignment Lift

A 4.5-ton four-post lift designed for four-wheel alignment, vehicle inspection, basic maintenance, and stable vehicle support. The drive-on platform provides intuitive operation, and the standard secondary lifting jack makes it ideal for alignment bays and comprehensive repair workshops.

  • image 0

Product Features

  • Four-post structure and solid steel X-frame provide stable load-bearing performance.
  • Manual/automatic lock release versions are available; the automatic version unlocks automatically during lowering.
  • Steel cable break protection and European-standard fully automatic control box.
  • Standard 2-ton secondary lifting jack included; industrial-grade wireless remote control available as an option.
Parameter Specification
Main Lift Capacity 4500 kg
Main Lift Range 210-1700 mm
Secondary Lift Capacity / Height 2000 kg / 480 mm
Overall Height 2218 mm
Clearance Between Posts 2830 mm
Motor 220V / 380V, 2.2 kW
Air Supply Pressure 0.6-0.8 MPa
Drive System Steel cable-driven electro-hydraulic system
Platform Reference Standard 4.5-ton model platform length: 4.5 m
