Working Principle

AUTOOL AST612 Brakde Fluid Exchanger Brake Fluid Bleeder Kit is pumped from the new fluid container into the vehicle’s brake fluid reservoir at a specified pressure, while the used fluid is drained from each wheel caliper in sequence until clean fluid flows out. Compared with traditional pressurized bleeders, this automotive brake fluid bleeder effectively prevents air bubble formation during the filling process and eliminates the need for manual bleeding. Its built-in pressure monitoring system automatically detects pressure levels and shuts off the pump if pressure cannot be generated or air is drawn in, ensuring no air enters the brake fluid reservoir.

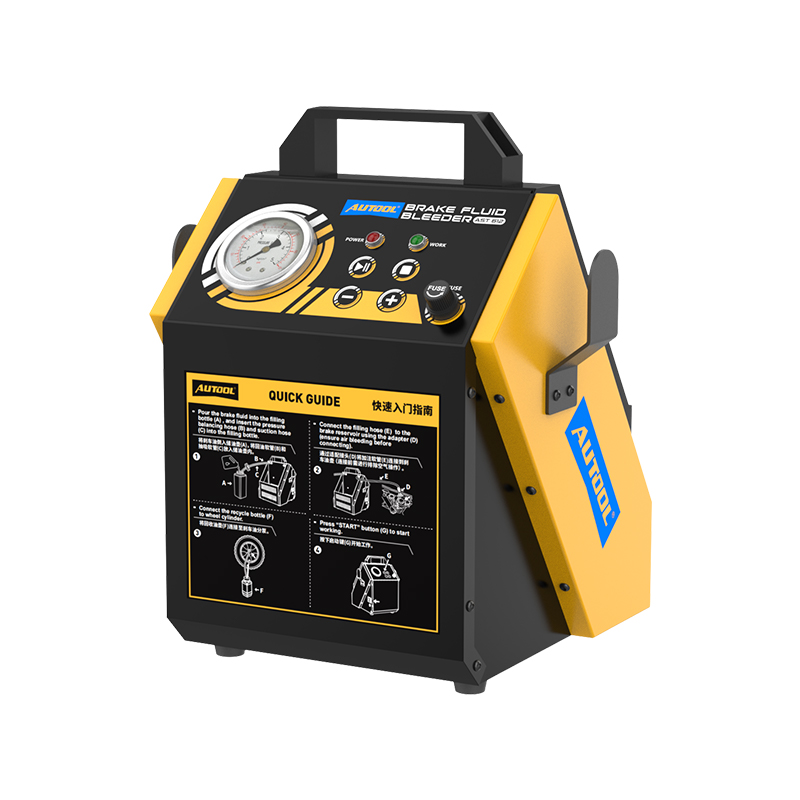

AUTOOL AST612 Pulsating Brake Fluid Exchanger Features

Adopts Pulsating Exchange Technology: AST612 Brake Fluid Exchanger changes brake fluid in just five minutes.

Can Be Operated By a Aingle Person: Saving a lot of operating time and labor costs.

Powered By 12V: AUTOOL AST612 Brake Fluid Exchanger Machine no need to use an external power source, just connect the car battery.

Portable Design: the machine is only 4.2kg, which makes it easy to transfer to other locations during work.

Simultaneous Two-wheel Oil Change: Equipped with two waste oil bottles, it can change the brake fluid of two tires at a time, which improves efficiency.

Equipped With 9 Types Of Adapters: To adapt to many different car models in Europe, America, and Asia.

Pressure Release Function: AST612 brake fluid bleeder automatically releases the pressure after completing the replacement to prevent the brake fluid from splashing.

Operating Instructions

Step 1: Add new brake fluid into the storage bottle.

Step 2: Connect the suction hose and pressure balancing hose to the storage bottle.

Step 3: Connect to a 12V battery.

Step 4: After connecting the filling hose to the appropriate adapter, connect it to the vehicle’s brake fluid reservoir.

Step 5: Attach the recovery oil bottle to the brake cylinder.

Step 6: Turn on the power switch & press the start button to begin.

Note: No need to start the vehicle for the operation.

Please check each connection for leaks during the oil change and inspect the connecting hose for damage to keep the new oil filler port clean.
