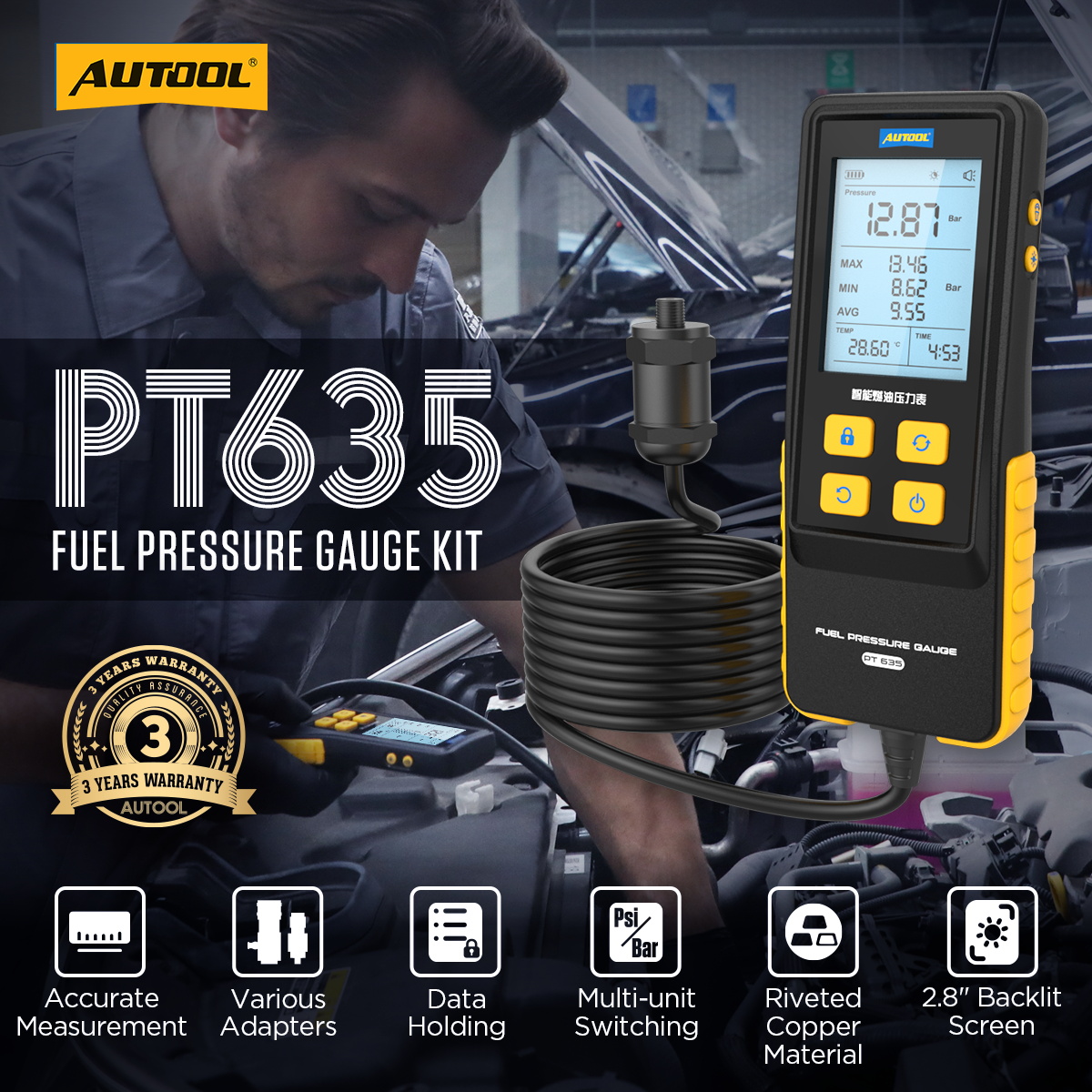

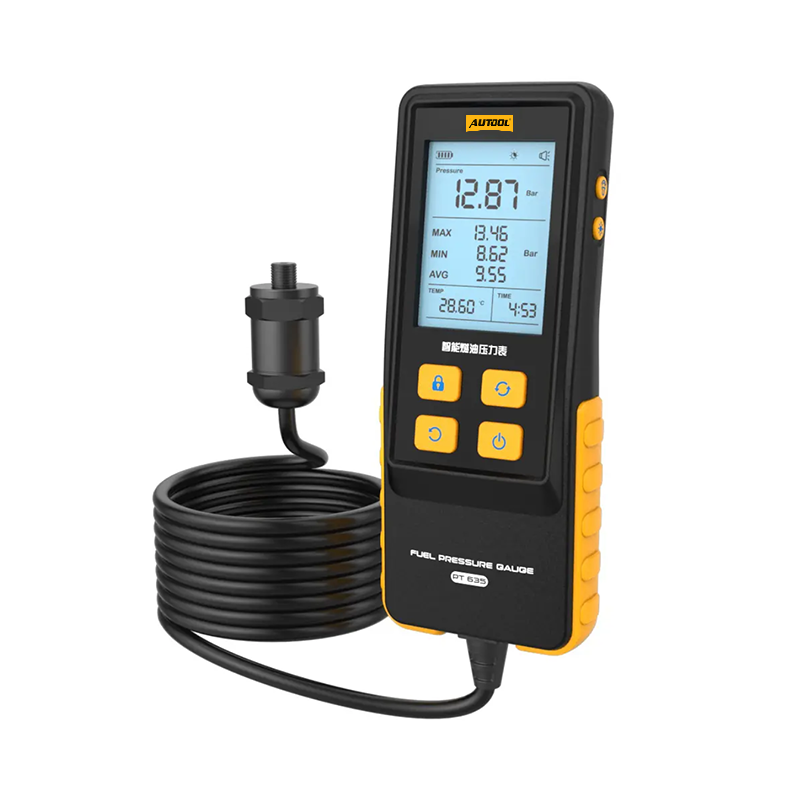

PT635Fuel Pressure Gauge(Hight-end Version)

AUTOOL PT635 Fuel Pressure Gauge Features

Precision Measurement Technology: Combines broad measuring capacity with high precision, delivering readings accurate to the hundredth decimal place for detailed analysis.

Durable Construction: Utilizes corrosion-resistant riveted copper fittings for reliable connections, paired with an extra-long reinforced rubber hose engineered to resist pressure, temperature extremes, and twisting.

Enhanced Visual Interface: Features a 2.8-inch backlit HD display optimized for low-light environments. Test results are presented in organized line format, enabling quick comprehension of critical data.

Intelligent Data Handling: Features data locking and clearing functions, allowing users to lock displayed readings for convenient recording and clear measurement data when needed.

Multi-Function Gauge System: The 2.8-inch backlit screen offers 0.01 resolution for real-time pressure, average pressure, fuel temperature, and elapsed time tracking.

Three-year warranty: For damages caused by non-human factors, AUTOOL promises to provide free replacement parts within three years. If you have any requests, please feel free to contact us, and we will respond promptly within 24 hours.

Operating Instructions

Step 1: Disassemble the engine fuel pipeline interface.

Step 2: Connect adapter for vehicle model to measuring probe.

Step 3: Reset the pressure value to zero before testing.

Step 4: Connect the measuring probe to the engine.

Step 5: Start the engine.

Step 6: Pressure gauge displays measured pressure.
